80/188 Installation
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04

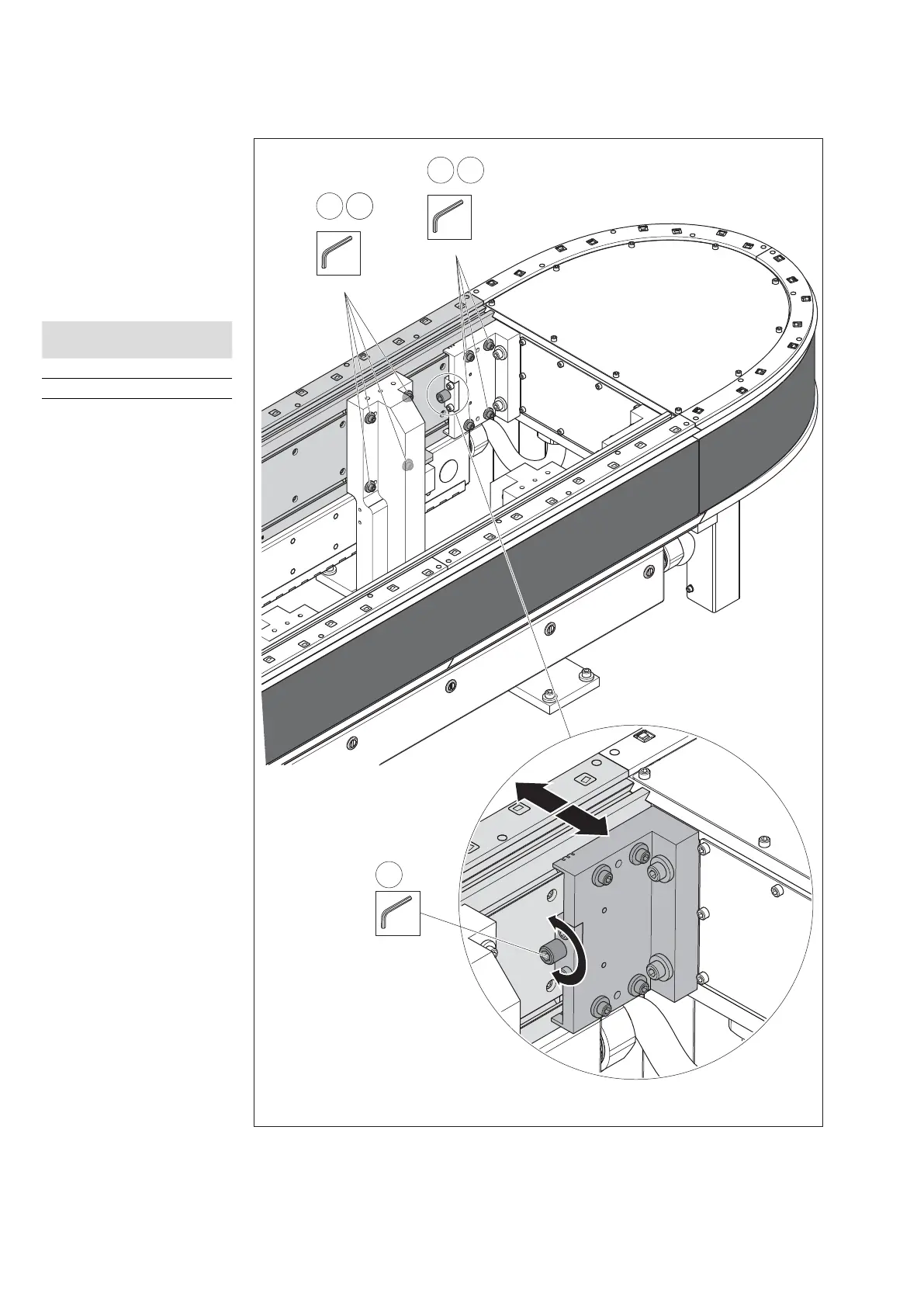

Fig. 57:
557 186-124
2
4x
M
D
=16 Nm
24
4x
SW5 SW5
2
2
4x
M
D
=16 Nm
4x
SW5 SW5
1 4
3
SW6
Setting the lateral offset ≤ ±0.05 mm, section module to curve module
1. Loosen the upper fi xing
screws of the module
holder.
2. Loosen the fi xing screws
of the profi le connector.
3. Set the setting screw of
the adjustment unit until
the guide rails are fl ush.
Rotational
direction
Adjustment
Right inward
Left outward
4. Tighten the fi xing screws
of the module holder
and profi le connectors
and tighten the setting
screw.
