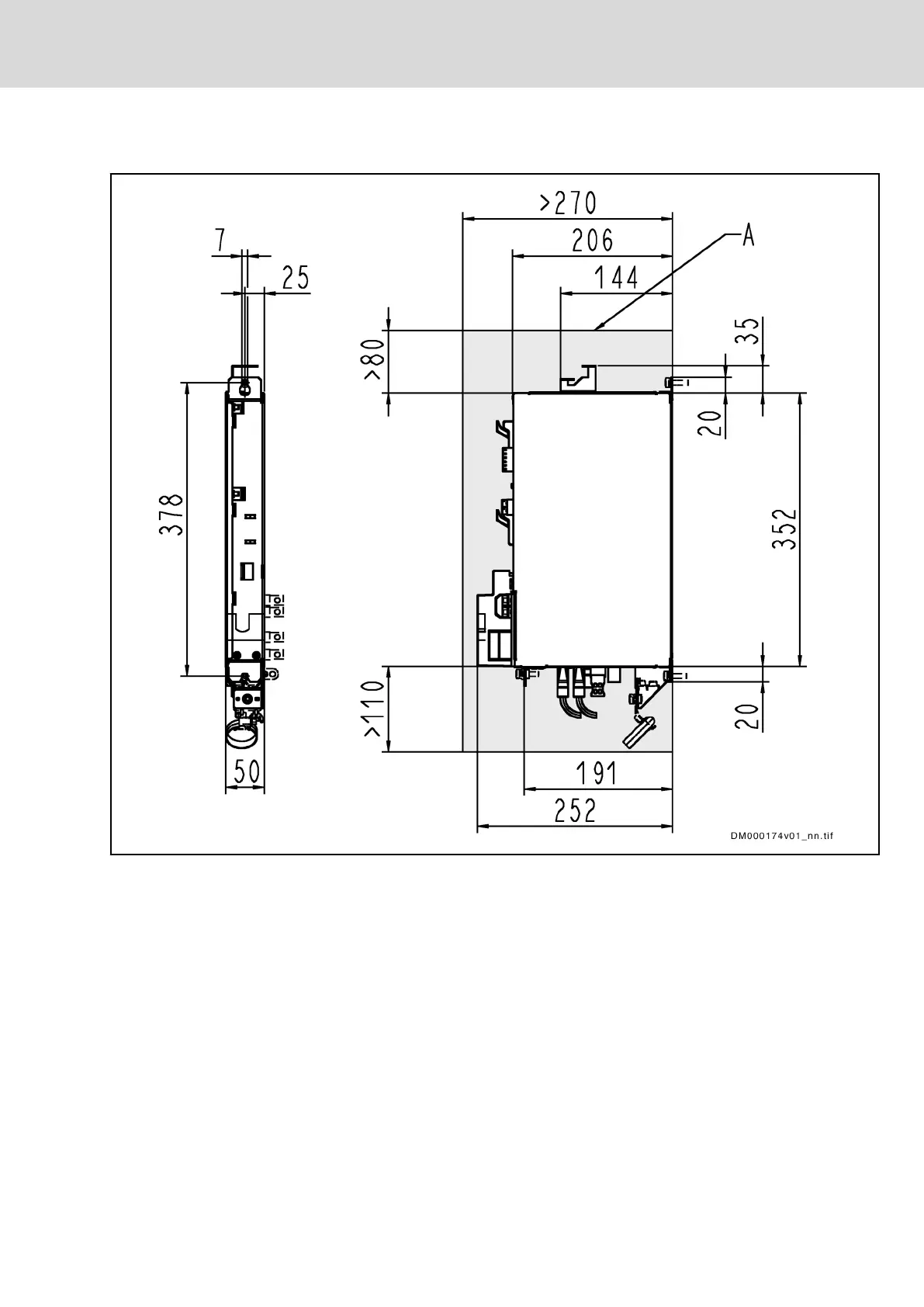

5.4.3 KCU02 dimensional drawing
A Minimum mounting clearance
Fig. 5-23: Dimensions
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
89/407
