10.8.2 HAS05.1-021-NCN-NN

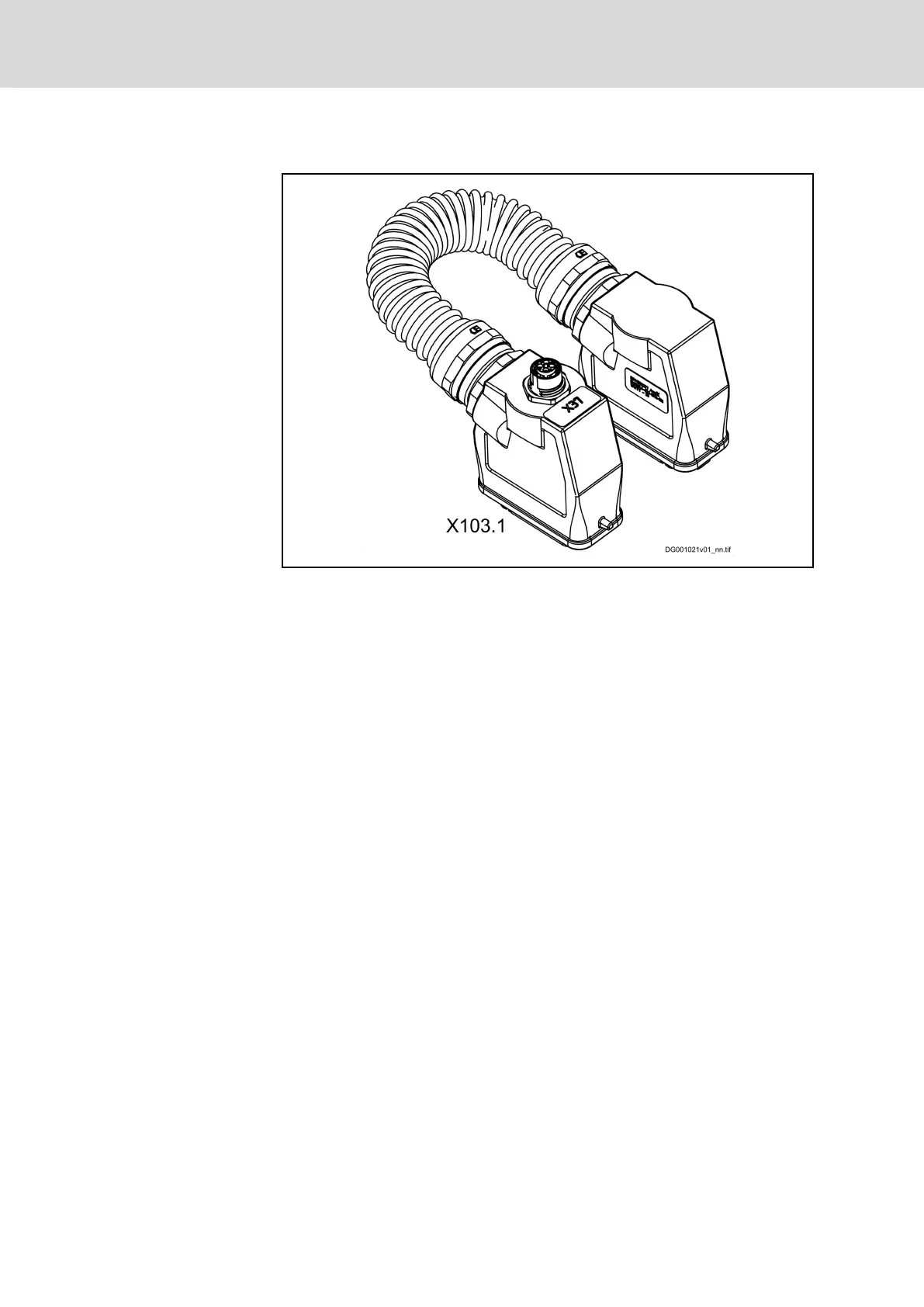

Fig. 10-7: HAS05.1-021-NCN-NN, hybrid joint with 42 V connection (X37)
The accessory is a very short hybrid cable and connects two devices
mounted side by side.
● Hybrid cable with communication
● Distance, connector center – connector center: 62 … 87 mm
● Degree of protection IP65
● M12 female connector (X37) to connect an additional 42 V power supply
– Control voltages galvanically isolated between the zones before
and after the accessory
– Allowed current: 15 A
– Degree of protection: IP65
– External power supply required (42 V
DC
, ±10%; e.g., PULS
"CPS20.361" (100‑240 V, 480 W) or "QT20.361" (380‑480 V,
480 W)
● Material number: R911392277
The accessory allows the drive line to be expanded by more components, if
one of the following conditions applies:
● Power of the DC/DC converter (24V/42V) in KCU or KMV has already
been used to capacity (e.g., due to many motors with integrated holding
brakes)
● Voltage drop on the control voltage lines in the hybrid cable has reached
its allowed limit (e.g., due to long cables)
308/407
Accessories
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
