10.16 RKB0044, Communication Cable

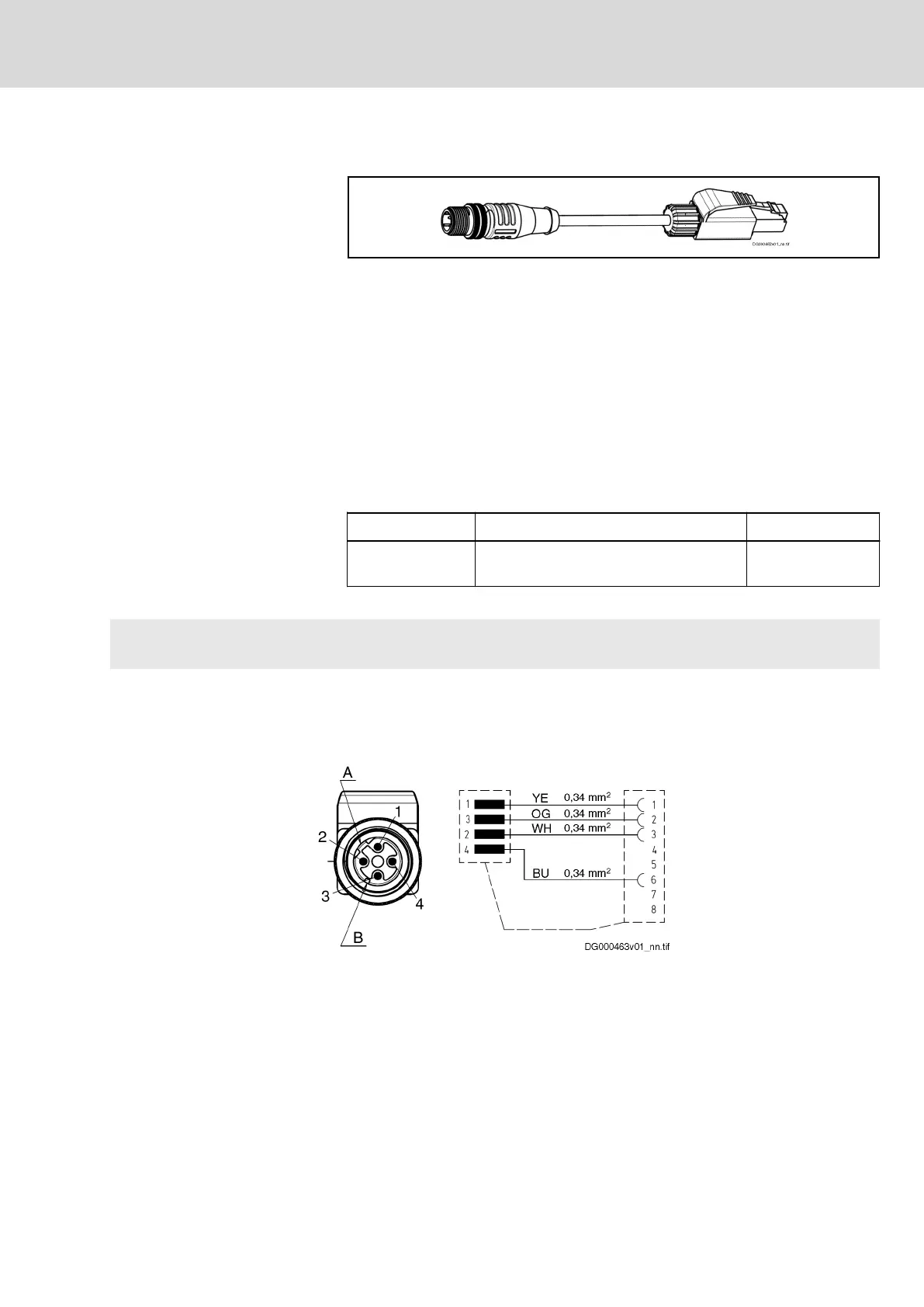

Fig. 10-24: RKB0044
Assignment
1. For devices with communication output coupling: The cable connects
the other communication nodes via the connection points X108 and
X109.
2. The cable connects the terminal connector RHS0014 to the following
components:
● Another KCU
● Other communication nodes
● A higher-level control unit
Length That Can Be Ordered, Or‐
der Code, Material Number
Length Order code Material number
To be freely
selected
RKB0044/xxx,x (xxx,x = length in meters) R911172135
Tab. 10-22: RKB0044
RKB0044
Plug-in connector Bulk cable Plug-in connector
M12, 4-pin, male,
D‑coded
Bus cable (REB400) RJ-45
Interconnection diagram
A: Coding groove; B: Coding nose
Tab. 10-23: Parts RKB0044
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
329/407
Accessories
R911335703_Edition 04 Bosch Rexroth AG
