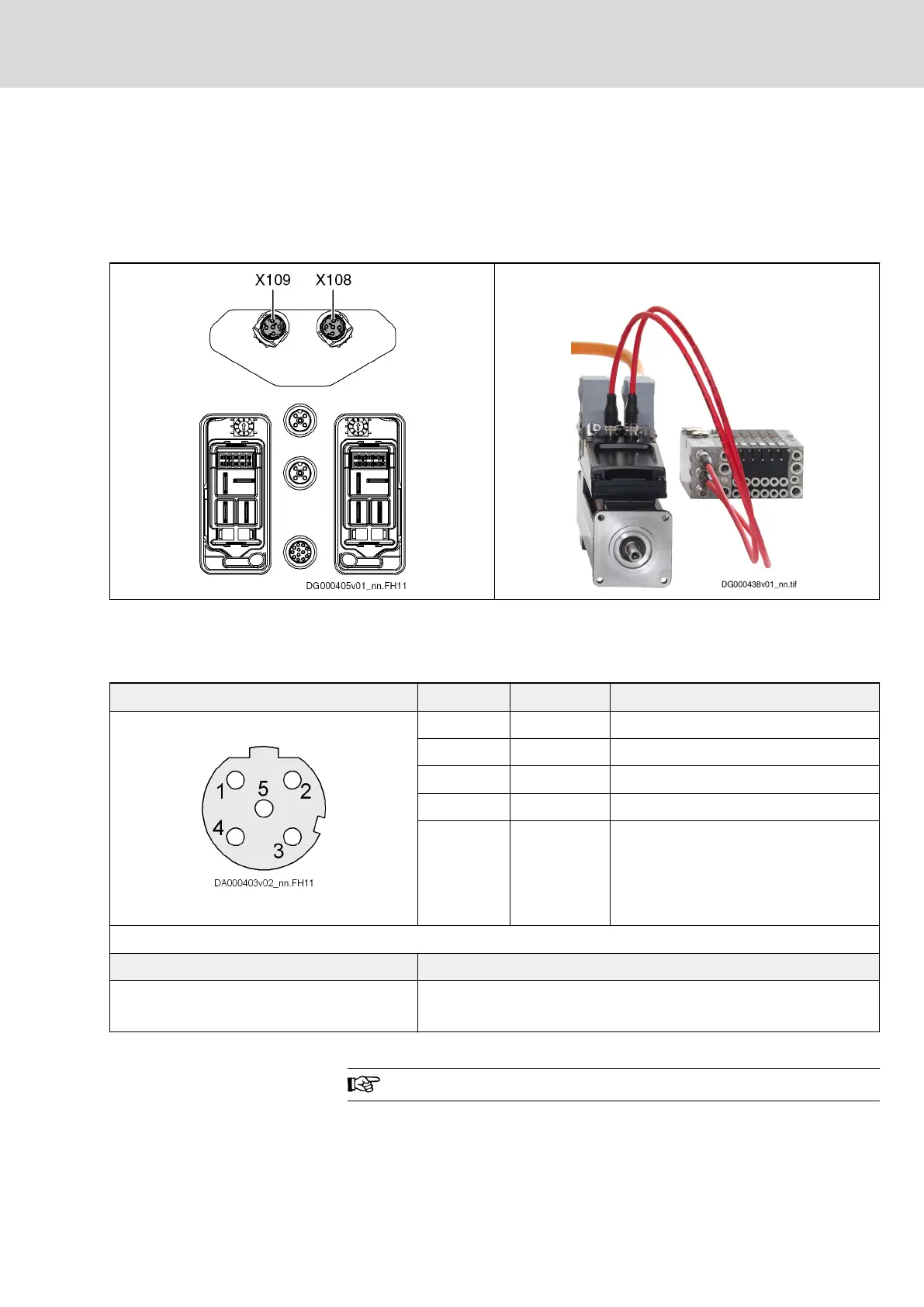

6.3.5 X108, X109, communication output coupling
The optional connection point X108/X109 is an additional Multi-Ethernet
interface used to connect components with Ethernet-based communication
(Sercos, PROFINET IO, EtherNet/IP, EtherCAT, POWERLINK) in distributed
form.
Example of connection:
Tab. 6-23: Communication output coupling
X108, X109
View Connection Signal name Function
1 Tx+ Transmit, Differential Output A
2 Rx+ Receive, Differential Input A
3 Tx- Transmit, Differential Output B
4 Rx- Receive, Differential Input B
5 Shield Shield connection
(Only use shielded cables for which the
shield has been connected to ground
over the largest possible surface area via
the housing.)
Female connector M12 (5‑pin, D‑coded)
Ready-made connection cable ● RKB0043 (M12 → M12)
● RKB0044 (M12 → RJ-45)
Tab. 6-24: X108, X109; function, pin assignment, properties
Do not use angled connectors at the connection points.
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
167/407
Connection points
R911335703_Edition 04 Bosch Rexroth AG
