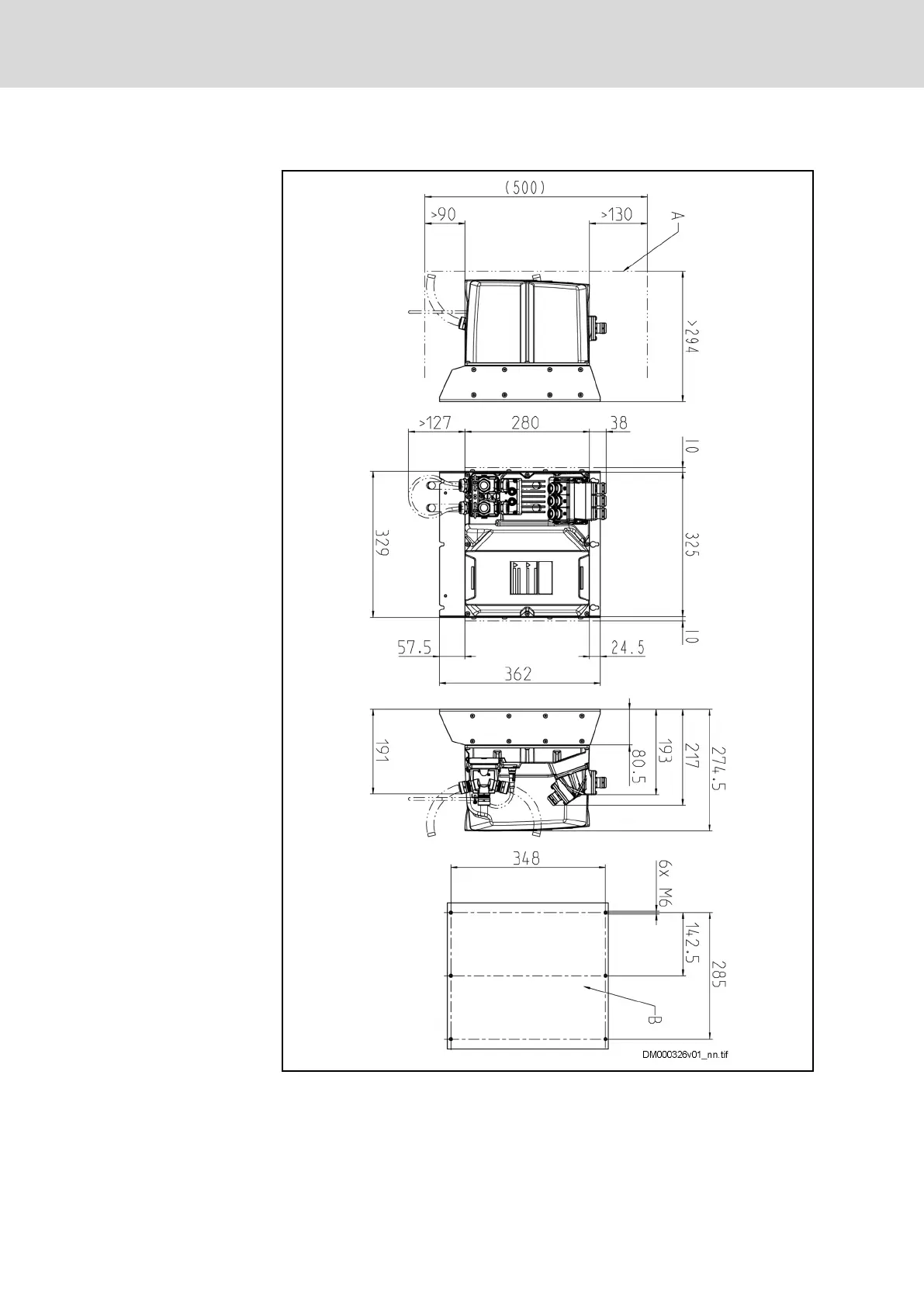

KMV03.1R-Axxxx dimensional drawing (natural convection)
A Minimum mounting clearance
B Boring dimensions
Fig. 5-25: KMV03.1R-Axxxx (natural convection), dimensions
92/407
Technical data of the components
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
