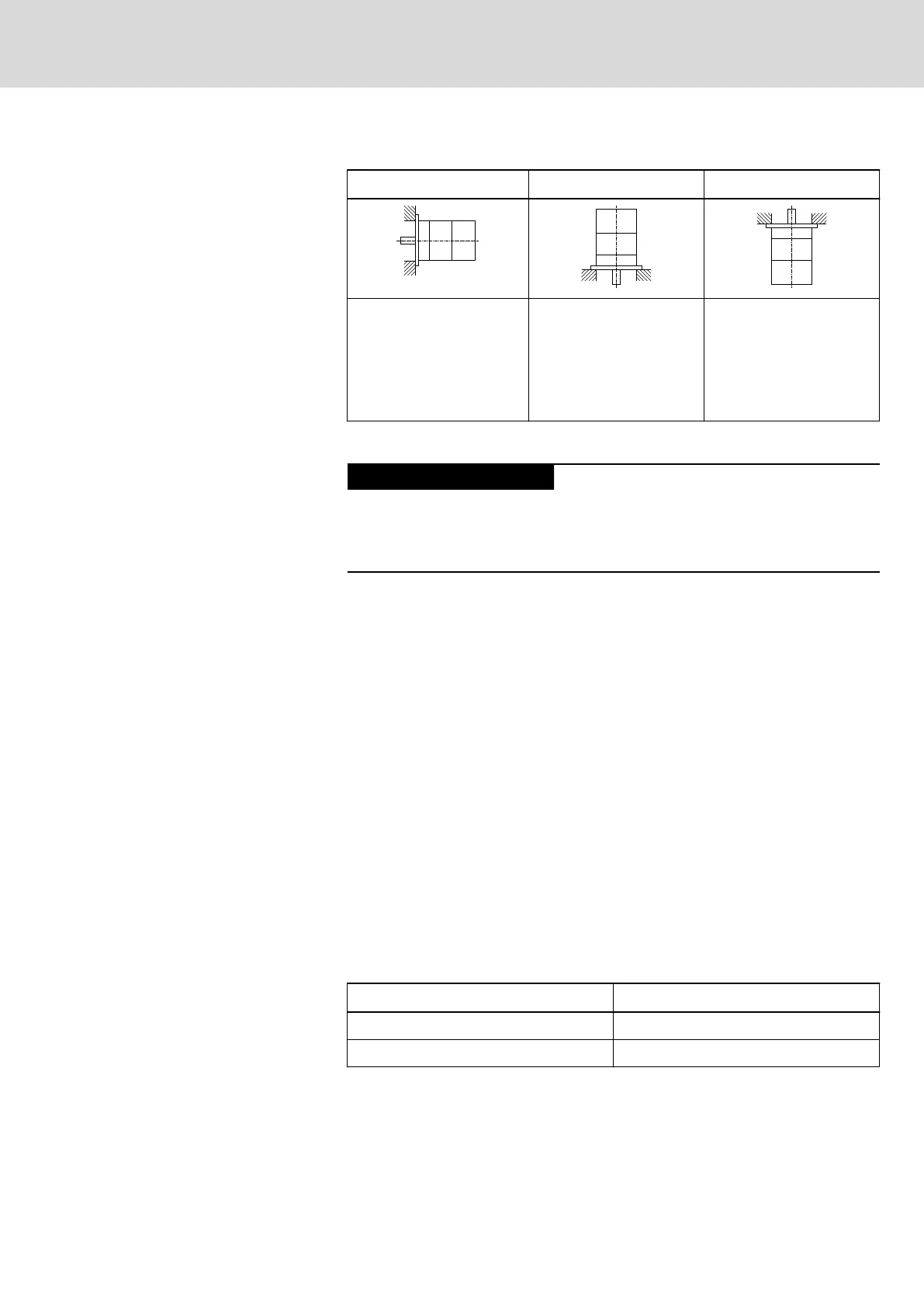

Mounting positions of motor-integrated servo drives
IM B5 IM V1 IM V3
Flange mounting on drive
side of flange
The drive electronics of a
motor-integrated servo
drive can be oriented as
desired.
Flange mounting on drive
side of flange, drive side
bottom
Flange mounting on drive
side of flange, drive side
top
Tab. 4-13: Allowed types of installation according to EN 60034-7:1993
Damage caused by penetration of fluids!
If fluid is present at the output shaft over a prolonged time in mounting
position IM V3, the fluid may enter the housing and cause damage.
Ensure that fluid cannot be present at the output shaft.
4.3.4 Compatibility with foreign matters
All Rexroth controls and drives are developed and tested according to the
state-of-the-art technology.
As it is impossible to follow the continuing development of all materials (e.g.
lubricants in machine tools) which may interact with the controls and drives, it
cannot be completely ruled out that any reactions with the materials we use
might occur.
For this reason, before using the respective material a compatibility test has
to be carried out for new lubricants, cleaning agents etc. and our housings/
materials.
4.3.5 Motor paint
As standard, the motors are black (RAL9005).
4.4 Voltage testing and insulation resistance testing
According to standard, the components of the IndraDrive Mi range are tested
with voltage.
Testing Test rate
Voltage testing 100% (EN 61800-5-1)
Insulation resistance testing 100% (EN 60204-1)
Tab. 4-14: Applied standards
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
59/407
General data and specifications
R911335703_Edition 04 Bosch Rexroth AG
