5.2.5 Bearing load and shaft load
See chapter 7.3 "Notes on mechanical project planning" on page 248 for
further information on
● Allowed radial and axial forces
● Shaft load
● Bearings
Radial force F
radial

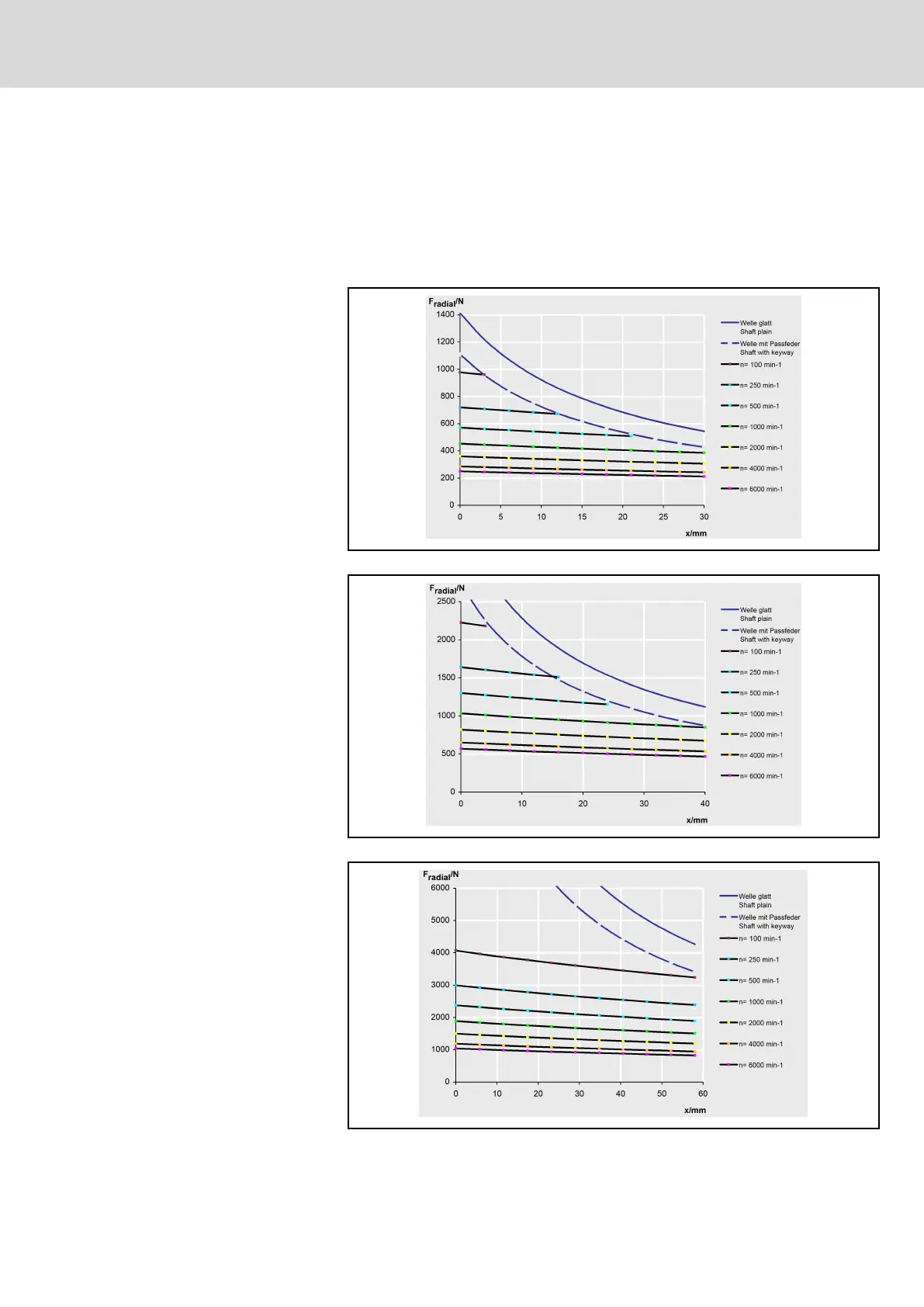

Fig. 5-16: KSM02.1B-041: Allowed radial force (shaft and bearing load)
Fig. 5-17: KSM02.1B-061: Allowed radial force (shaft and bearing load)
Fig. 5-18: KSM02.1B-071: Allowed radial force (shaft and bearing load)
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
79/407
Technical data of the components
R911335703_Edition 04 Bosch Rexroth AG
