Hybrid cable with circular connector
Applies to: RKH0900, RKH0901, RKH0904, RKH0906
Plug-in connector, circular
connector
Bulk cable Plug-in connector, circular
connector
RHS2321/C03 REH0800
RHS2322/C03
1)
RHS0011/C03
2)
RHS0016/C03
3)

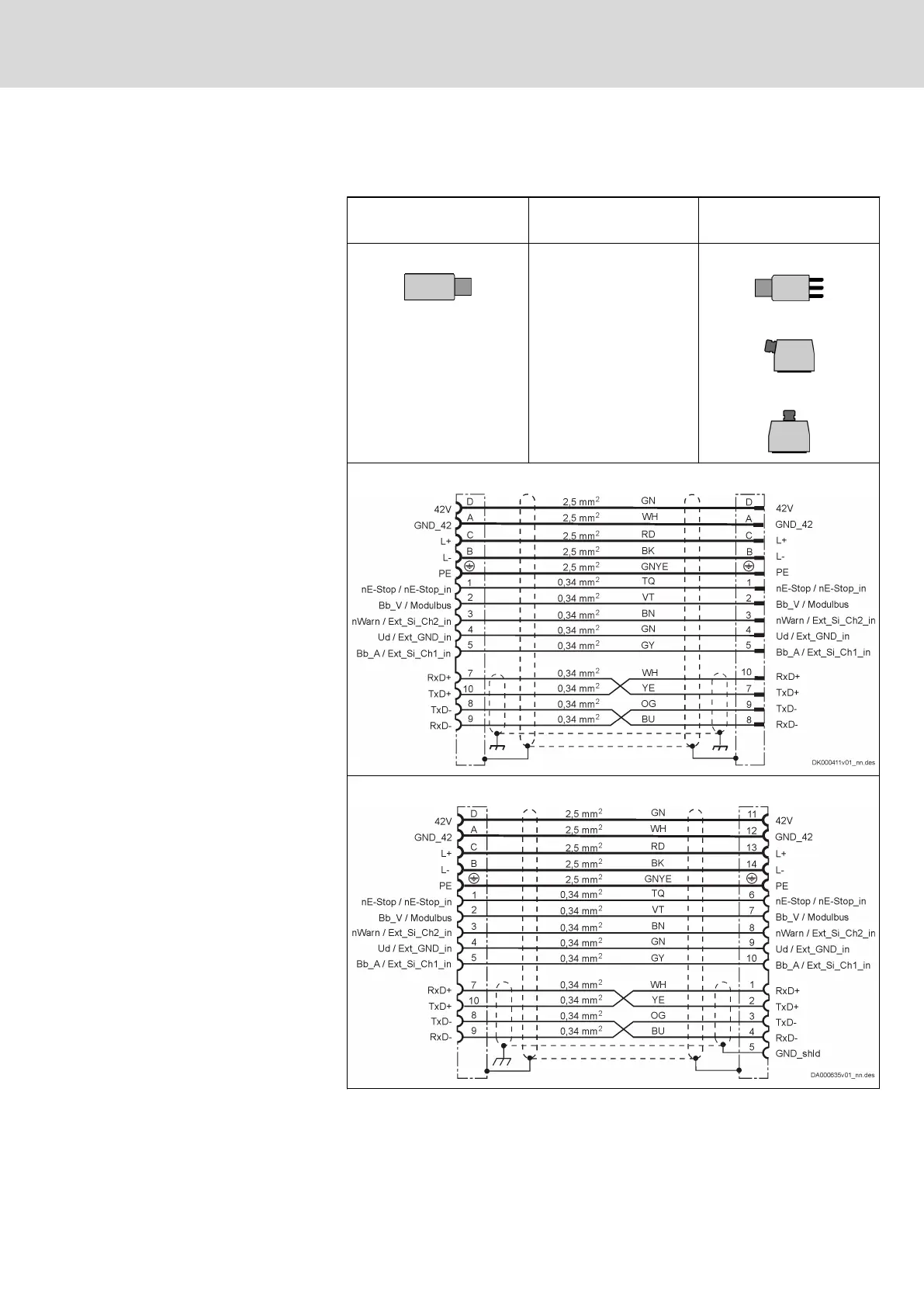

Interconnection diagram (RHS2321 - RHS2322)
Interconnection diagram (RHS2321 - RHS0011/RHS0016)
1) RKH0900
2) RKH0901, RKH0904
3) RKH0906
Tab. 5-28: RKH0900, RKH0901, RKH0904, RKH0906
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
127/407
Technical data of the components
R911335703_Edition 04 Bosch Rexroth AG
