10.11.2 Use
Use
HAS10 Use
HAS10.1-001-001-NN Fixing clip for hybrid cables at devices without
option TO, ES …
HAS10.1-001-002-NN Fixing clip for hybrid cables at devices with
option TO, ES …
HAS10.1-001-003 … 006-NN Mechanical mounting parts for HMU05 universal
inverters.
Further information: See HMU05 Project Planning
Manual.
Tab. 10-13: HAS10
Restricted Usage of the Accessory:
The accessory cannot be used at hybrid cables with a
vertical outgoing direction of the cable from the
connector.
HAS10.1-001-001-NN
The accessory HAS10.1-001-001-NN consists of a fixing clip with a screw.
The fixing clip is screwed to a KSM or KMS and increases the vibration
resistance of the connected hybrid cable connectors.

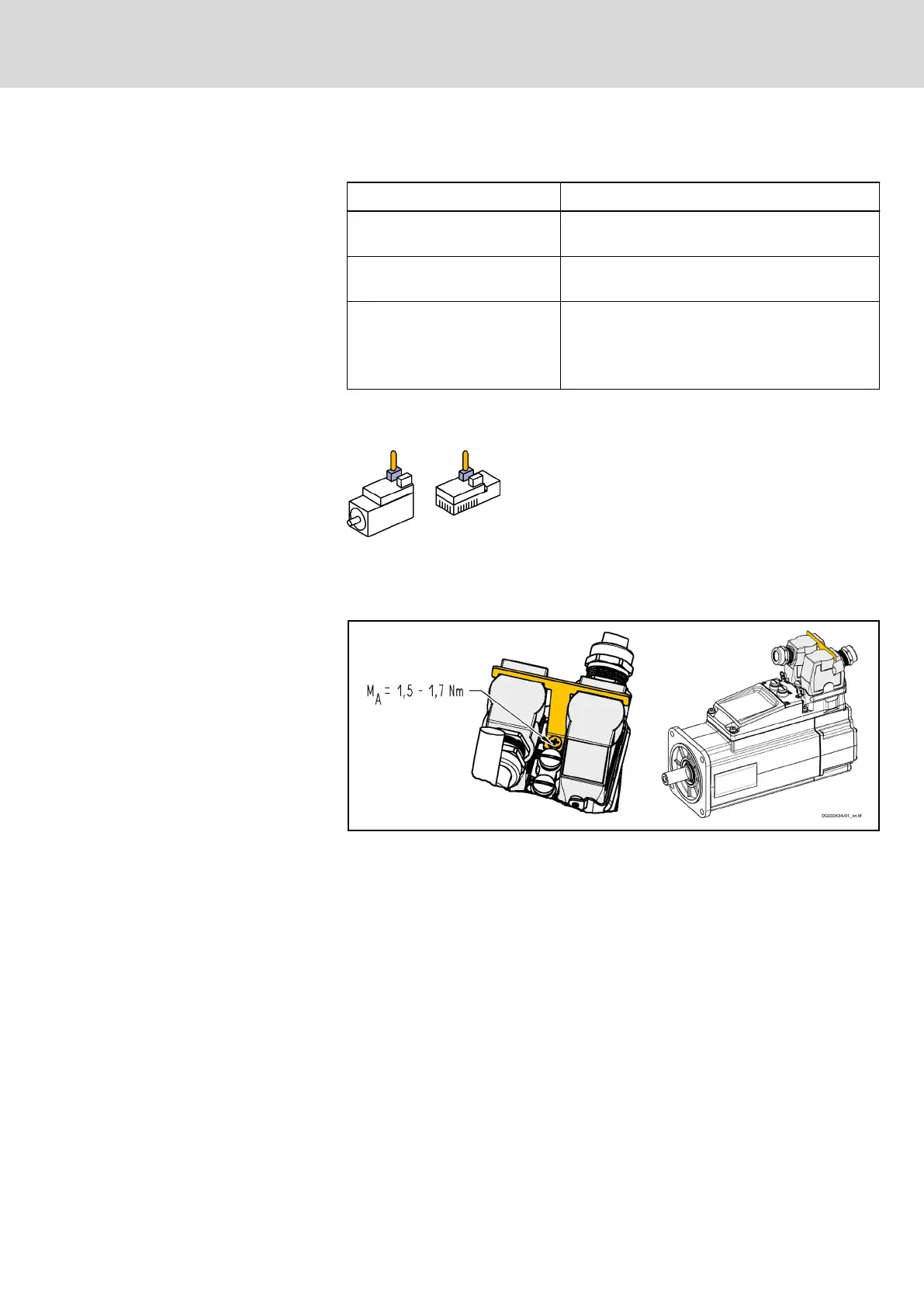

Fig. 10-16: HAS10.1-001-001-NN
HAS10.1-001-002-NN
The HAS10.1-001-002-NN accessory consists of the following parts:
● Fixing clip with screw (tightening torque: 1.5 … 1.7 Nm)
● RKB0043 cable
● Cable tie
The fixing clip increases the vibration resistance of the connected hybrid
cable connectors. The RKB0043 cable is fixed to the fixing clip with 2 cable
ties.
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
321/407
Accessories
R911335703_Edition 04 Bosch Rexroth AG
