6.7.4 XD1.2, supply unit

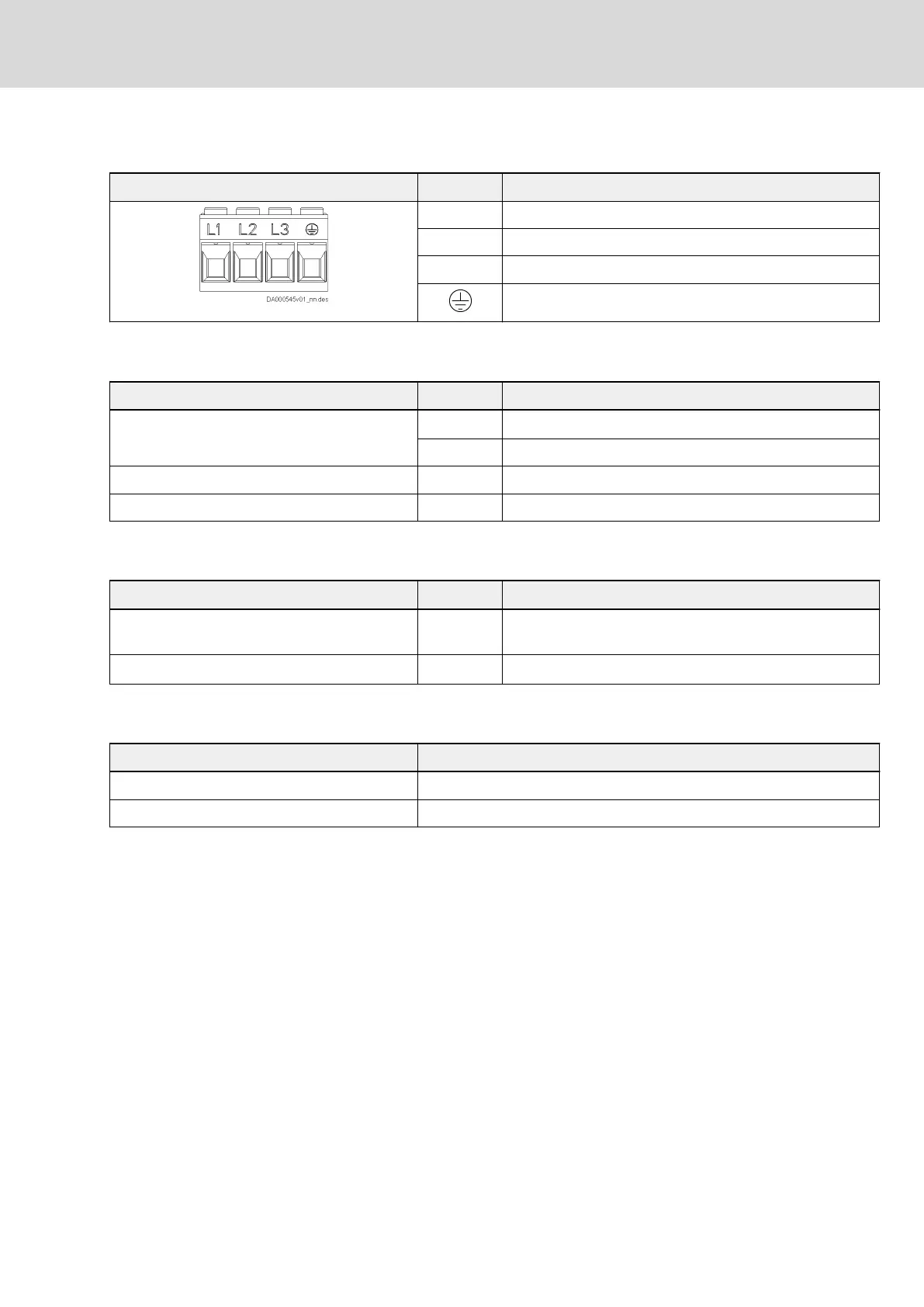

View Connection Function
L1 Connection to supply unit
L2 Connection to supply unit
L3 Connection to supply unit
Equipment grounding conductor
Tab. 6-76: Pin assignment
Mechanical data
Screw terminal (connector) Unit max.
Connection cable
Stranded wire
mm
2
6
AWG 8
Stripped length mm 10
Tightening torque Nm 0.8
Tab. 6-77: Mechanical data
Electrical data
Screw terminal (connector) Unit Value
Occurring current load and minimum required
connection cross section
A See technical data (I
L_cont
, I
L_max
and A
LN
)
Occurring voltage load V See technical data (U
LN
)
Tab. 6-78: Electrical data
Cables
Description Value
Order type RKH0800
Maximum allowed length 1 m
Tab. 6-79: Cables
6.7.5 XD13, fan power supply
Connection point for RKB0054 cable.
See chapter 10.17 "RKB0054, fan cable" on page 330.
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
209/407
Connection points
