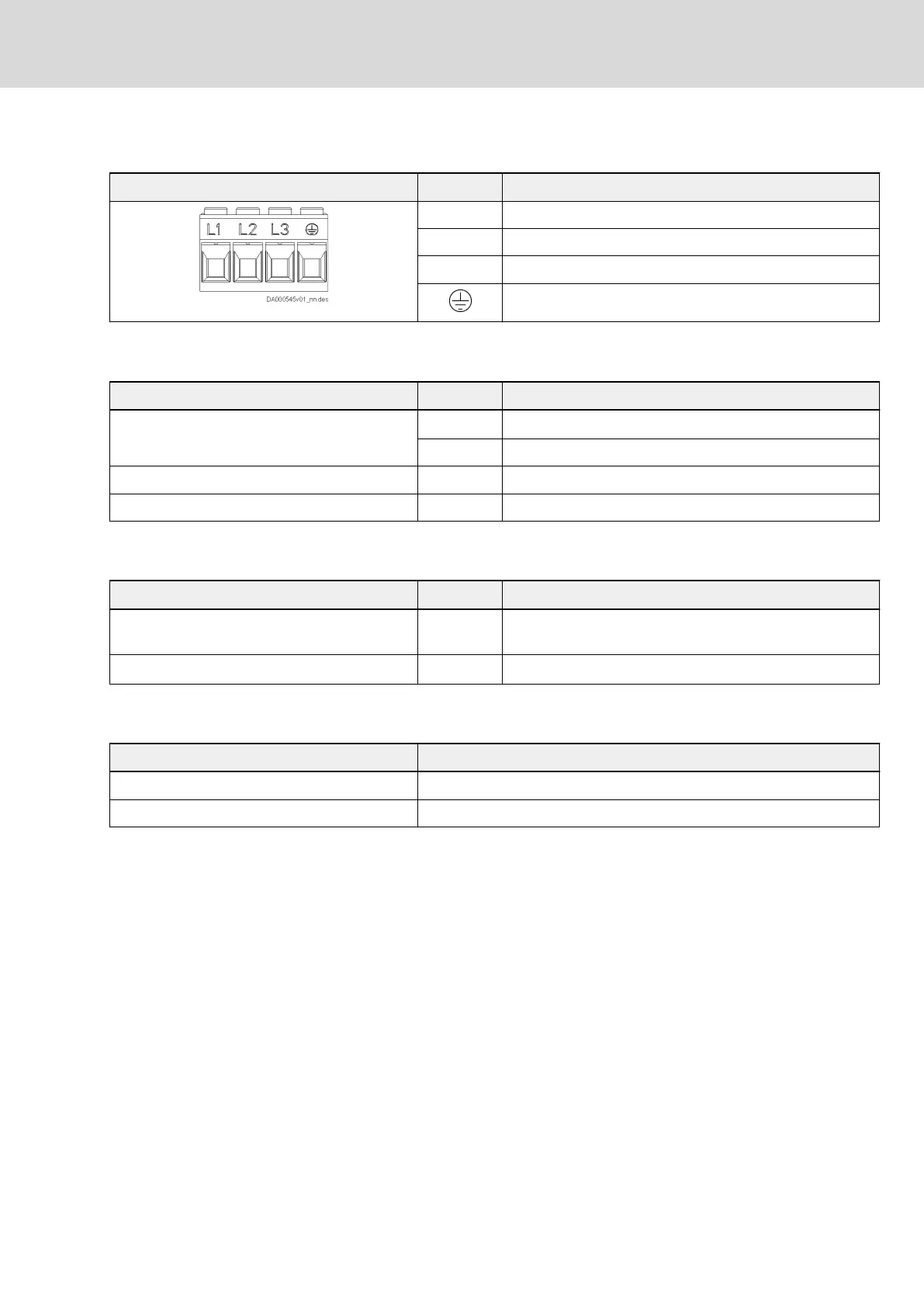

6.6.7 XD1, mains voltage
View Connection Function
L1 Connection to mains filter (XD1.2.L1)
L2 Connection to mains filter (XD1.2.L2)
L3 Connection to mains filter (XD1.2.L3)
Equipment grounding conductor
Tab. 6-55: Pin assignment
Mechanical data
Screw terminal (connector) Unit max.
Connection cable
Stranded wire
mm
2
6
AWG 8
Stripped length mm 10
Tightening torque Nm 0.8
Tab. 6-56: Mechanical data
Electrical data
Screw terminal (connector) Unit Value
Occurring current load and minimum required
connection cross section
A See technical data (I
L_cont
, I
L_max
and A
LN
)
Occurring voltage load V See technical data (U
LN
)
Tab. 6-57: Electrical data
Cables
Description Value
Order type RKH0800
Maximum allowed length 1 m
Tab. 6-58: Cables
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
201/407
Connection points
R911335703_Edition 04 Bosch Rexroth AG
