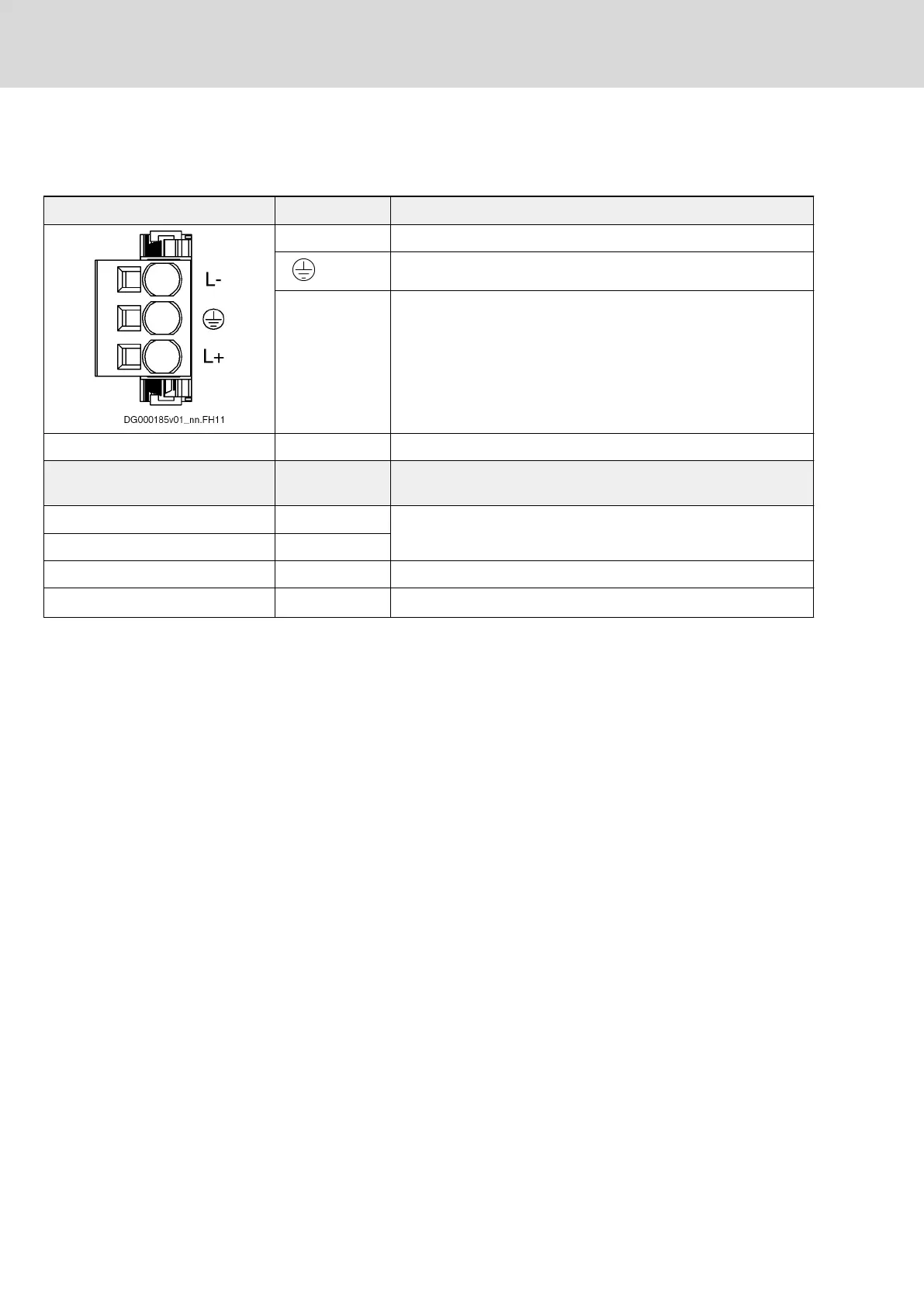

6.2.8 X54, DC Bus, Equipment Grounding Conductor Output KSM02/
KMS02
View Connection Function
L- (BK*) DC bus; negative pole
(GNYE*)
Equipment grounding conductor
L+ (RD*) DC bus; positive pole
Spring terminal (connector at hybrid
cable)
Unit
Connection cable stranded wire Connection via hybrid cable RKH
Connection cable
Short circuit protection L+, L- Fuses F4, F5
Voltage L+, L- V U
out
(see technical data of KCU02)
* Conductor color of the ready-made cable RKH
Tab. 6-11: Function, Pin Assignment, Properties
152/407
Connection points
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
