5.2.3 KSM02 characteristics
S1, S3 Characteristics apply to a PWM frequency of 4 kHz
(1) M
max
, controlled supply (1) 3 × AC 400 V
(2)(3)(4) M
max
, uncontrolled supply (2) 3 × AC 480 V, (3) 3 × AC 440 V,
(4) 3 × AC 400 V

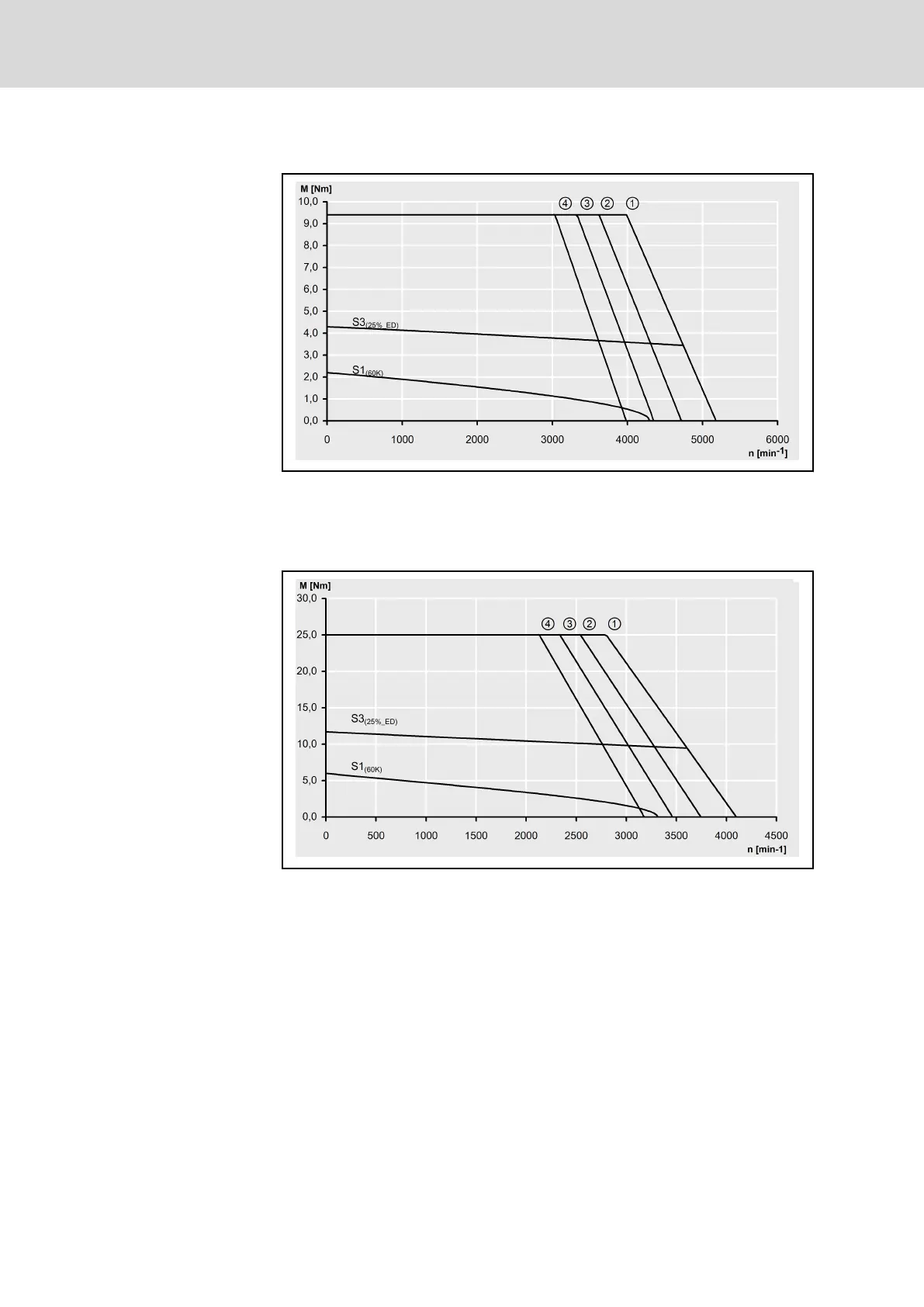

Fig. 5-5: KSM02.1B-041C-42 characteristics
S1, S3 Characteristics apply to a PWM frequency of 4 kHz
(1) M
max
, controlled supply (1) 3 × AC 400 V
(2)(3)(4) M
max
, uncontrolled supply (2) 3 × AC 480 V, (3) 3 × AC 440 V,
(4) 3 × AC 400 V
Fig. 5-6: KSM02.1B-061C-35 characteristics
70/407
Technical data of the components
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
