Flexible cable tracks
Applies to: RKH0700
KSM/KMS plug-in
connector
Bulk cable KSM/KMS plug-in
connector
RHS0007/C03 REH0800 RHS0007/C03

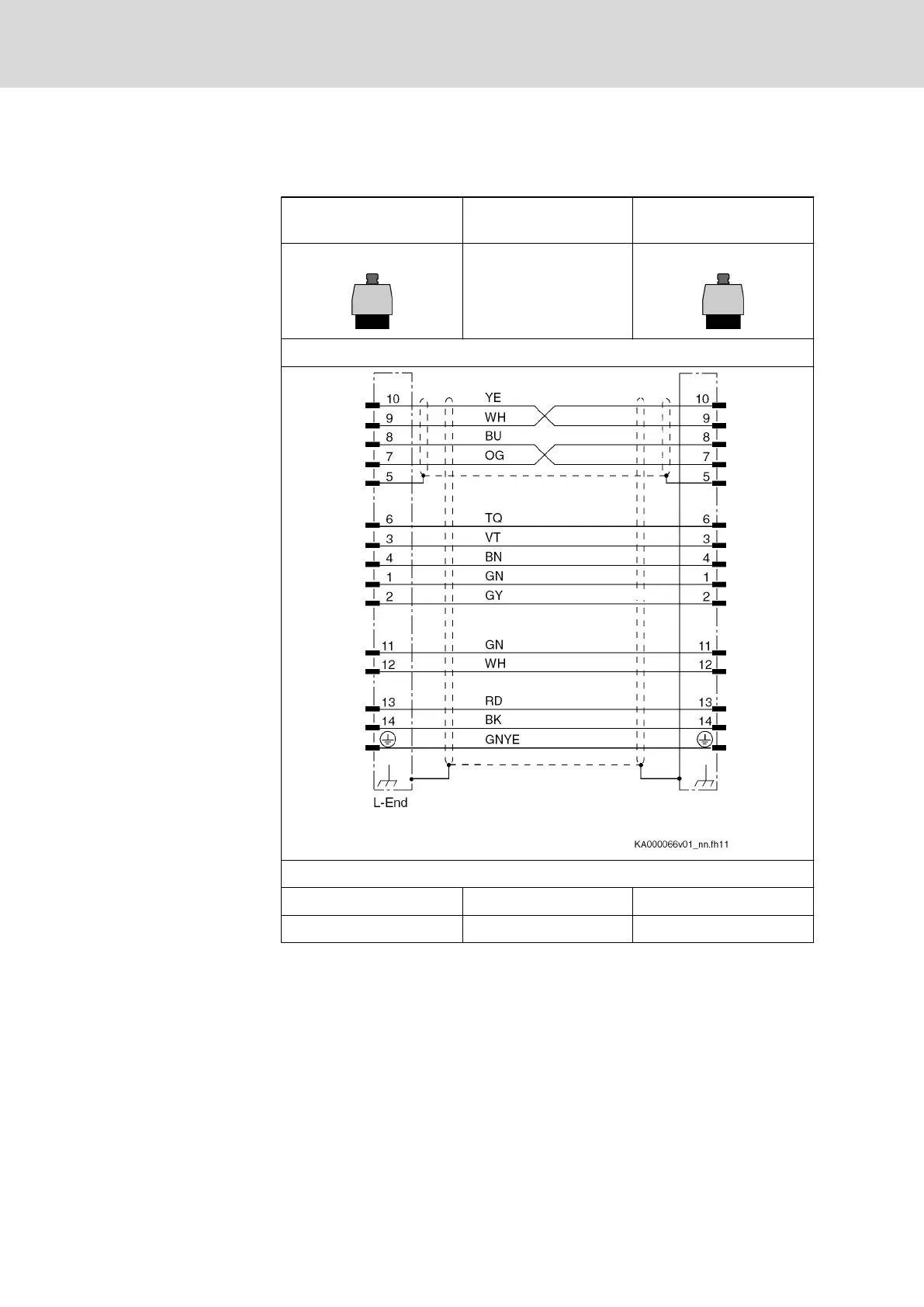

Interconnection diagram
Coding at KSM/KMS plug-in connector
Cable type L-End R-End
RKH0700 Not coded Not coded
Tab. 5-27: Parts of ready-made hybrid cable for flexible cable tracks
126/407
Technical data of the components
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
