10.9 HAS05.1-023, HCS01 adapter
Use
With the accessory (material number: R911385558) an HCS01.1E-W0054
drive controller can be used as a supply unit for IndraDrive Mi components.
See also chapter "HCS01.1E-W0054 used as supply unit" on page 293.
To establish the connection, there are ready-made hybrid cables:
RKH0341, RKH0441, RKH0541, RKH0909
D 36 mm

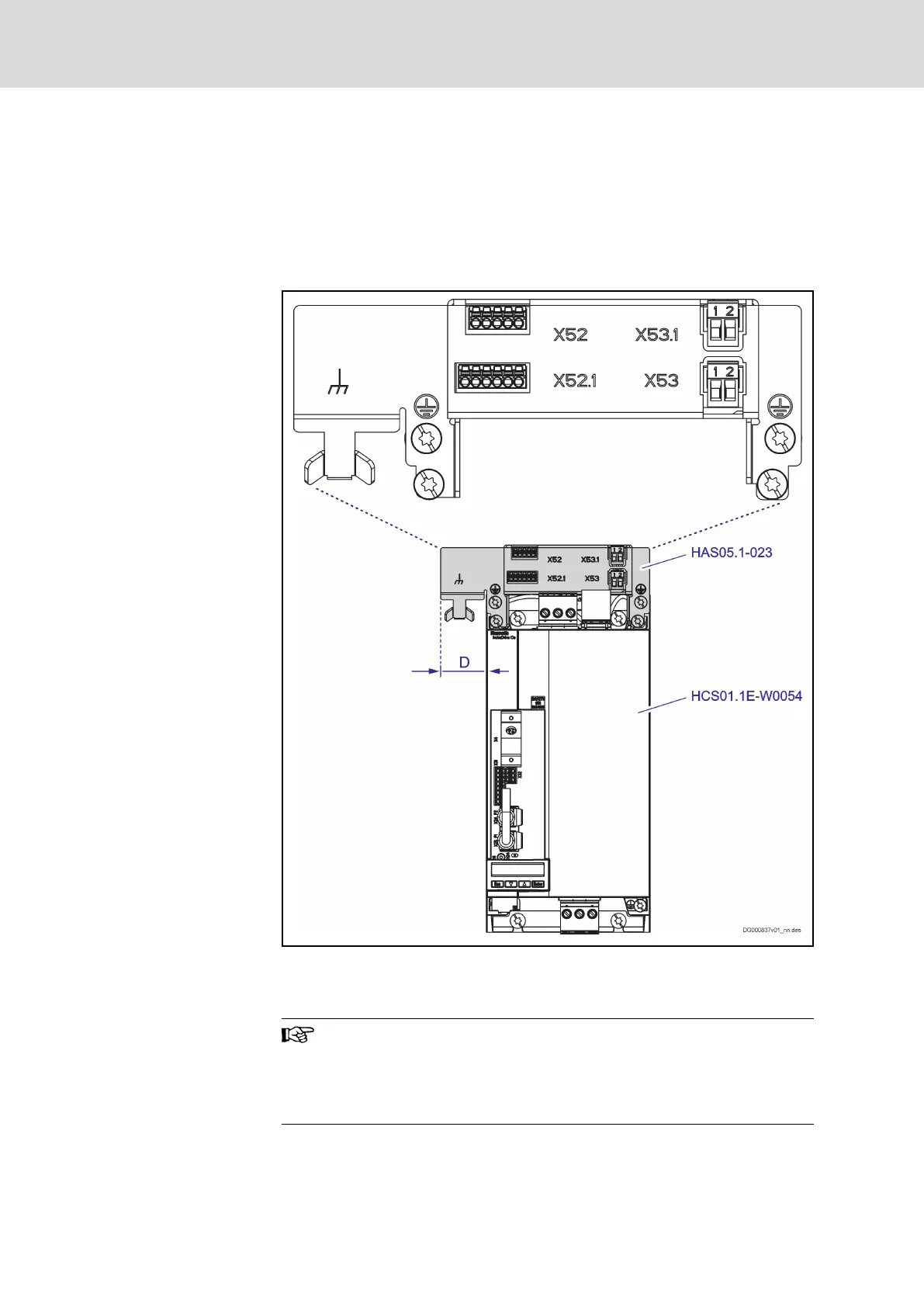

Fig. 10-8: HAS05.1-023, HCS01 adapter
The minimum allowed top mounting clearance specified in the
HCS01 dimensional drawings remains unchanged.
For information on the HCS01 drive controller, please see the
Project Planning Manual "Rexroth IndraDrive Cs Drive Systems
with HCS01" (R911322210).
310/407
Accessories
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
