5.7.2 KNK03.1A-NR-B/Ixxxx dimensional drawing (thermal interface)
A Minimum mounting clearance
B Boring dimensions

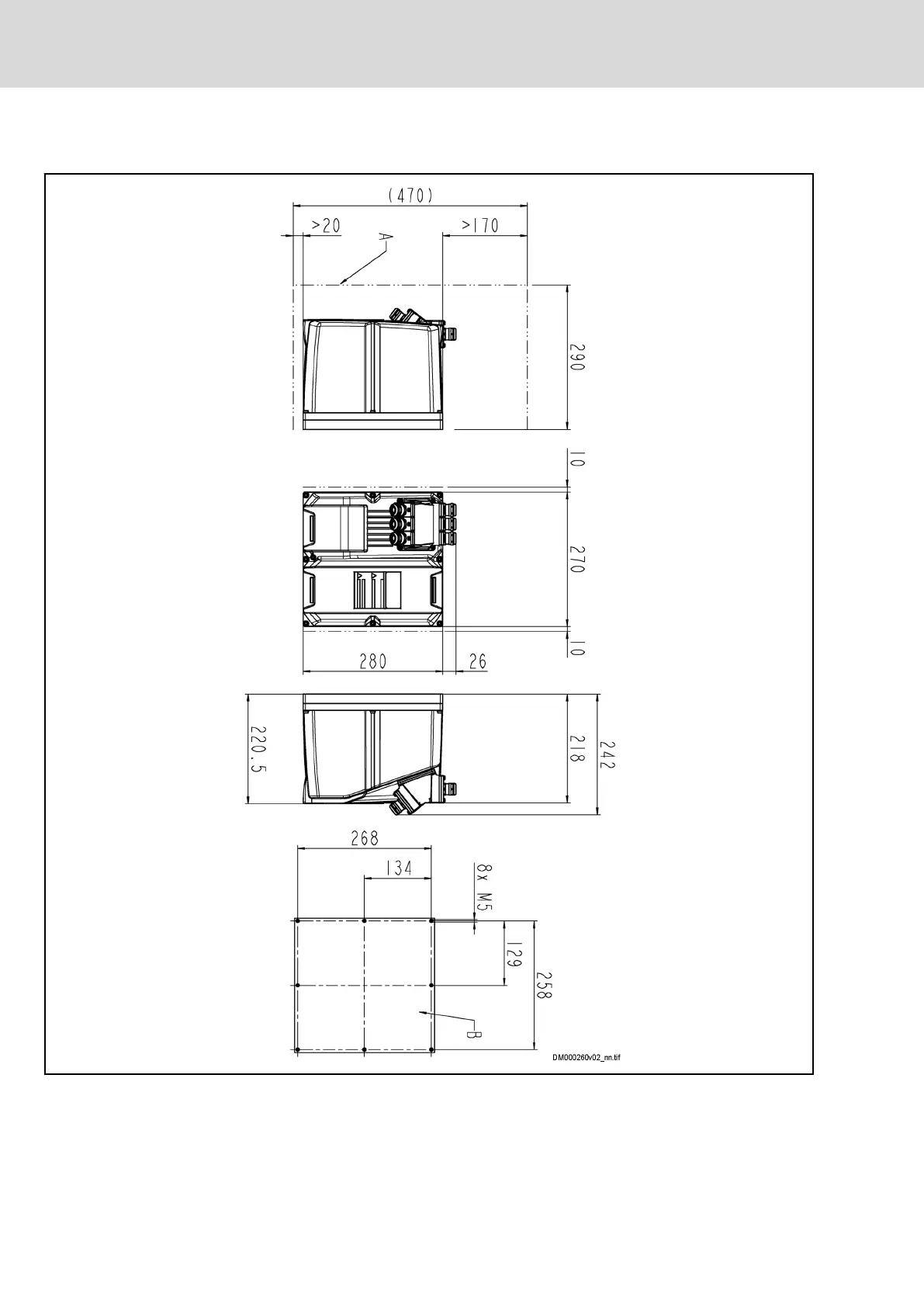

Fig. 5-30: KNK03.1A-NR-B/Ixxxx (thermal interface), dimensions
106/407
Technical data of the components
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
