10.4 HAS03, control cabinet adapter
HMV01 and HCS03 devices have greater mounting depths than the KCU
drive connection box. To connect the KCU drive connection box to an HMV01
or HCS03 device, you therefore have to use the HAS03.1-002 control cabinet
adapter which compensates the different mounting depths.

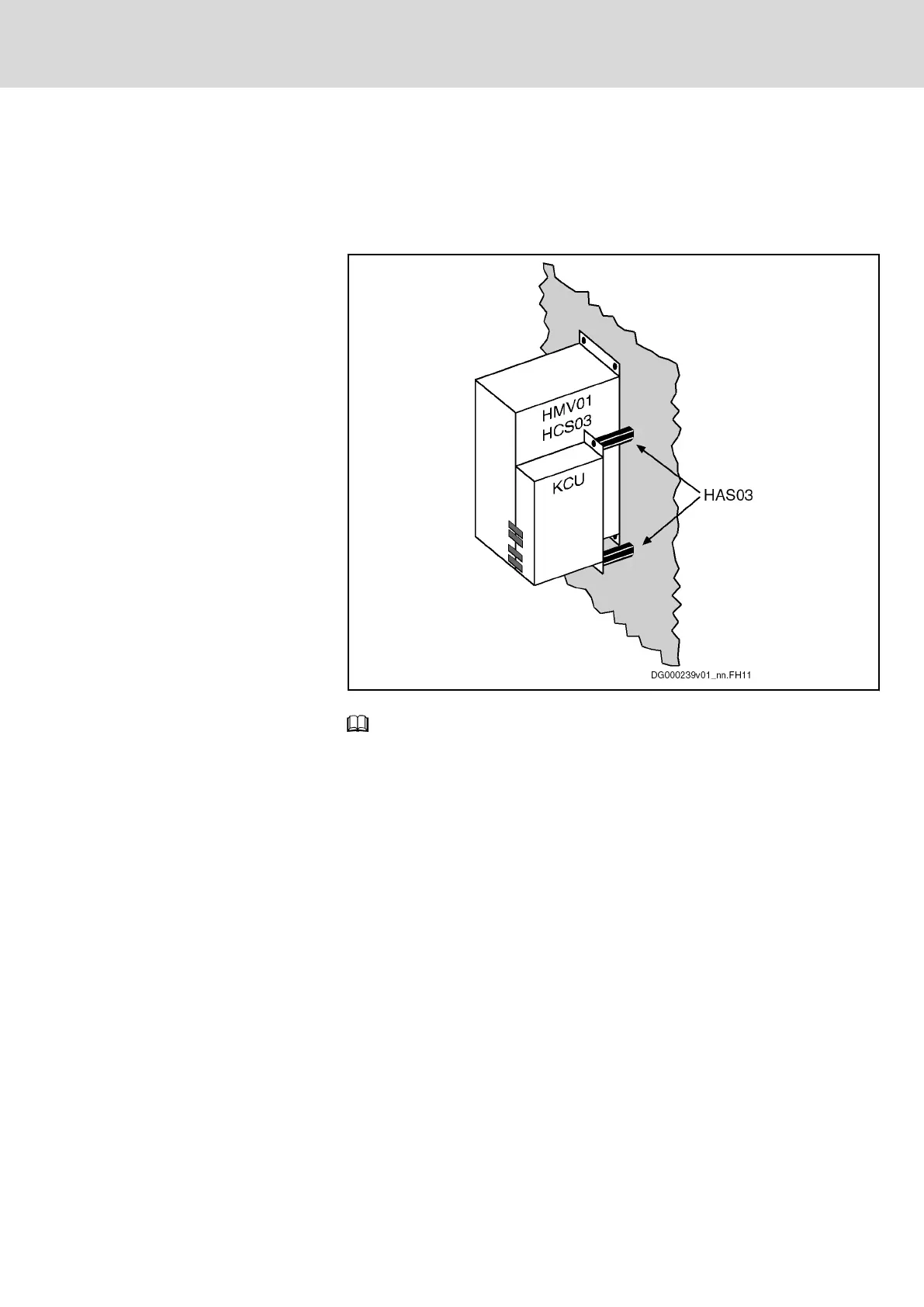

Fig. 10-2: HAS03
For a detailed description, see documentation "Rexroth IndraDrive
Additional Components and Accessories".
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
303/407
Accessories
R911335703_Edition 04 Bosch Rexroth AG
