6.3.6 X118, X119, external communication
The optional connection point X118/X119 is a Multi-Ethernet interface used to
connect components with Ethernet-based communication (Sercos,
PROFINET IO, EtherNet/IP, EtherCAT, POWERLINK) in distributed form.

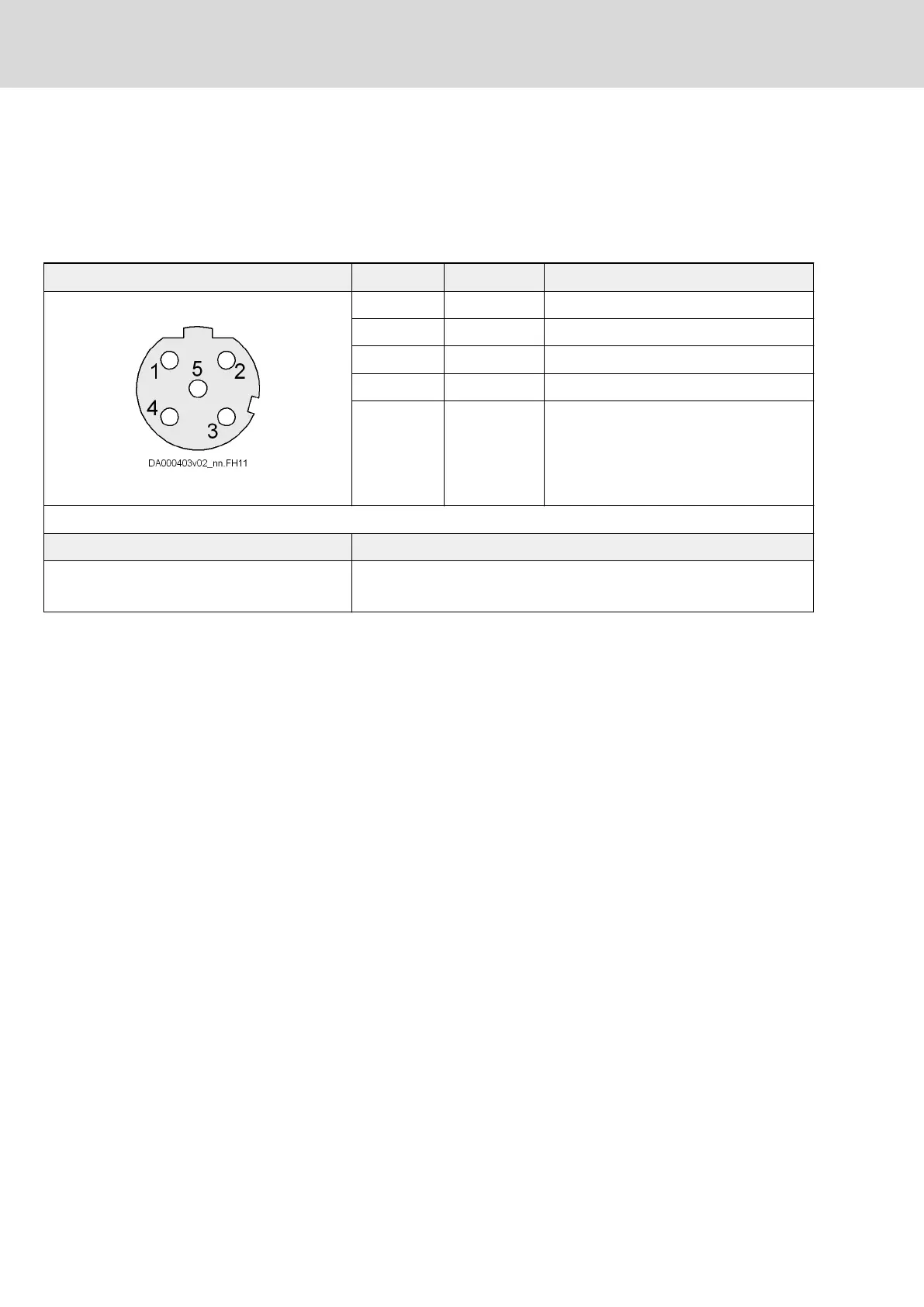

X118, X119
View Connection Signal name Function
1 Tx+ Transmit, Differential Output A
2 Rx+ Receive, Differential Input A
3 Tx- Transmit, Differential Output B
4 Rx- Receive, Differential Input B
5 Shield Shield connection
(Only use shielded cables for which the
shield has been connected to ground
over the largest possible surface area via
the housing.)
Female connector M12 (5‑pin, D‑coded)
Ready-made connection cable ● RKB0043 (M12 → M12)
● RKB0044 (M12 → RJ-45)
Tab. 6-26: X118, X119; function, pin assignment, properties
170/407
Connection points
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
