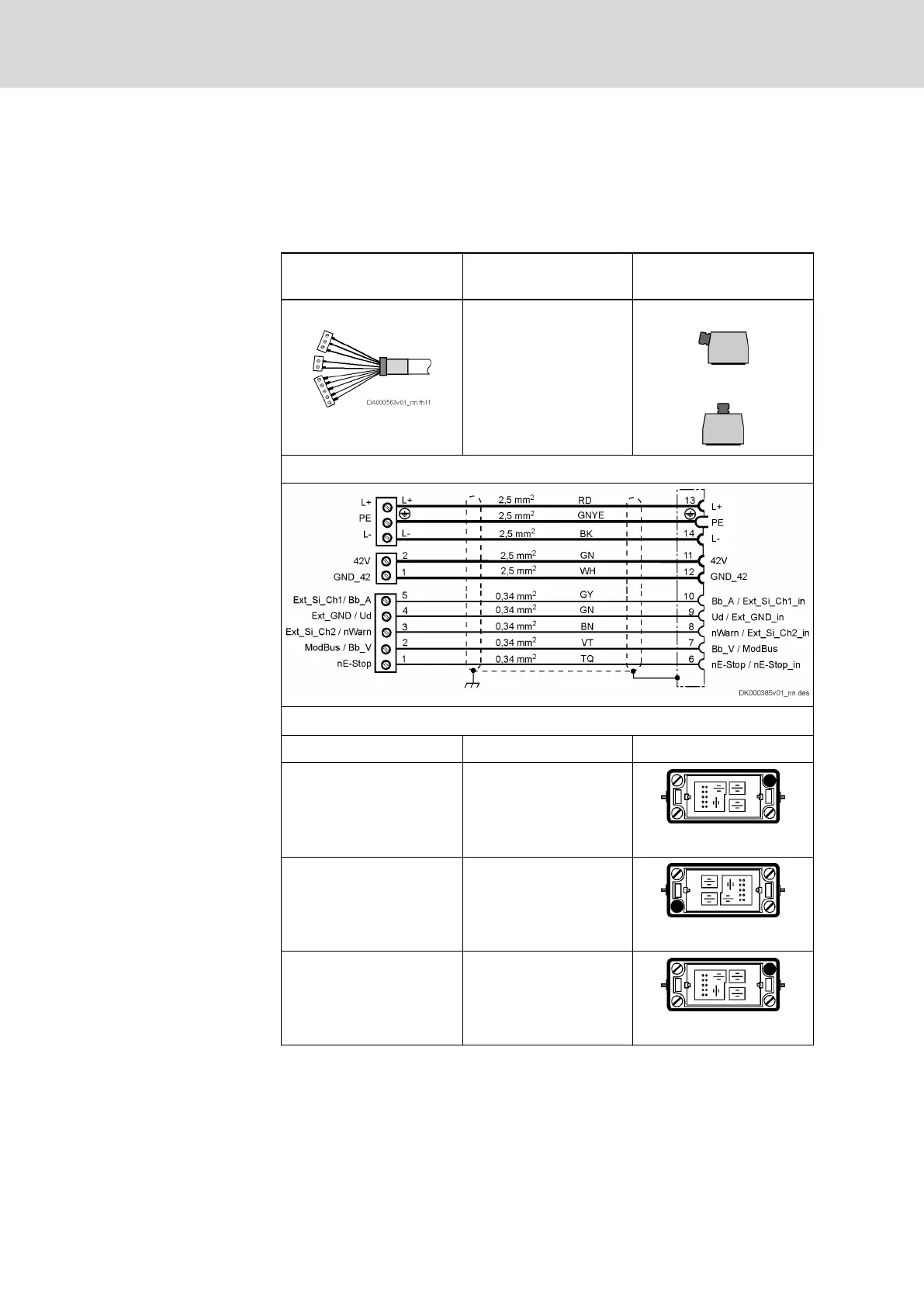

5.9.6 Interconnection diagrams for ready-made hybrid cables without com‐
munication
KCU - KSM/KMS
Applies to: RKH0321, RKH0421, RKH0521
KCU plug-in connector Bulk cable KSM/KMS plug-in
connector
RHS0008/K02 REH0803
RHS0021/CM02
1)
RHS0022/CM02
2)
Interconnection diagram
KSM/KMS plug-in connector
3)
Cable type L-End R-End
RKH0321 RHS0008
X103.1
RKH0421 RHS0008
X103.1
RKH0521 RHS0008
X103.1
1) R-End plug-in connector for RKH0321, RKH0421
2) R-End plug-in connector for RKH0521
3) View to mating side
Tab. 5-35: Parts of ready-made hybrid cables without communication from KCU
to KSM02/KMS
134/407
Technical data of the components
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
