Design
1 Trademark
2 Type designation
3 Product range
4 Output frequency range
5 Output current
6 Output voltage
7 Country of manufacture
8 Manufacturing plant
9 CE conformity label
10 UL label
11 2-D bar code
12 Manufacturer code
13 Hardware revision index
14 Degree of protection in accordance with IEC 60529
15 Serial number
16 MAC address (Ethernet ID)
17 Mass
18 Ambient conditions according to UL50/50E
19 Rated input current (UL)
20 Rated input voltage (UL)
21 Company address
22 Maximum bypass current (UL)
23 Allowed ambient temperature
24 Short circuit current rating (UL)
25 Cooling type
26 Rated power consumption control voltage input at U
N3
(UL)
27 Rated control voltage input (UL)
28 Parts number
29 Production date

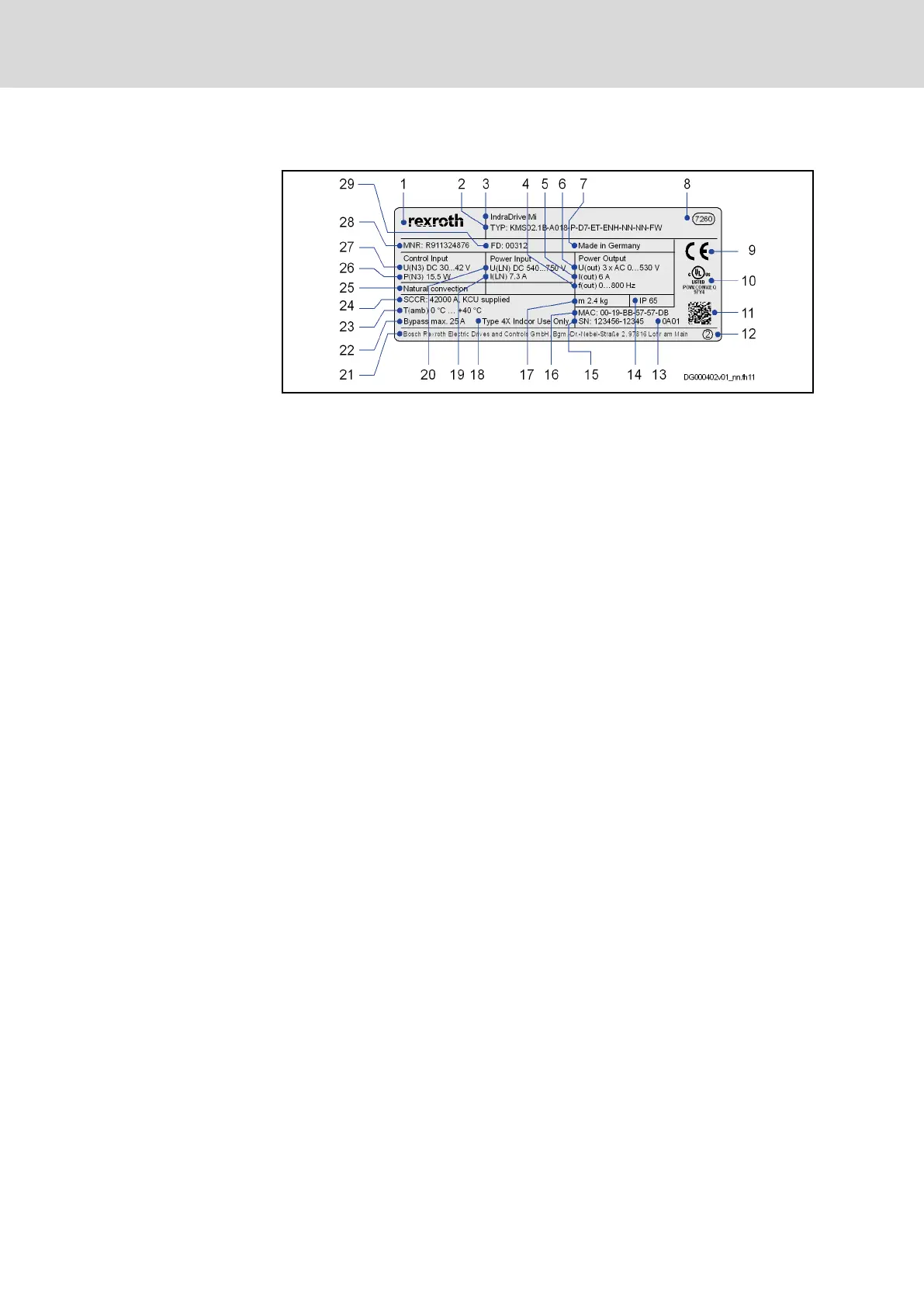

Fig. 8-4: Type Plate KMS02
System type plate
chapter 8.2.7 "System type plate (module of configured variants)" on page
273
264/407
Identification
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
