HAS05.1-023 - KSM/KMS
Applies to: RKH0341, RKH0441, RKH0541
HAS05 plug-in connector Bulk cable KSM/KMS plug-in
connector
RHS0015/CM03 REH0800
RHS0024/CM03
1)
RHS0025/CM03
2)
Interconnection diagram
Coding at KSM/KMS plug-in connector
3)
Cable type L-End R-End
RKH0341
RKH0441
RKH0541
RHS0015
Locking pin
Coding profile
4)
1) R-End plug-in connector for RKH0341, RKH0441
2) R-End plug-in connector for RKH0541
3) Picture shows coding with view to mating side
4) The coding profile ensures the downward compatibility of the
hybrid cable for KSM01/KMS01

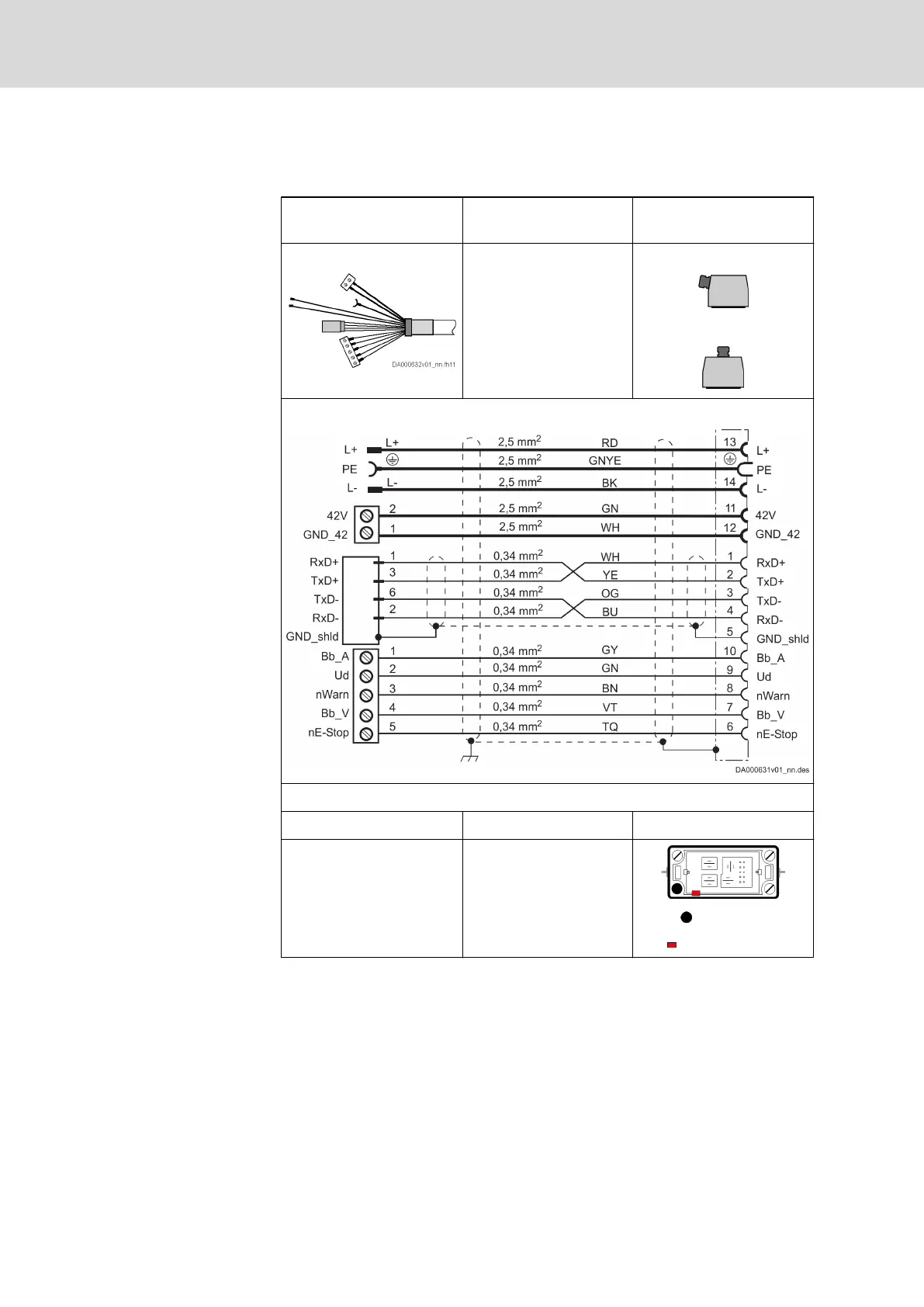

Tab. 5-33: Parts of ready-made hybrid cables from HAS05.1-023 to KSM/KMS
HAS05.1-023
chapter 10.9 "HAS05.1-023, HCS01 adapter" on page 310
132/407
Technical data of the components
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
