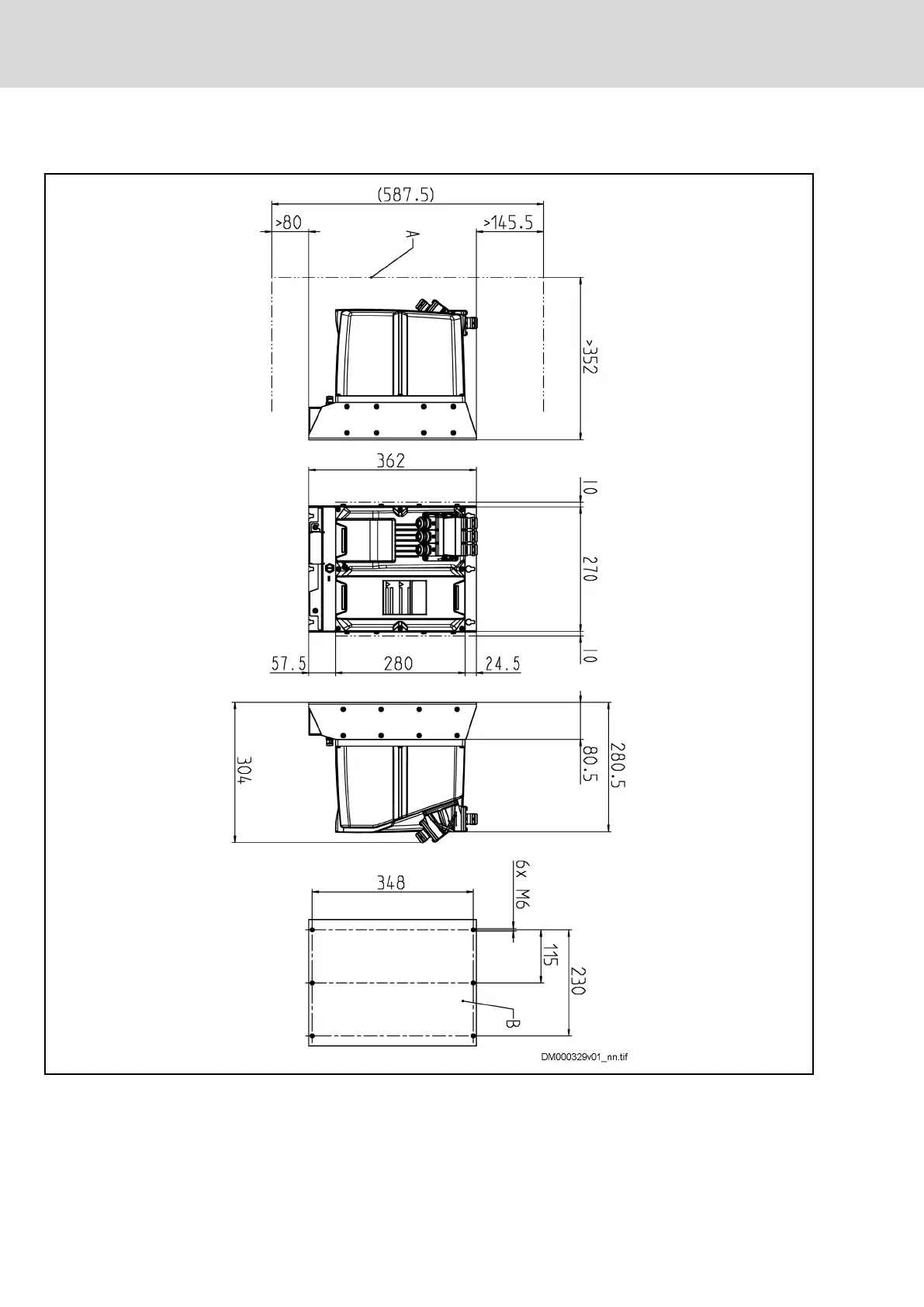

5.7.4 KNK03.1A-NR-Wxxxx dimensional drawing (forced cooling)
A Minimum mounting clearance
B Boring dimensions
Fig. 5-32: KNK03.1A-NR-Wxxxx (forced cooling), dimensions
108/407
Technical data of the components
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
