10.13 RKB0013, Multi-Ethernet cable

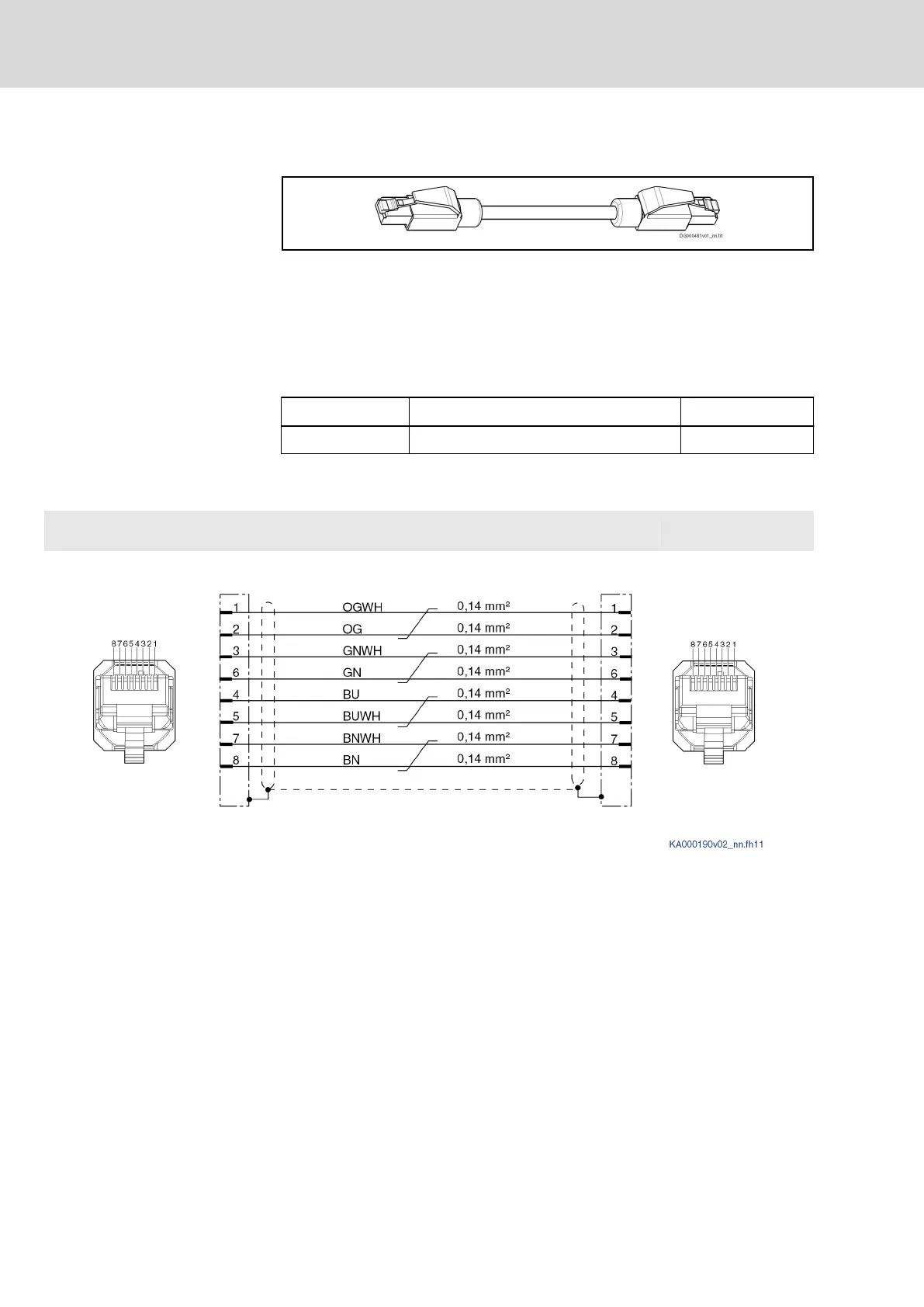

Fig. 10-21: RKB0013
Use
Short cable for connecting a drive connection box KCU to a neighboring
device in the control cabinet.
Minimum bending radius: 30.75 mm
Length that can be ordered, order
code
Length Order code Material number
0.55 m RKB0013/00,55 R911317801
Tab. 10-16: RKB0013
RKB0013
Plug-in connector bus Bulk cable Plug-in connector bus
RJ-45, 8-pin sercos III cable, 100-Base-T, CAT5E, shielded RJ-45, 8-pin
Use instruction: only fixed lengths
Tab. 10-17: RKB0013 interconnection diagram
326/407
Accessories
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
