6.2.3 X29.1, X29.2, Multi-Ethernet
The signals at X29.1 are directly looped through to X29.2.
View Connection Signal name Function
1 TD+ Transmit, Differential Output A
2 TD- Transmit, Differential Output B
3 RD+ Receive, Differential Input A
4 n. c. -
5 n. c. -
6 RD- Receive, Differential Input B
7 n. c. -
8 n. c. -
Housing Shield connection
Properties
Standard ● Ethernet
● Type: RJ-45, 8-pin
Compatibility 100Base-TX according to IEEE 802.3u
Recommended cable type ● According to CAT5e; ITP type of shield (Industrial Twisted Pair)
● Ready-made cables that can be ordered:
– RKB0021
Long cables (100 m at maximum) to connect the drive system to the
higher-level control unit or remote communication nodes.
Minimum bending radius:
– 48.75 mm with flexible installation
– 32.50 mm with permanent installation
Order code for a 30 m long cable: RKB0021/030,0
– RKB0013
Short cables to connect devices arranged side by side in the control
cabinet.
4 lengths available: 0.19 m; 0.25 m; 0.35 m; 0.55 m
Order code for a 0.55 m long cable: RKB0013/00,55
Minimum bending radius: 30.75 mm

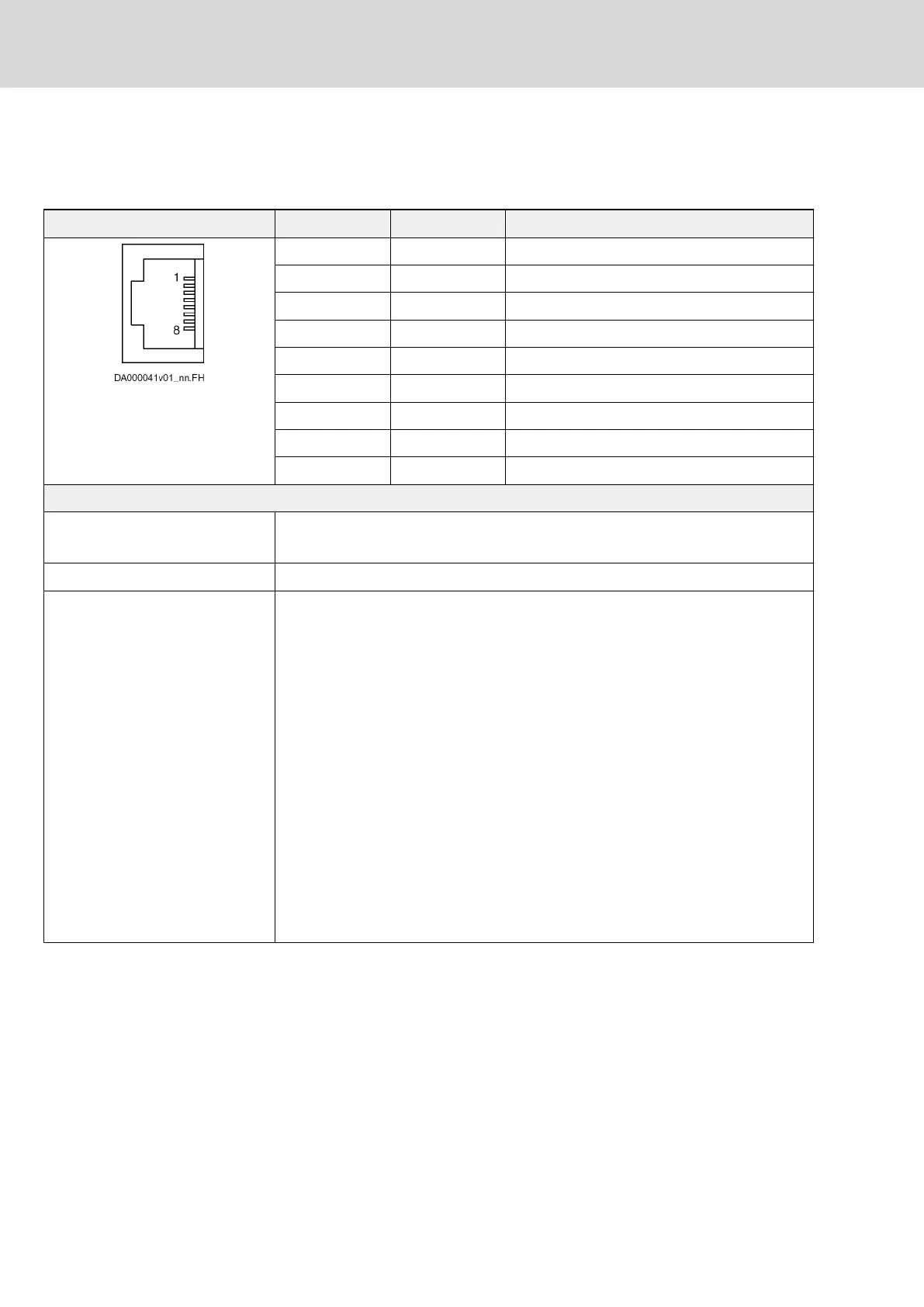

Tab. 6-4: Function, pin assignment, properties
146/407
Connection points
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
