7.1.9 Hybrid cable length
Length of hybrid cable incl. communication
Allowed cable length depending on load
The maximum allowed total length is limited depending on the
kind of load on the hybrid cable.
Observe the following limit values for total length and segment
length within a drive line.
The number of KSM/KMS devices in the drive line has an
influence on the allowed cable length (see also chapter "Hybrid
cable length vs. KCU performance" on page 231).

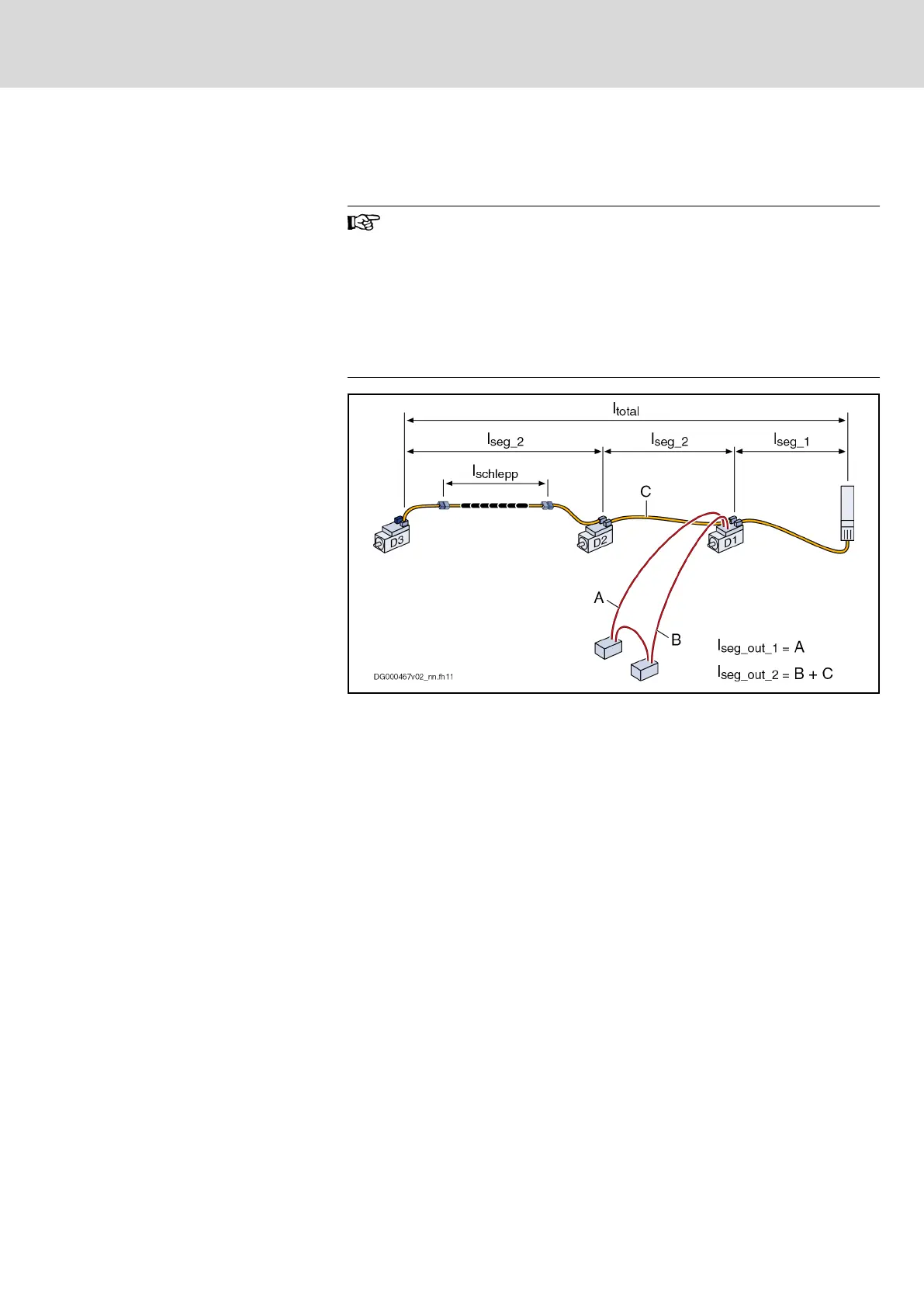

Definition of the cable lengths
l
total
Total length
l
seg
Segment length
l
seg_out_1
Segment length with communication output coupling:
D1_X108 ↔ external component
l
seg_out_2
Segment length with communication output coupling:
[external component ↔ D1_X109] + [D1_X103.2 ↔ D2_X103.1]
l
schlepp
Flexible cable track length
Fig. 7-11: Definition of the lengths
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
227/407
Notes on project planning
R911335703_Edition 04 Bosch Rexroth AG
