KMS02 near motor servo drive
* Power is supplied to the drives via HMV or HCS (alternative
power supply: KMV); HMS, HMD: optional

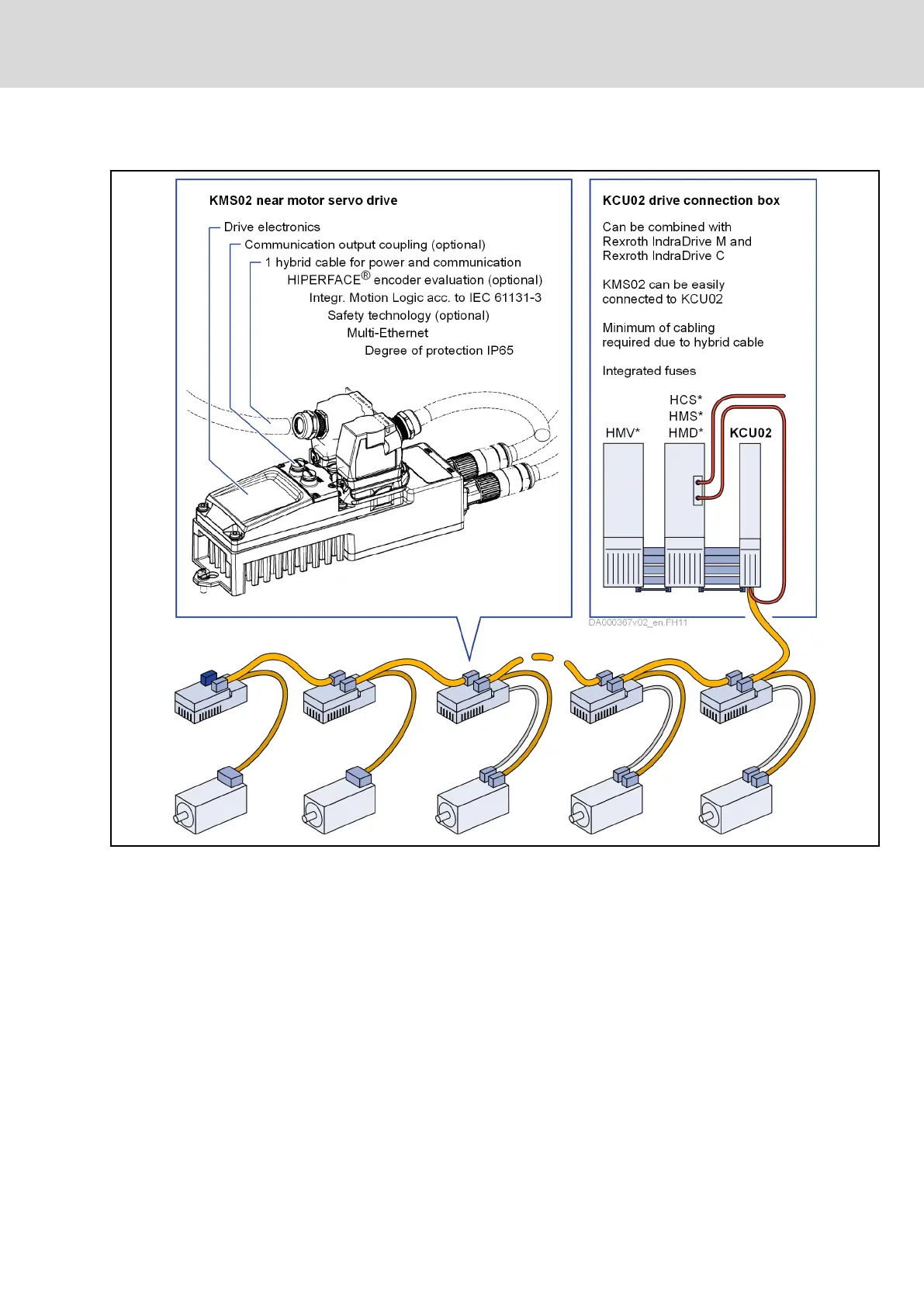

Fig. 1-2: IndraDrive Mi with KMS02 – Features
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
3/407
System presentation
R911335703_Edition 04 Bosch Rexroth AG
