HCS03 used as supply unit

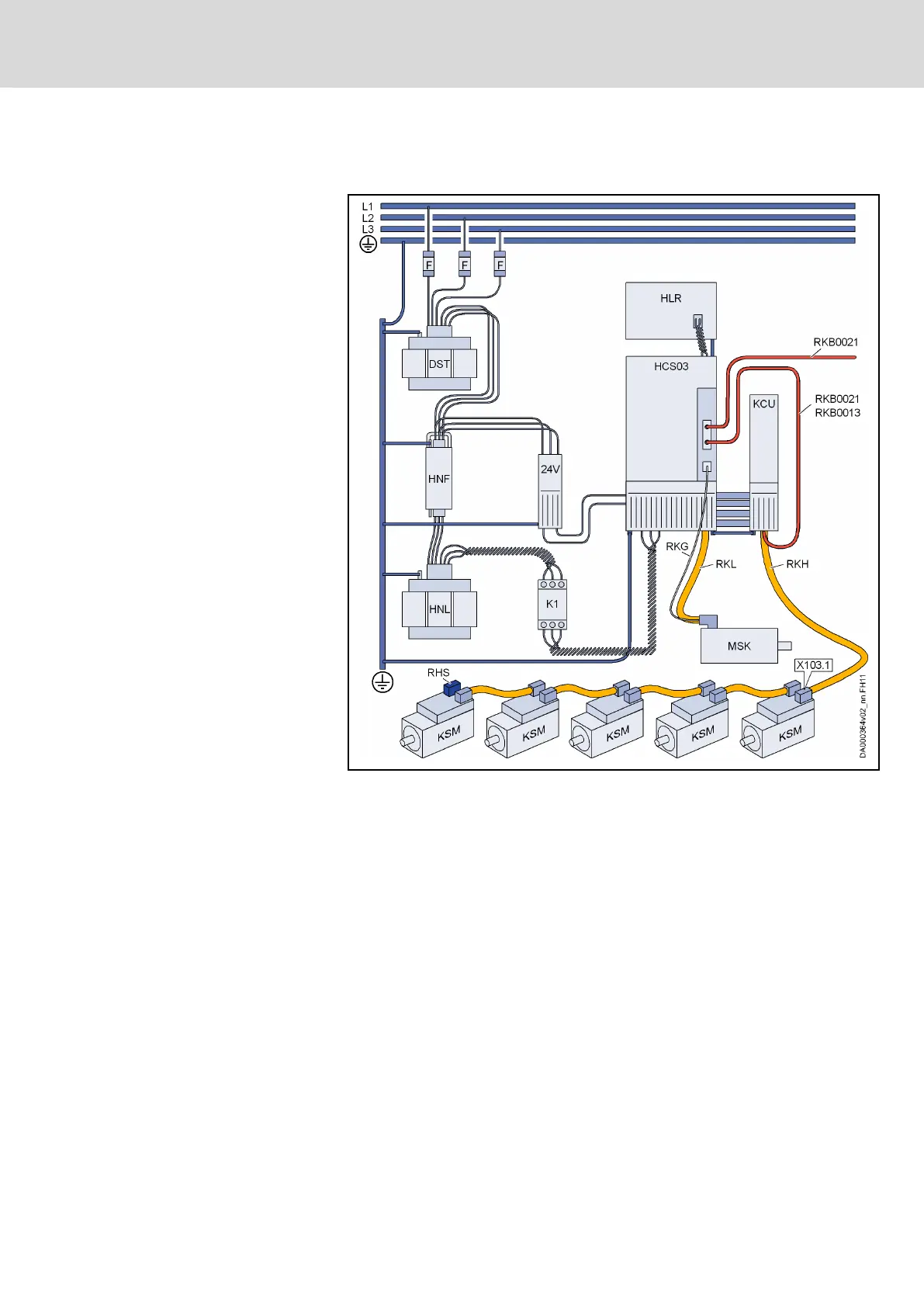

IndraDrive Mi drive system with HCS03 supply unit:
DST Transformer (optional)
F Fuses
HCS03 Converter
HLR Braking resistor (optional)
HNF Mains filter
HNL Mains choke (optional)
K1 Mains contactor
KCU Drive connection box
KSM Motor-integrated servo drive
MSK Servo motor
RHS Terminal connector
RKB Communication cable
RKH Hybrid cable
RKG Encoder cable
RKL Motor cable
24V 24V supply
X103.1 Connection of hybrid cable at first KSM
Fig. 9-6: IndraDrive Mi drive system with HCS03
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
291/407
Mounting and installation
R911335703_Edition 04 Bosch Rexroth AG
