6.7 KNK03 connection points
6.7.1 Positions of the connection points

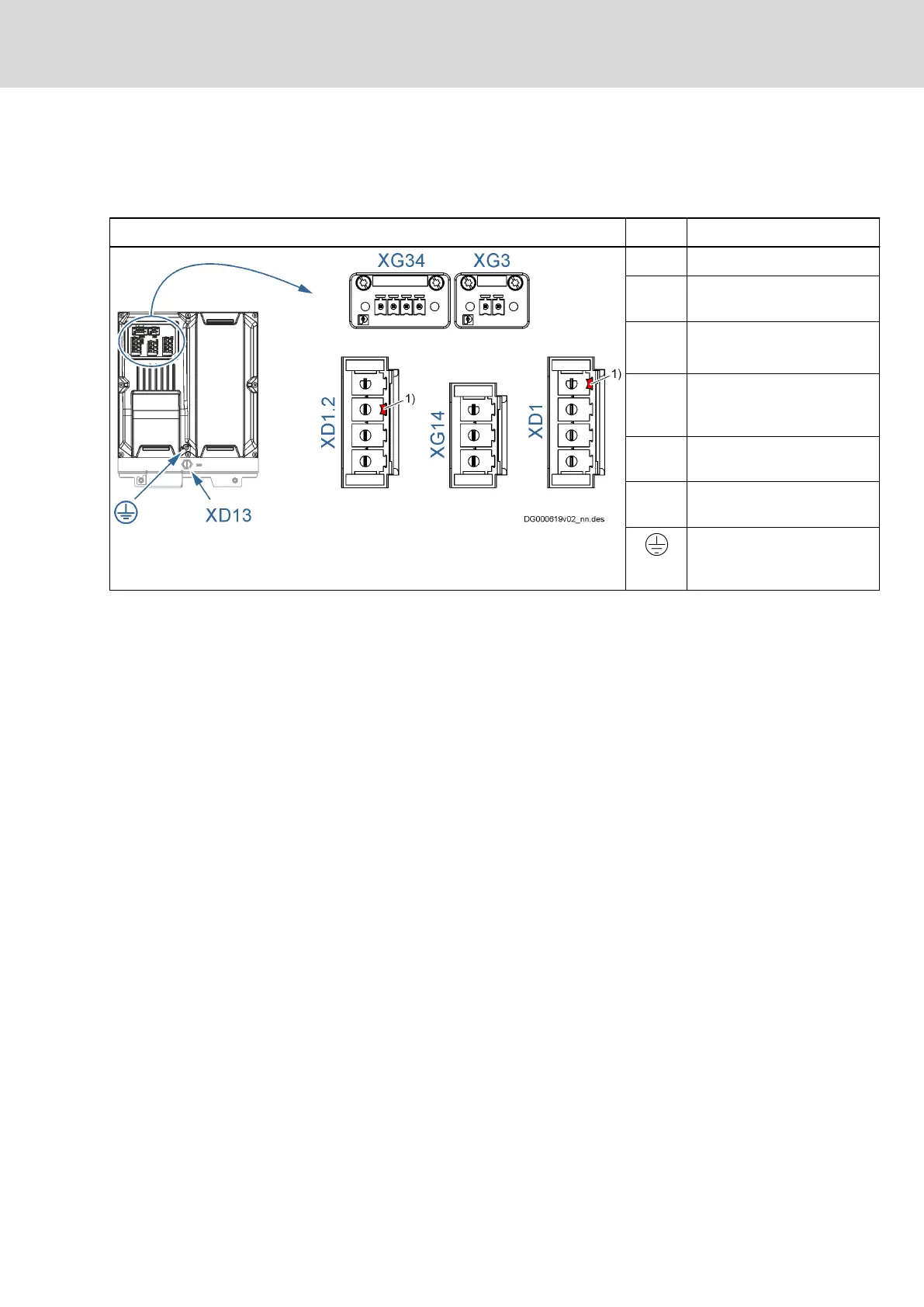

Figure Element Significance
XD1
Mains voltage supply input
1)
XD1.2
2)
Output to load KMV03 (XD1,
mains voltage)
1)
XD13
4)
KNK03.1A-NR-Wxxxx:
Fan
XG14
3)
Output to load KMV03
(XG14, mains voltage
synchronization)
XG3
3)
Mains choke temperature
contact
XG34
2)
Mains contactor control and
feedback contacts
Second connection point of
equipment grounding
conductor
1) Coding pins prevent the connectors XD1 and XD1.2 from being
incorrectly plugged
2) RKH0800 cable connects KMV to KNK
3) RKH0801 cable connects KMV to KNK
4) RKB0054 cable
Tab. 6-71: KNK03 connection points
6.7.2 Second equipment grounding conductor connection point
See chapter 6.3.8 "Second connection point of equipment grounding
conductor" on page 178
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
207/407
Connection points
R911335703_Edition 04 Bosch Rexroth AG
