HMV01 used as supply unit

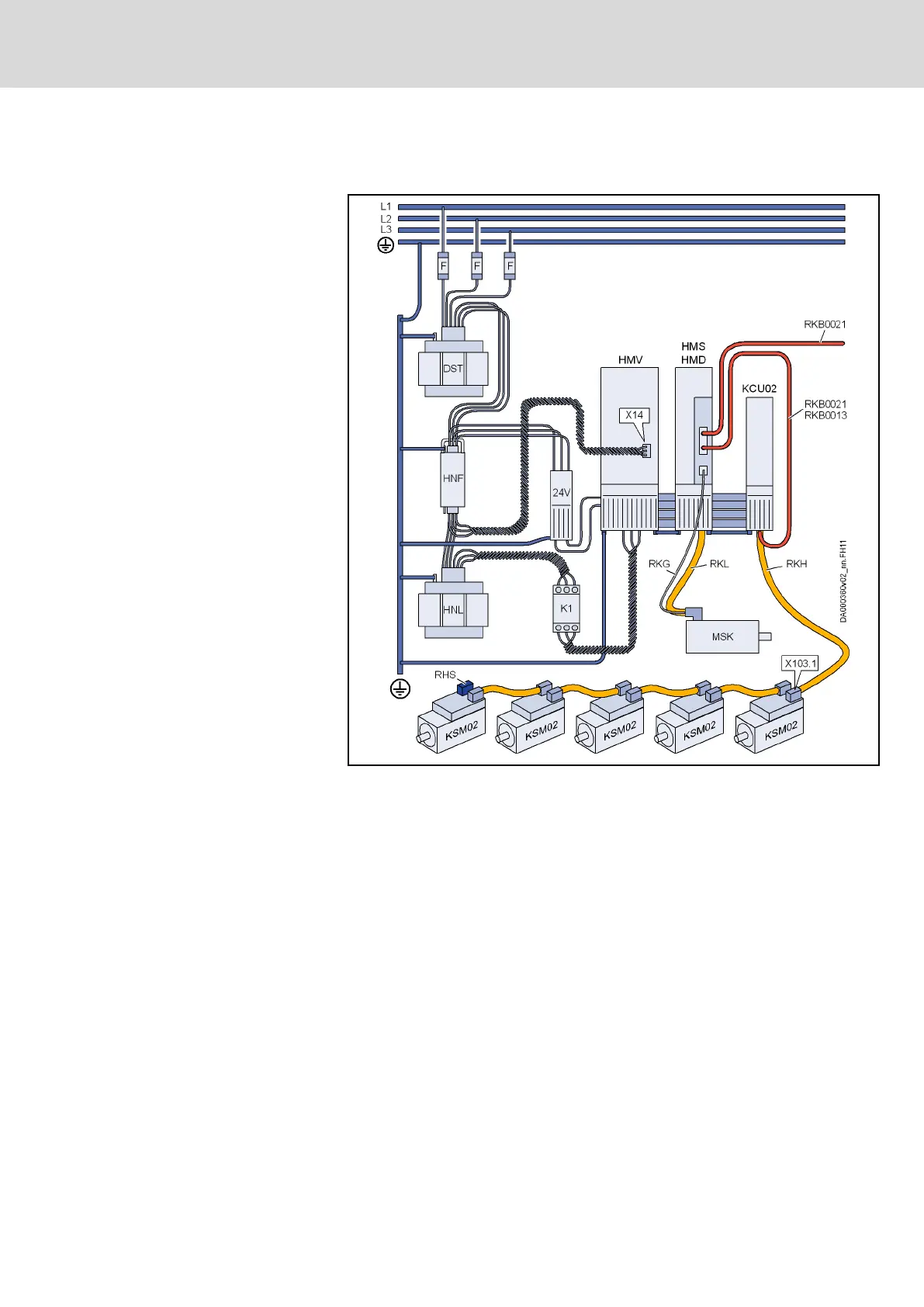

IndraDrive Mi drive system with HMV01 supply unit:
24V 24V supply
DST Transformer (optional)
F Fuses
HMD, HMS Inverter (optional)
HMV01 Supply unit
HNF Mains filter
HNL Mains choke
K1 Mains contactor (only for supply units without integrated mains
contactor, e.g. HMV01.1R-W0120)
KCU Drive connection box
KSM Motor-integrated servo drive
MSK Servo motor (optional)
RHS Terminal connector
RKB Communication cable
RKG Encoder cable (optional)
RKH Hybrid cable
RKL Motor cable (optional)
X14 Mains synchronization (only with regenerative HMVs)
X103.1 Connection of RKH hybrid cable at first KSM
Fig. 9-4: IndraDrive Mi drive system with HMV01
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
289/407
Mounting and installation
R911335703_Edition 04 Bosch Rexroth AG
