HCS02 used as supply unit

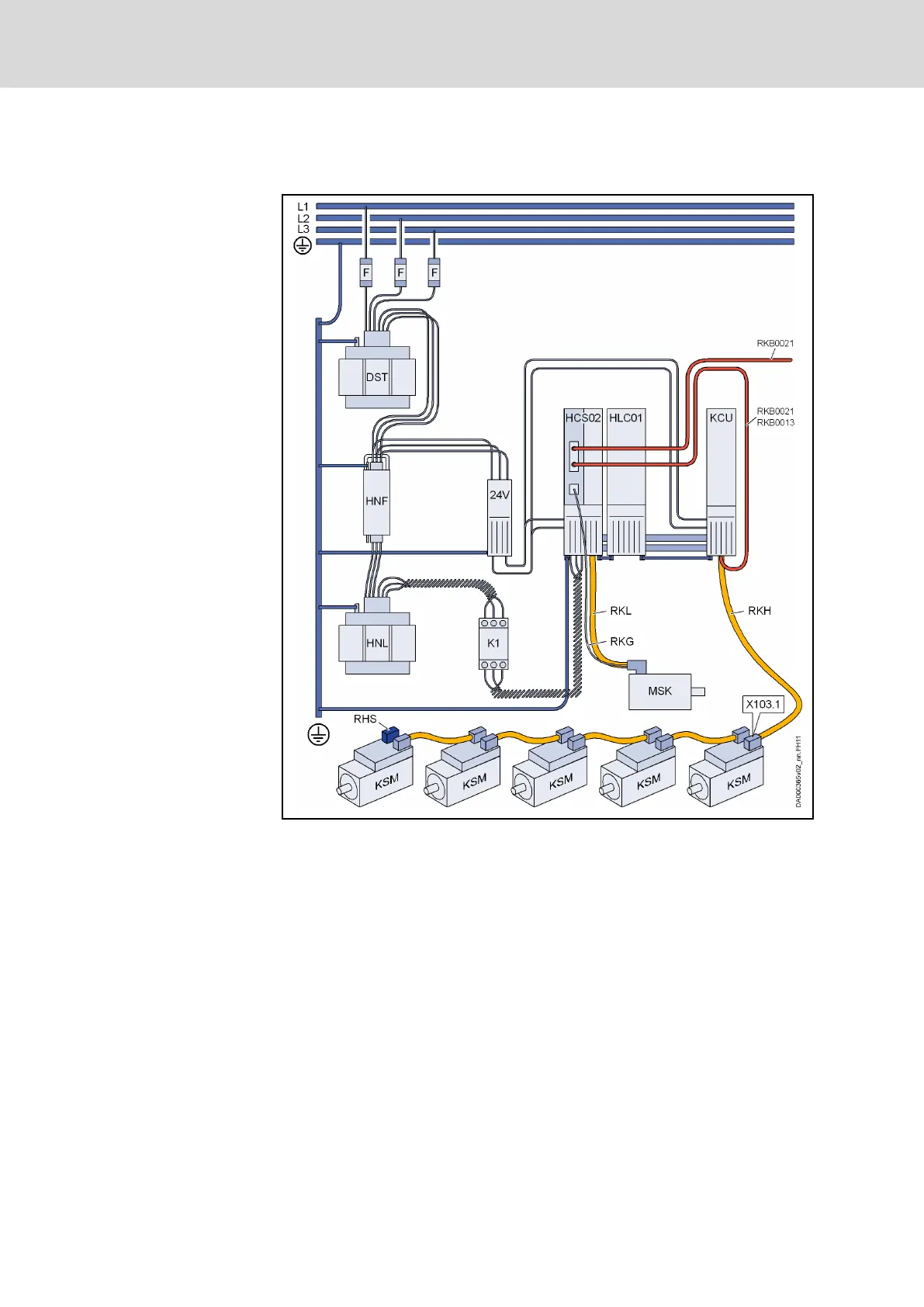

IndraDrive Mi drive system with HCS02 supply unit:
DST Transformer (optional)
F Fuses
HCS02 Converter (HCS02.1E-W0054 or HCS02.1E-W0070)
HNF Mains filter
HNL Mains choke (optional)
HLC01 DC bus capacitor unit (optional only with low load of motor out‐
put at HCS02)
K1 Mains contactor
KCU Drive connection box
KSM Motor-integrated servo drive
MSK Servo motor
24V 24V supply
RHS Terminal connector
RKB Communication cable
RKG Encoder cable
RKH Hybrid cable
RKL Motor cable
X103.1 Connection of hybrid cable at first KSM
Fig. 9-5: IndraDrive Mi drive system with HCS02
290/407
Mounting and installation
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
