14.2.2 Digital outputs (safety technology S options)
The digital outputs are compatible with digital inputs of types 1, 2 and 3
(IEC 61131).
Data Unit min. max.
Output voltage ON V U
ext
- 1 U
ext
Output voltage OFF V 2
Allowed output current per
output
mA 350
Allowed energy content of
connected inductive loads, e.g.
relay coils
mJ
400
1) 2)
Capacitive load nF 320
Short circuit protection Present
Overload protection Present

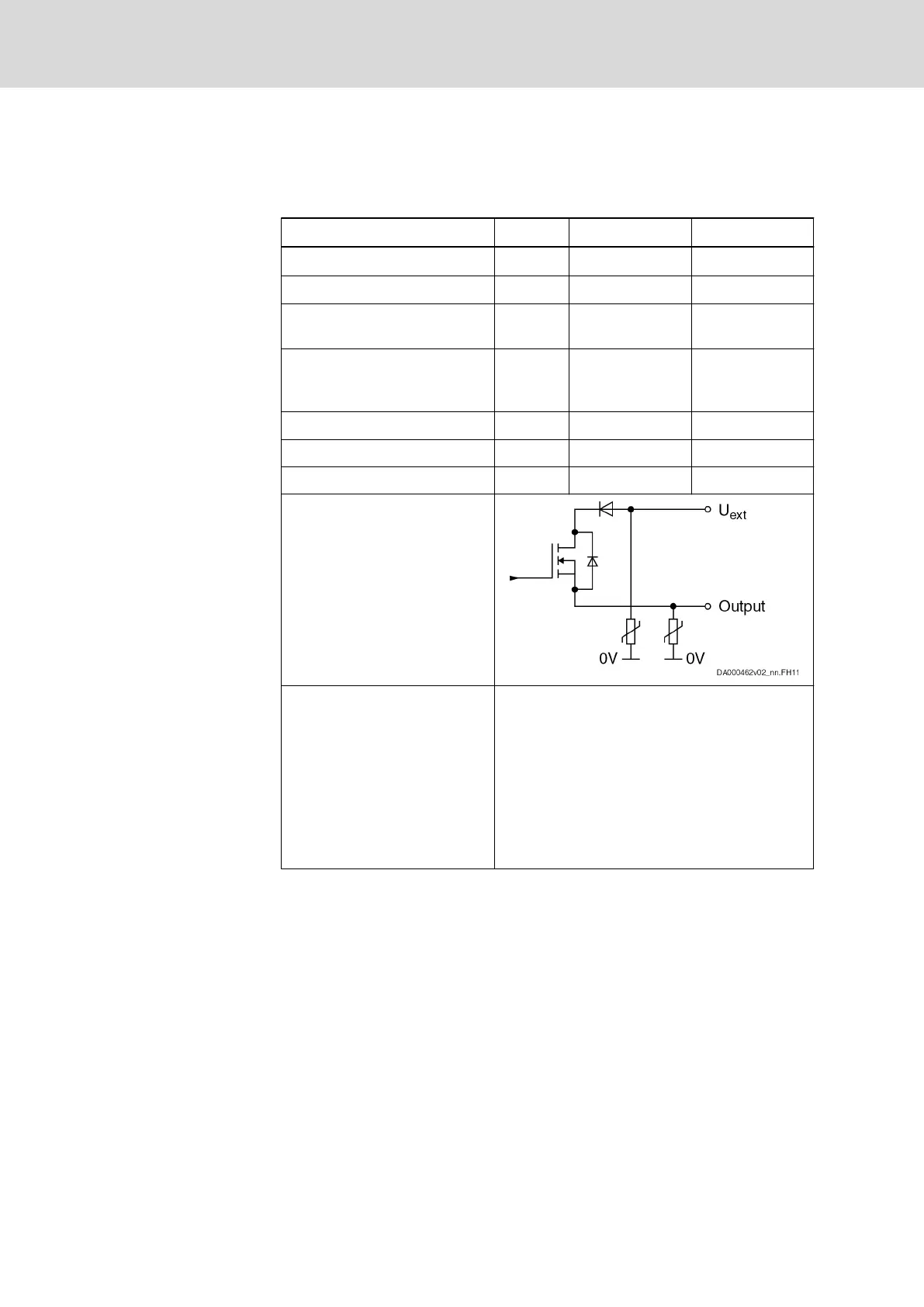

Block diagram output:
Error detection The following errors are detected:
● Wiring error with short circuit to high
● Wiring error with short circuit to low
● Wiring error with short circuit between the
two channels
● Internal errors
In the case of an error, the control panel shows
the corresponding error message: F83xx
1) At a maximum switching frequency of 1 Hz
2) In the case of inductive loads with currents > 200 mA or in the
case of inductive loads with a greater energy content, an exter‐
nal free-wheeling arm has to be installed. The effective termi‐
nal voltage has to be < 25 V.
Tab. 14-6: Digital outputs
