5.6.2 KLC03.1N-B04M7 dimensional drawing (thermal interface)
A Minimum mounting clearance
B Boring dimensions

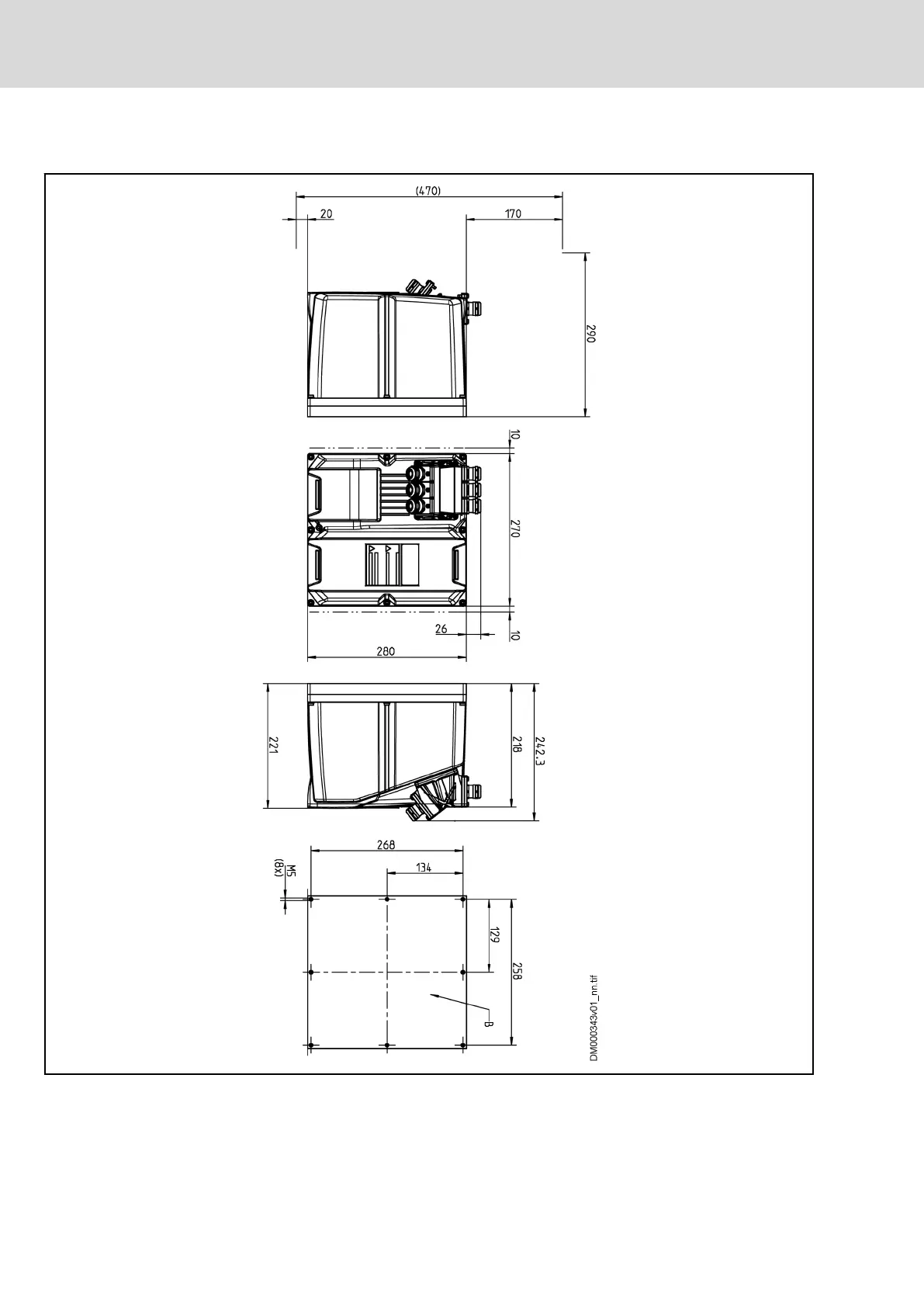

Fig. 5-27: KLC03.1N-B04M7 (thermal interface), dimensions
102/407
Technical data of the components
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
