HCS01.1E-W0054 used as supply unit

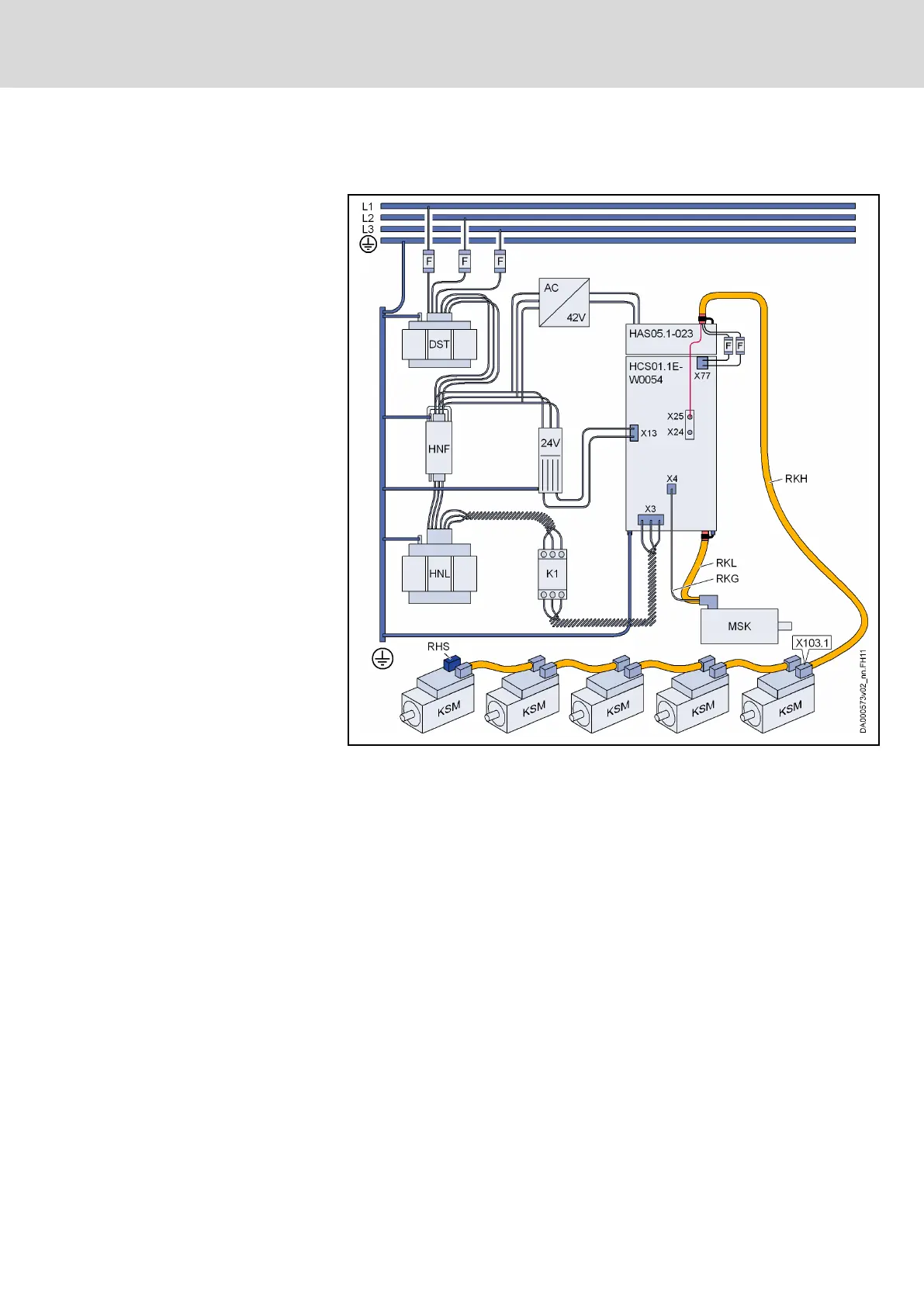

IndraDrive Mi drive system with HCS01.1E-W0054 supply unit
24V 24V supply
AC/42V 42V supply
DST Transformer (optional)
F Fuses
HAS05.1-023 Connection accessories (see chapter 10.9
"HAS05.1-023, HCS01 adapter" on page 310)
HCS01.1E-W0054 Drive controller
HNF Mains filter; depending on the Y-capacitances of
KSM/KMS
HNL Mains choke (optional)
K1 Mains contactor
KSM Motor-integrated servo drive (alternative: KMS near mo‐
tor servo drive and motor)
MSK Servo motor
RHS Terminal connector
RKG Encoder cable
RKH Hybrid cable
RKL Motor cable
X103.1 Connection of hybrid cable at first KSM
Fig. 9-8: IndraDrive Mi system with HCS01.1E-W0054
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
293/407
Mounting and installation
R911335703_Edition 04 Bosch Rexroth AG
