10.7 HAS05.1-020, KMV03 control voltage
Material number: R911372724

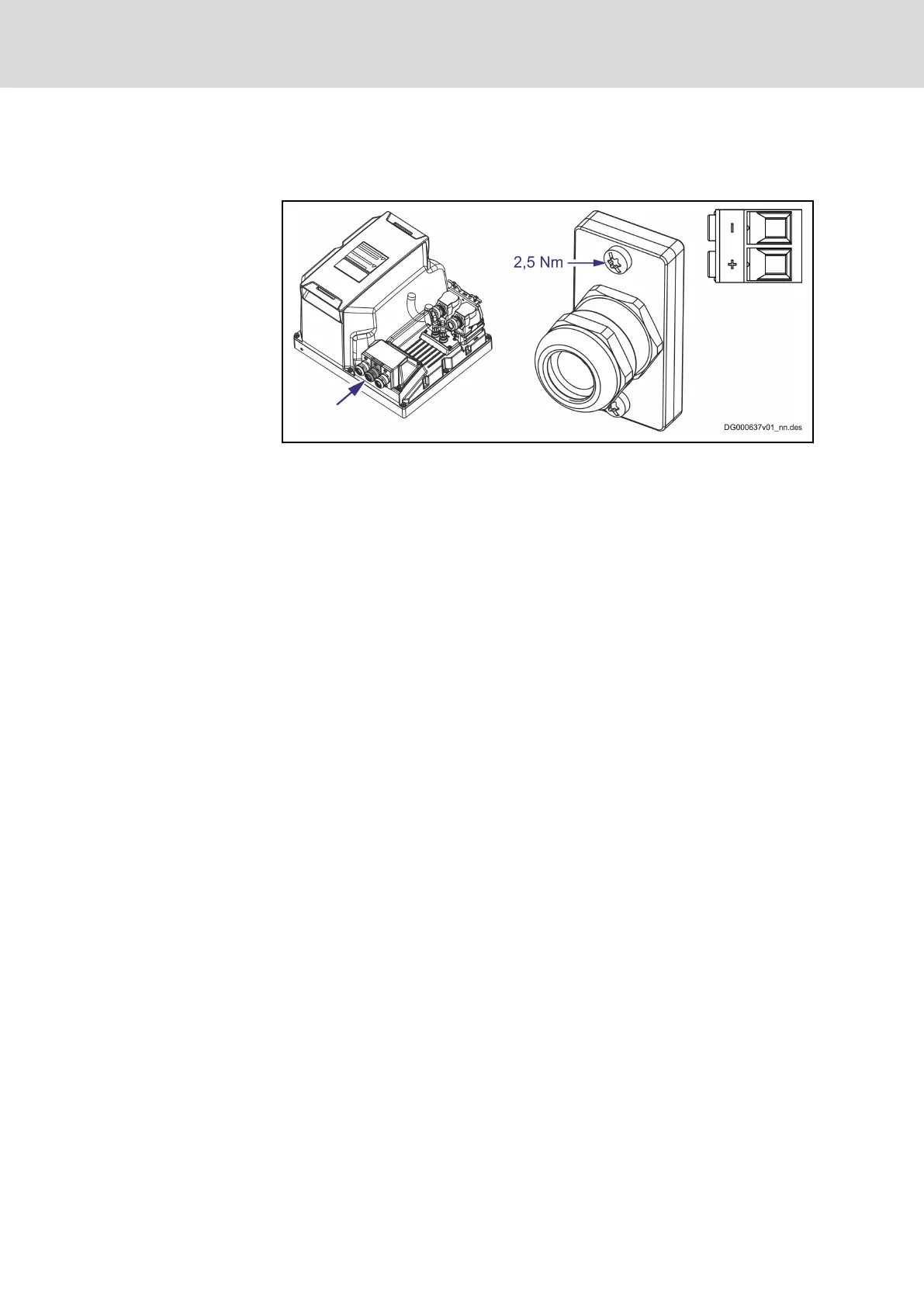

Fig. 10-5: HAS05.1-020, KMV03 control voltage
The accessory contains the following parts:
● Cable gland (plastic, M20, range: 6 … 12 mm)
● Plate incl. screws
● Connector (screw terminal)
306/407
Accessories
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
