LED H25 H26
Use

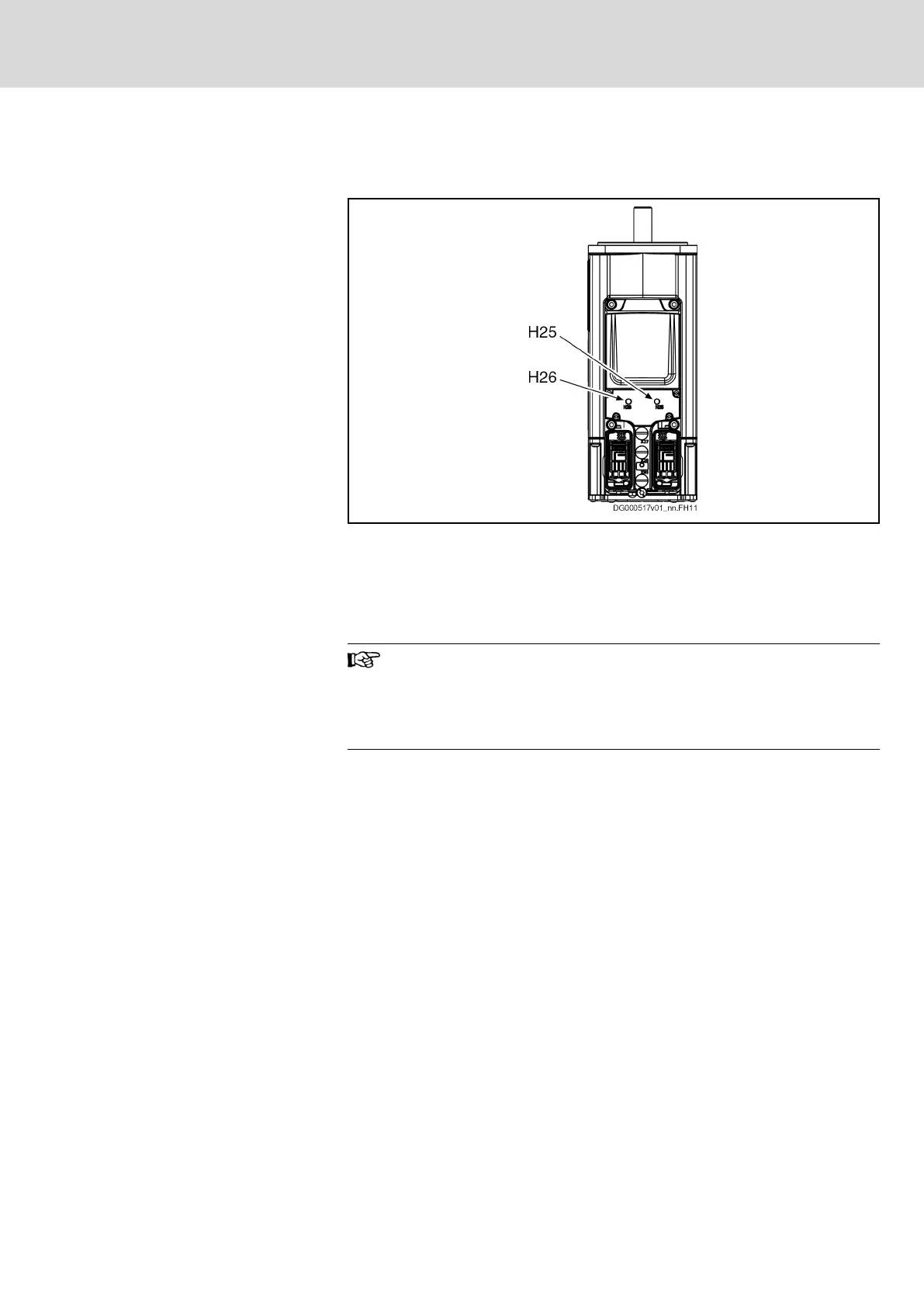

Fig. 11-4: LED H25 H26 (KSM example)
● H25 → safety technology
● H26 → network
The significance of the network displays depends on the field bus
system.
The LEDs provide general diagnostic information for
commissioning or troubleshooting in the scope of safety
technology.
These pieces of status information do not provide any safety-
relevant information in terms of functional safety.
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
347/407
Commissioning, operation, diagnostics and maintenance
R911335703_Edition 04 Bosch Rexroth AG
