6.3.3 X103.1, X103.2, hybrid cable connection point
High electrical voltage! Danger to life by
electric shock!
Do not remove connectors when the component has been powered. Do not
plug in connectors when the component has been powered.
Wait at least 30 minutes after switching off the supply voltages to allow
discharging.
Risk of damage from frequently plugging in
the hybrid cable.
Allowed number of plugging cycles: ≤ 50
A Codings of the connection points to prevent the hybrid cables
from being incorrectly connected

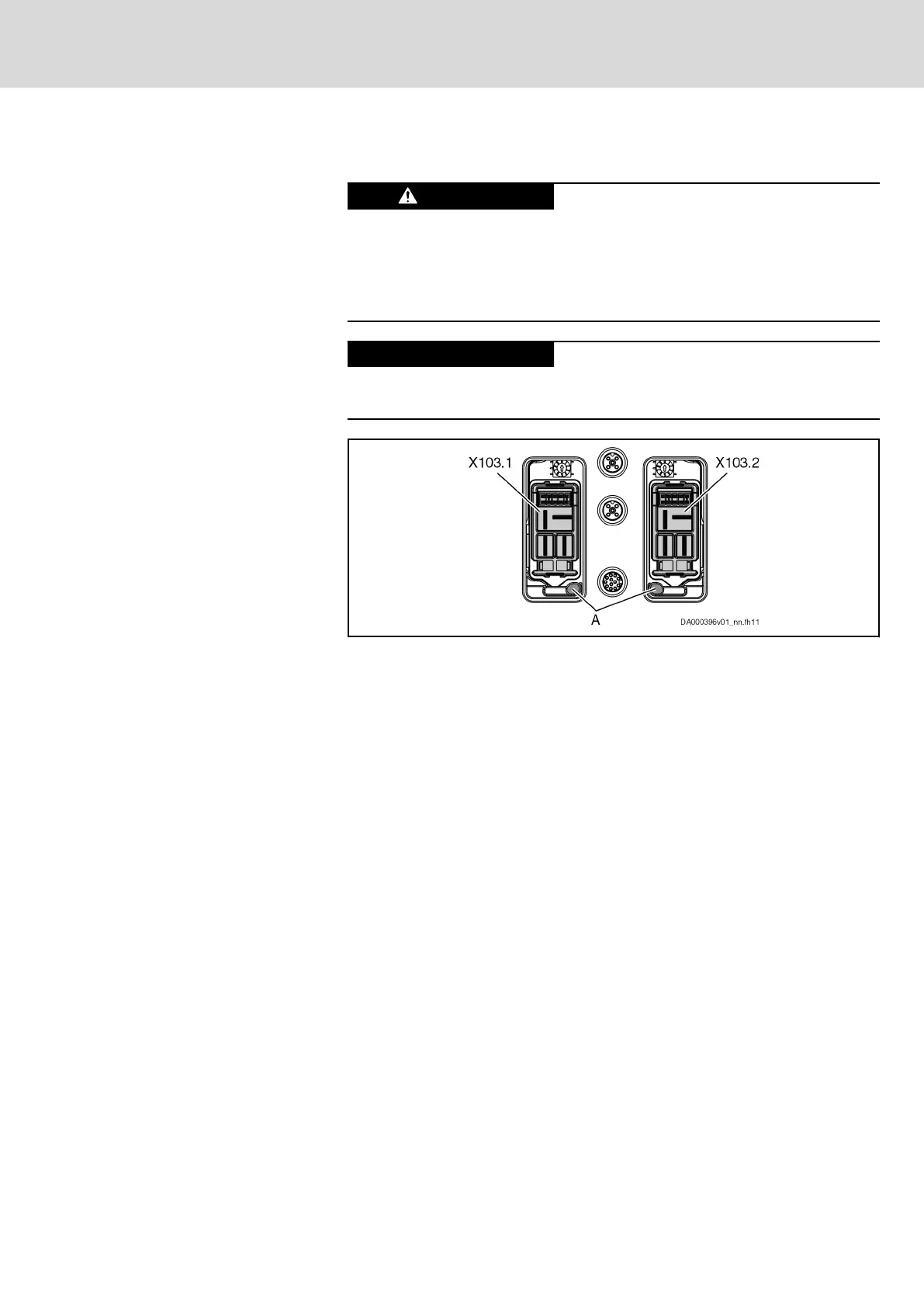

Fig. 6-6: X103.1 and X103.2
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
163/407
Connection points
R911335703_Edition 04 Bosch Rexroth AG
