Bosch rexroth KMS03.1B-A036-P-D7-ET-END-L3-TO-FW User Manual

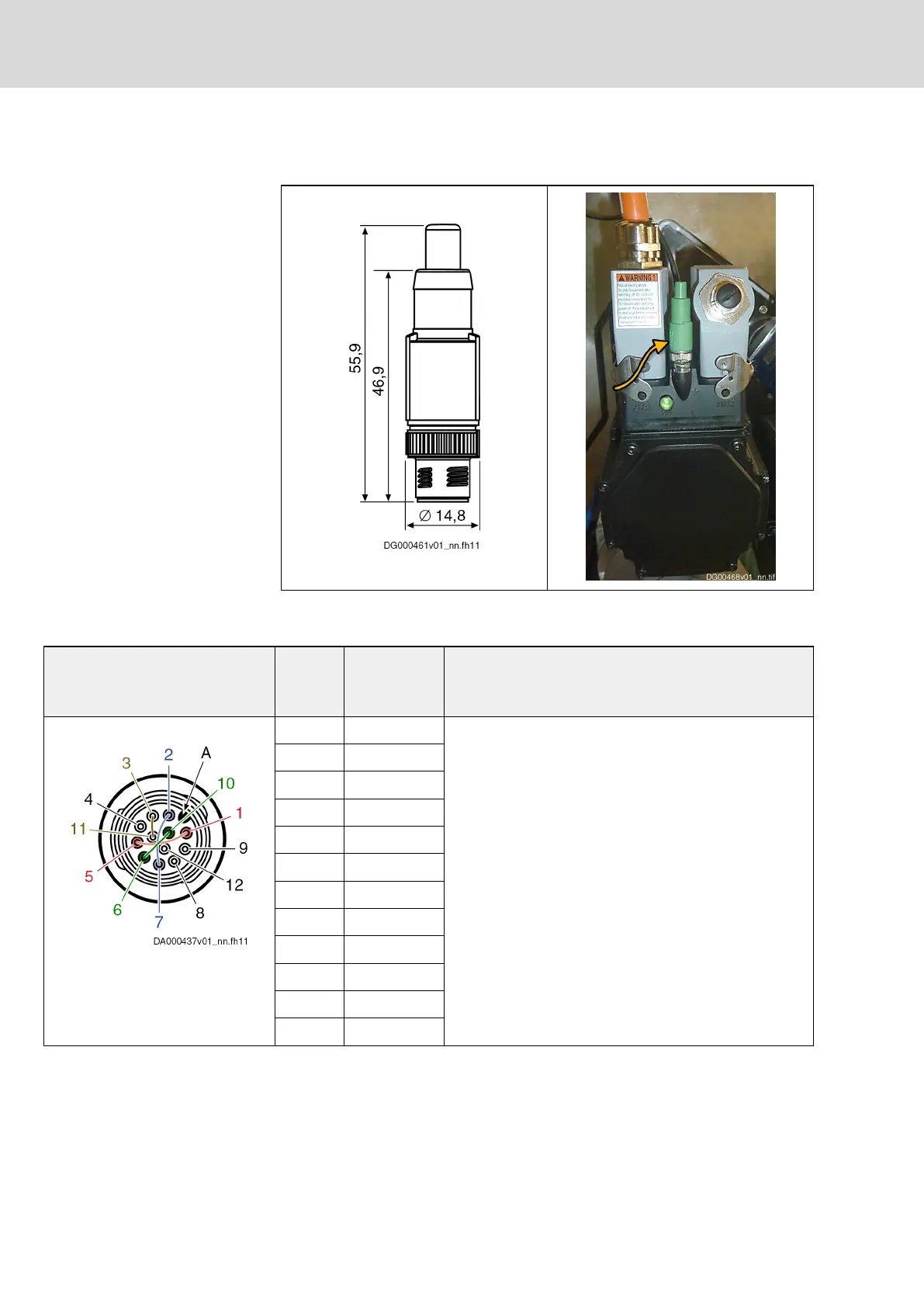

10.19 RBS0023, connector for safety zone node
Tab. 10-27: Connector RBS0023
RBS0023
Connector M12, 12‑pin, A‑coded;
mat. no.: R911335348
Connecti
on
Connected to
connection
Function
A: Coding
1 5 When a KSM/KMS with optional safety technology is to be
a safety zone node within a safety zone, the connection
point X141 must be equipped with the connector
RBS0023.
The connector RBS0023 jumpers the following
connections:
● 5 ↔ 1
● 7 ↔ 2
● 6 ↔ 10
● 11 ↔ 3
KSM/KMS without optional safety technology can be
operated within a safety zone without the connector
RBS0023, because the signals are directly transmitted to
the next safety zone node via X103.1 and X103.2.
2 7
3 11
4 n. c.
5 1
6 10
7 2
8 n. c.
9 n. c.
10 6
11 3
12 n. c.
Tab. 10-28: Function, pin assignment, properties
332/407
Accessories
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
