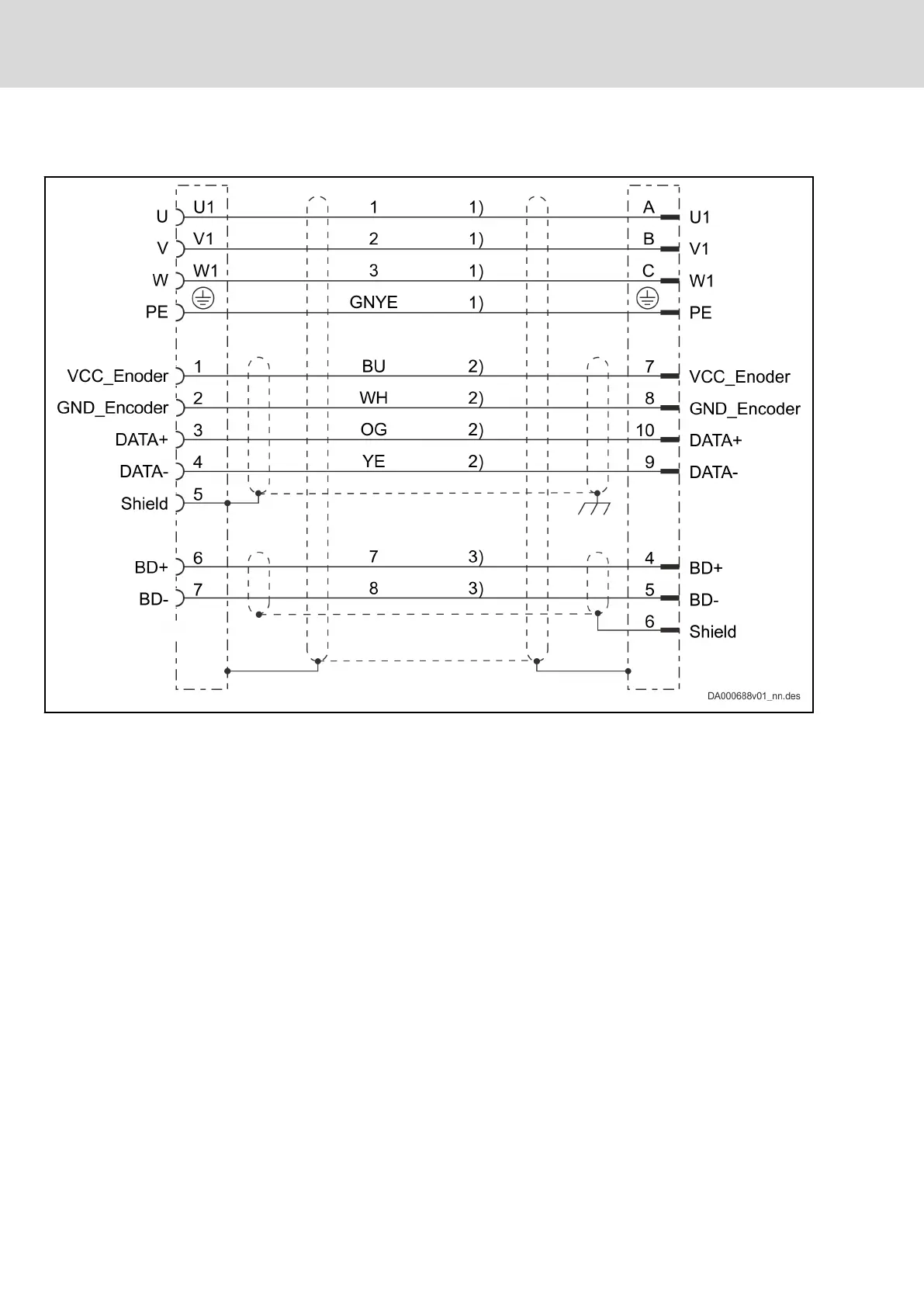

10.23 RH2-030DB, KMS02 - MS2N hybrid motor cable
1) Line cross section ≥ 1.5 mm²; observe allowed cable length
2) Line cross section ≥ 0.2 mm²
3) Line cross section ≥ 0.75 mm²
Fig. 10-30: RH2-030DB
MS2N ↔ KMS02
Hybrid motor cable:
● RH2-030DBB-NN-xxx,x
336/407
Accessories
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
