Design
1 Trademark
2 Type designation
3 Product range
4 Max. supply voltage
5 Maximum speed
6 Continuous torque at standstill
7 Country of manufacture
8 Manufacturing plant
9 CE conformity label
10 UL label
11 2-D bar code
12 Manufacturer code
13 Hardware revision index
14 Degree of protection in accordance with IEC 60529
15 Serial number
16 MAC address (Ethernet ID)
17 Mass
18 Insulation system
19 Insulation class according to EN 60085
20 Ambient conditions according to UL50/50E
21 Holding brake torque (optional)
22 Rated power (t > 10 min)
23 Rated input voltage, power (UL)
24 Company address
25 Maximum bypass current (UL)
26 Ambient temperature during operation
27 Short circuit current rating (UL); SCCR
28 Cooling type
29 Rated power consumption control voltage input at U
N3
(UL)
30 Rated control voltage input (UL)
31 Parts number
32 Production date

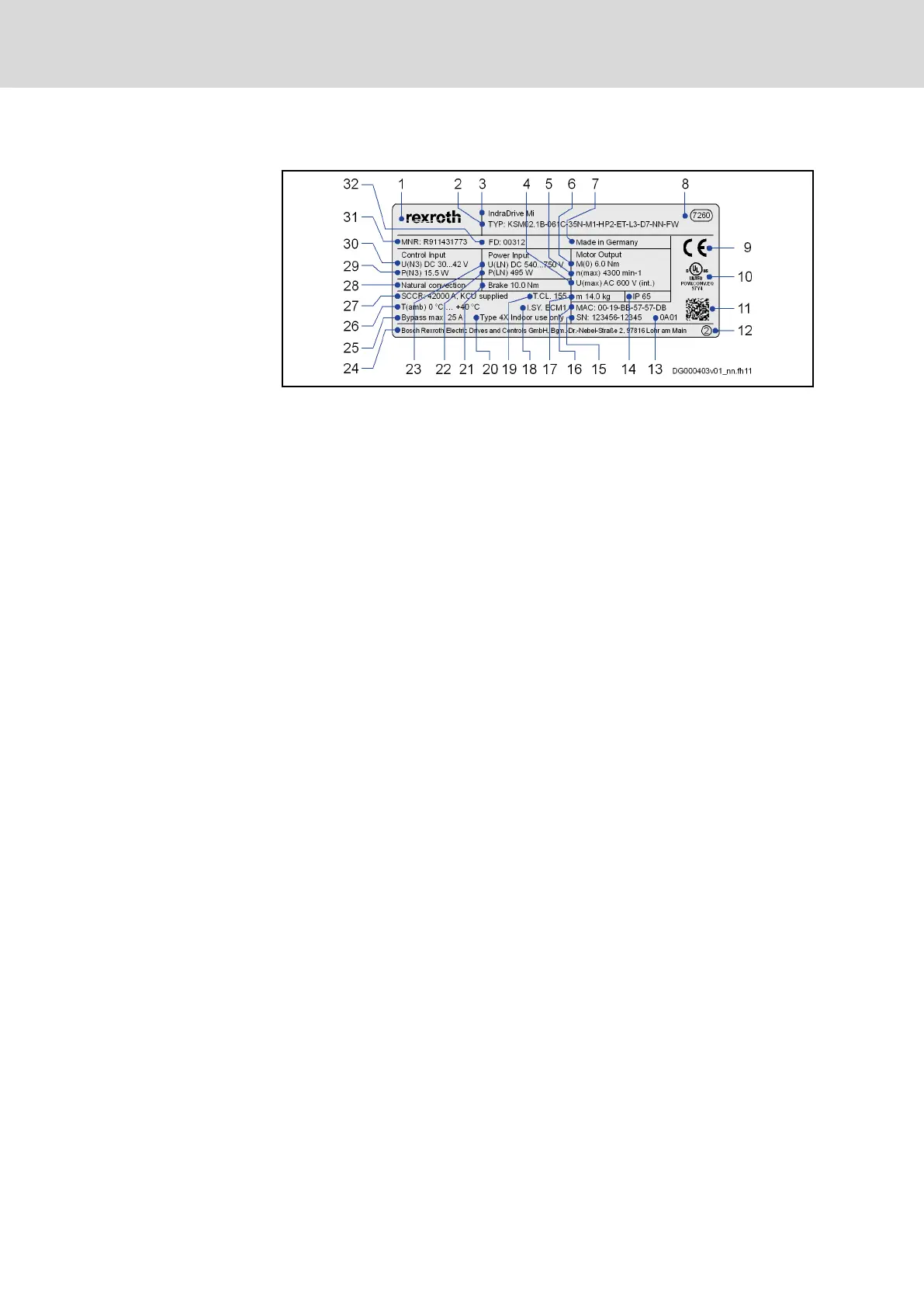

Fig. 8-2: Type Plate KSM02
System type plate
chapter 8.2.7 "System type plate (module of configured variants)" on page
273
262/407
Identification
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
