5.9.5 Interconnection diagrams for ready-made hybrid cables incl. commu‐
nication
KCU - KSM/KMS
Applies to: RKH0311, RKH0411, RKH0511
KCU plug-in connector Bulk cable KSM/KMS plug-in
connector
RHS0005/C03 REH0800
RHS0011/C03
1)
RHS0016/C03
2)

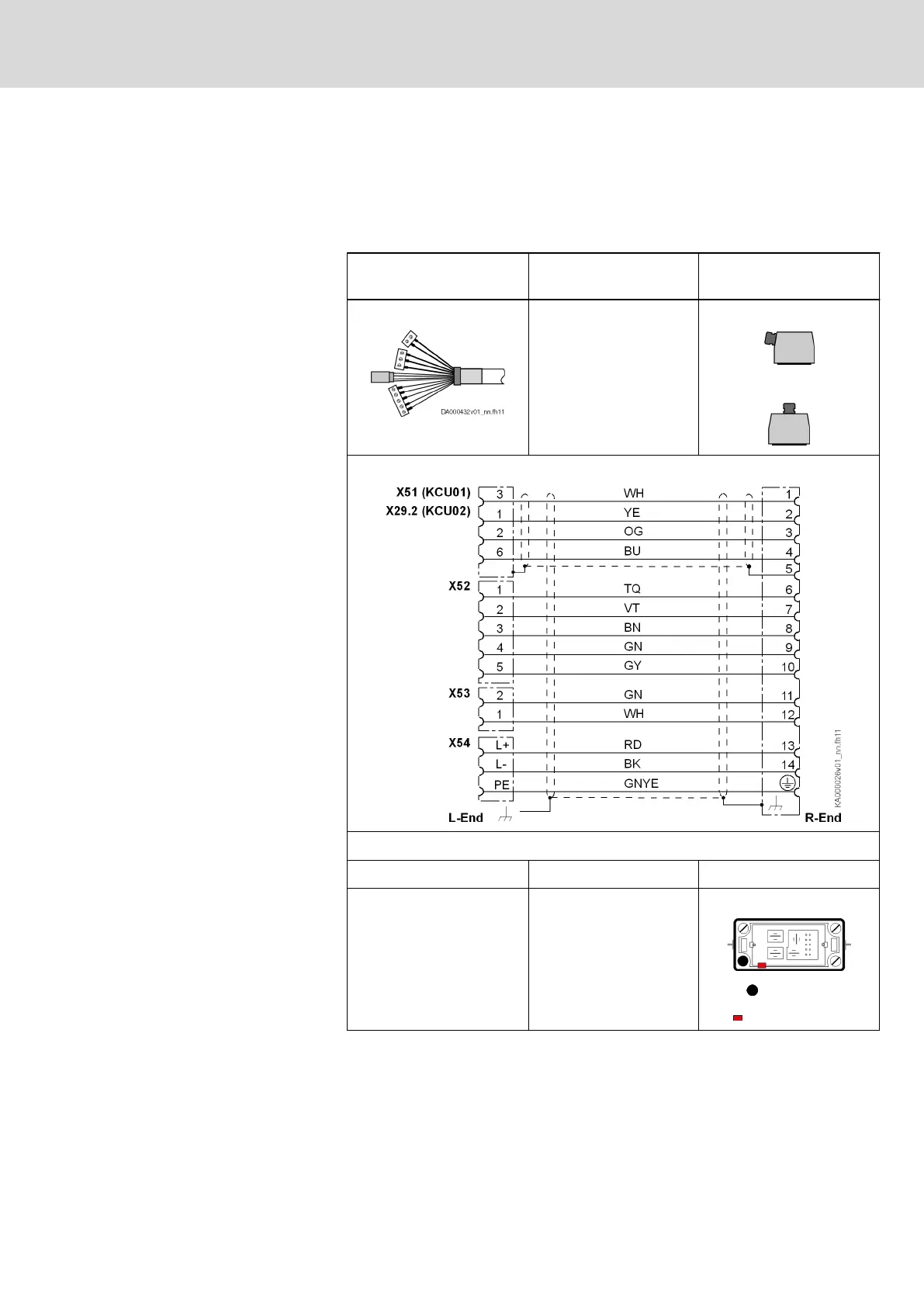

Interconnection diagram
Coding at KSM/KMS plug-in connector
4)
Cable type L-End R-End
RKH0311
RKH0411
RKH0511
RHS0005 RHS0011, RHS0016
Locking pin
Coding profile
5)
1) R-End plug-in connector for RKH0311, RKH0411
2) R-End plug-in connector for RKH0511
4) Picture shows coding with view to mating side
5) The coding profile ensures the downward compatibility of the
hybrid cable for KSM01/KMS01
Tab. 5-25: Parts of ready-made hybrid cables from KCU to KSM/KMS
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
