The cable designation is made up of:
● Cable number: e.g., RKH0121
● Cable length: e.g., 30.5 m
Locking pins at connectors and
connection points

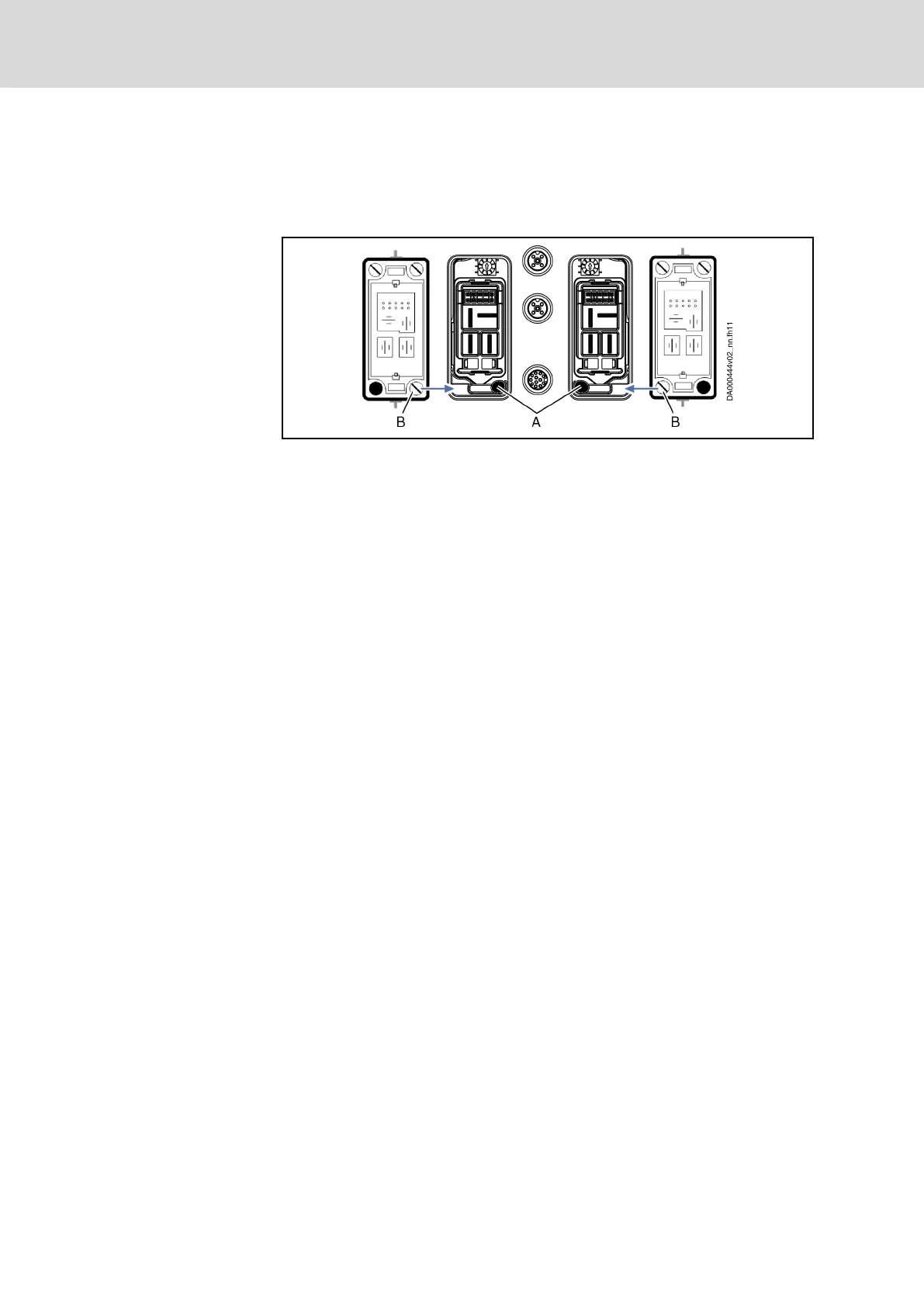

A Locking pins at connection points X103.1 and X103.2
B Locking pin at connector of hybrid cable
Fig. 5-37: Locking pins
Locking pins at connectors and connection points ensure that hybrid cables
run in the right direction. It is not allowed to subsequently invert the direction
of a hybrid cable by removing the locking pins. Otherwise, the signals for E-
Stop and safety technology would not be valid.
When mounting hybrid cables in cable ducts or flexible cable tracks, make
sure that the direction of the hybrid cables is correct.
122/407
Technical data of the components
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
