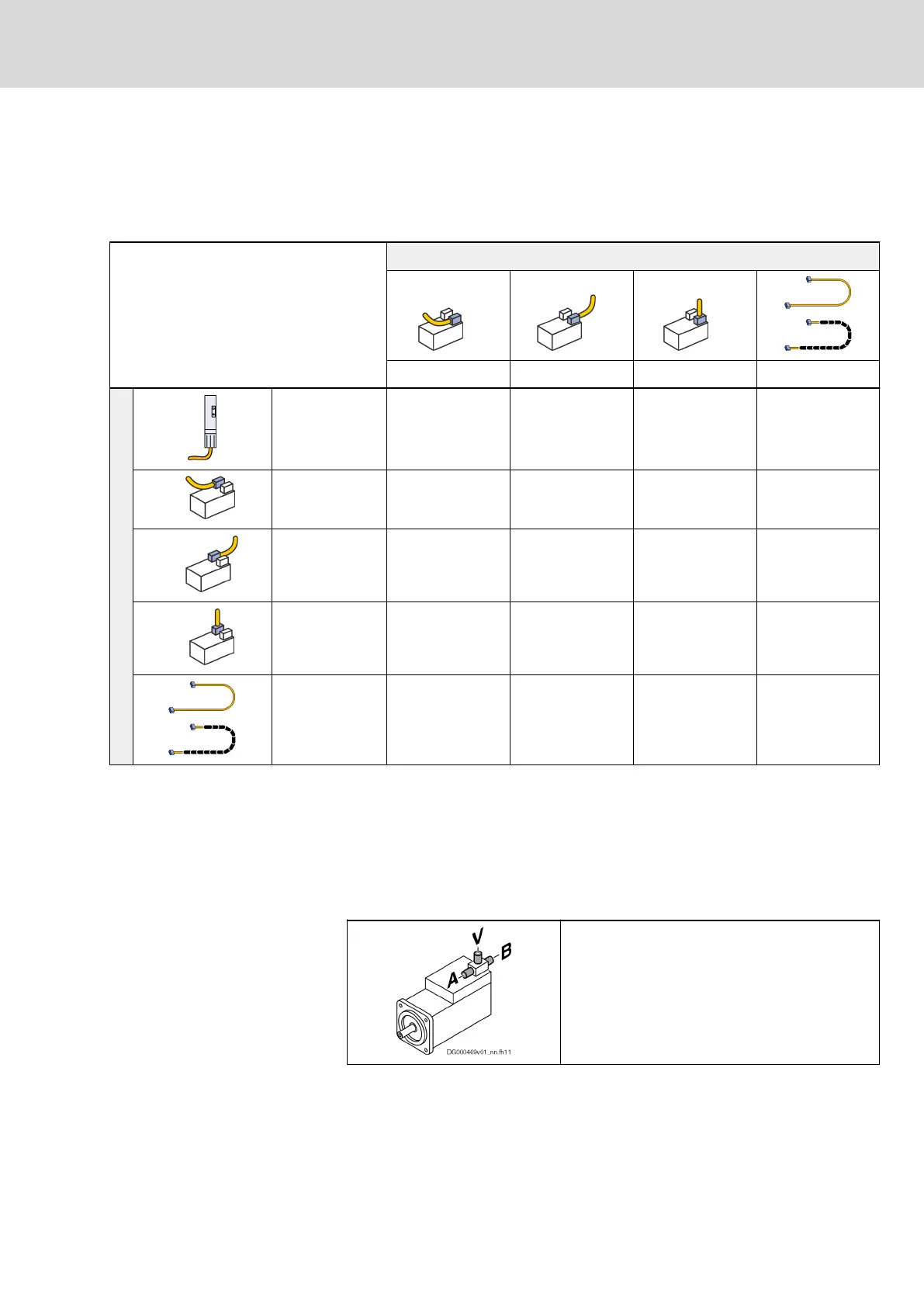

5.9.4 Selecting RKH hybrid cable without communication
Use the table below to select an RKH hybrid cable for the appropriate
connection with different outgoing directions from connection point X103.1 or
X103.2.
Target
1) 2)
3)
X103.1 X103.1 X103.1 RKH0710
Source
KCU02 RKH0321 RKH0421 RKH0521 RKH0521
1)
X103.2 RKH0021 RKH0121 RKH0223 RKH0223
2)
X103.2 RKH0120 RKH0220 RKH0225 RKH0225
3)
X103.2 RKH0222 RKH0224 RKH0620 RKH0620
RKH0710 RKH0222 RKH0224 RKH0620
-
4)
1) Outgoing direction "A"
2) Outgoing direction "B"
3) Outgoing direction "V"
4) To interconnect two RKH0710 cables, use a short RKH0620
cable as an intermediate piece
Tab. 5-23: RKH hybrid cable without communication
Hybrid cable outgoing direction:
● A: horizontal (towards the housing)
● B: horizontal (away from the housing)
● V: vertical
Tab. 5-24: Hybrid cable outgoing directions
Identifying the hybrid cables
Hybrid cables are marked according to the following example:
RKH0121/030,5
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
121/407
Technical data of the components
R911335703_Edition 04 Bosch Rexroth AG
