6.6 KMV03 connection points

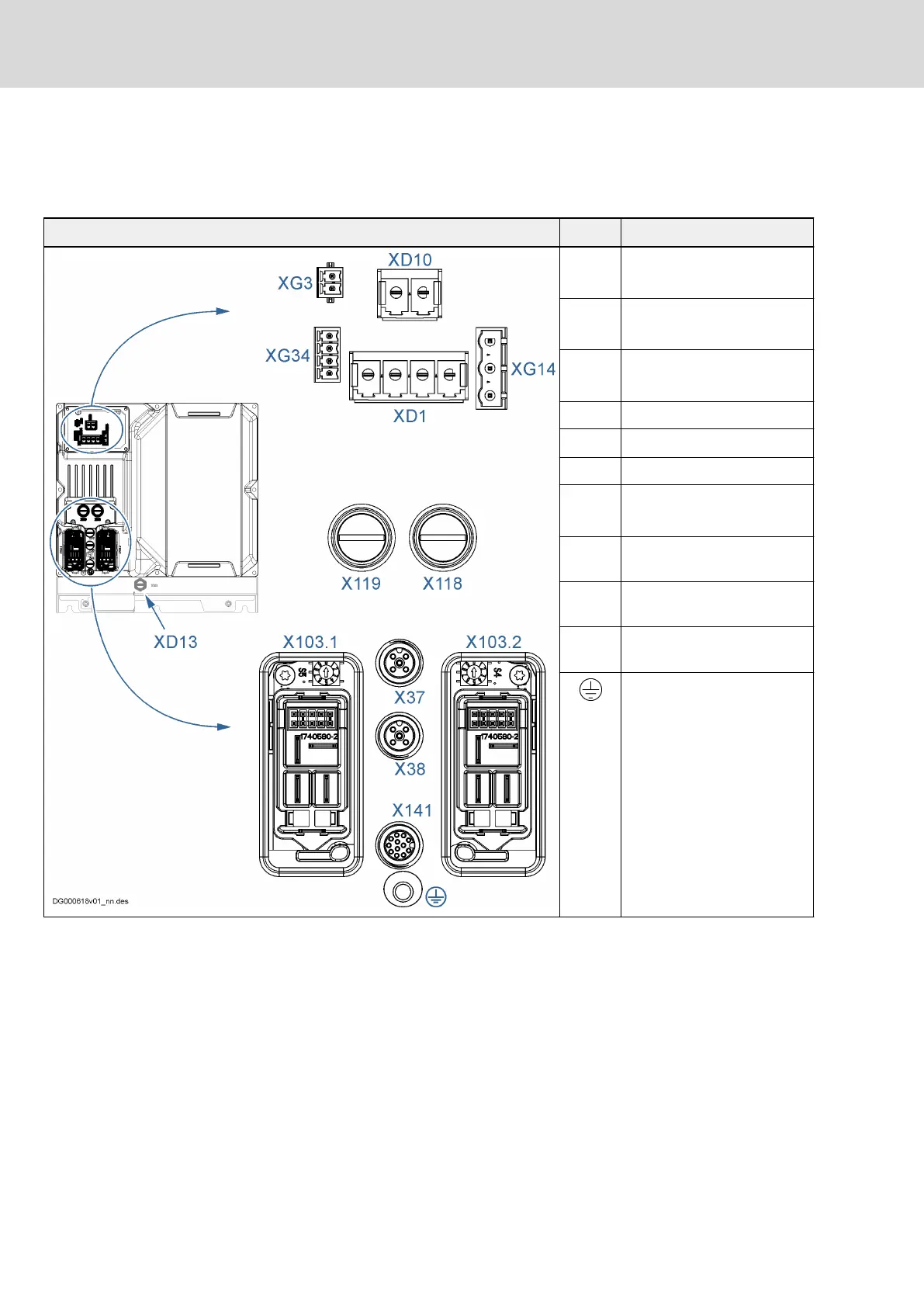

6.6.1 Positions of the connection points
Figure Element Significance
X37
X38
Digital inputs/outputs
X103.1
X103.2
Hybrid cable
X118
X119
External communication
X141 Safety technology (optional)
XD1
1)
Mains voltage
XD10 Control voltage
XD13
3)
KMV03.1R-Wxxxx:
Fan
XG3
2)
Mains choke temperature
contact
XG14
2)
Mains voltage
synchronization
XG34
1)
Mains contactor control and
feedback contacts (KNK03)
Second connection point of
equipment grounding
conductor
1) RKH0800 cable connects KMV to KNK
2) RKH0801 cable connects KMV to KNK
3) RKB0054 cable
Tab. 6-52: KMV03 connection points
