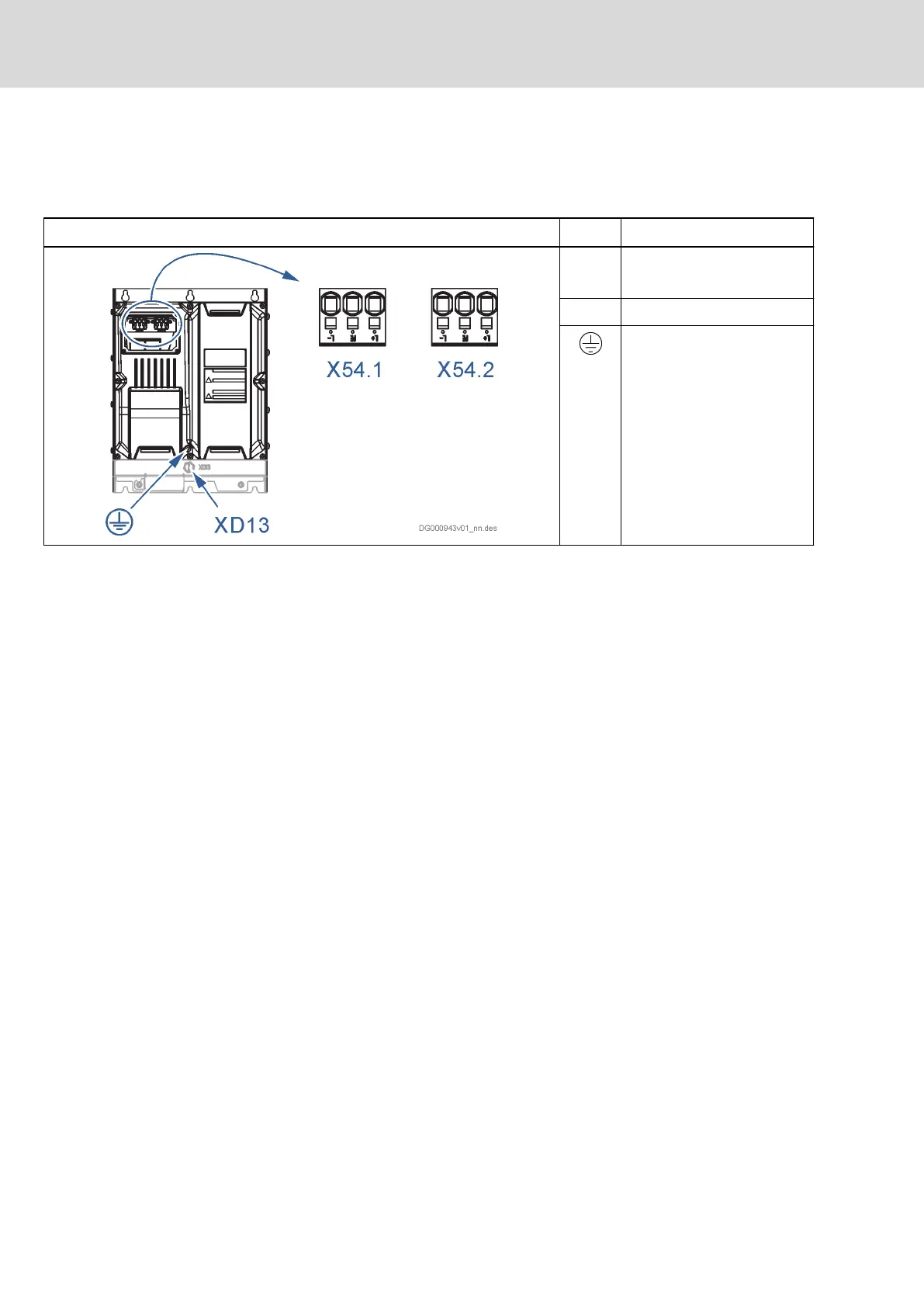

6.8 KLC03 connection points
6.8.1 Positions of the connection points
Figure Element Significance
X54.1
X54.2
DC bus
XD13 Fan
Second connection point of
equipment grounding
conductor
Tab. 6-92: KLC03 connection points
6.8.2 Second equipment grounding conductor connection point
See chapter 6.3.8 "Second connection point of equipment grounding
conductor" on page 178
6.8.3 XD13, fan power supply
Connection point for RKB0054 cable.
See chapter 10.17 "RKB0054, fan cable" on page 330.
214/407
Connection points
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
