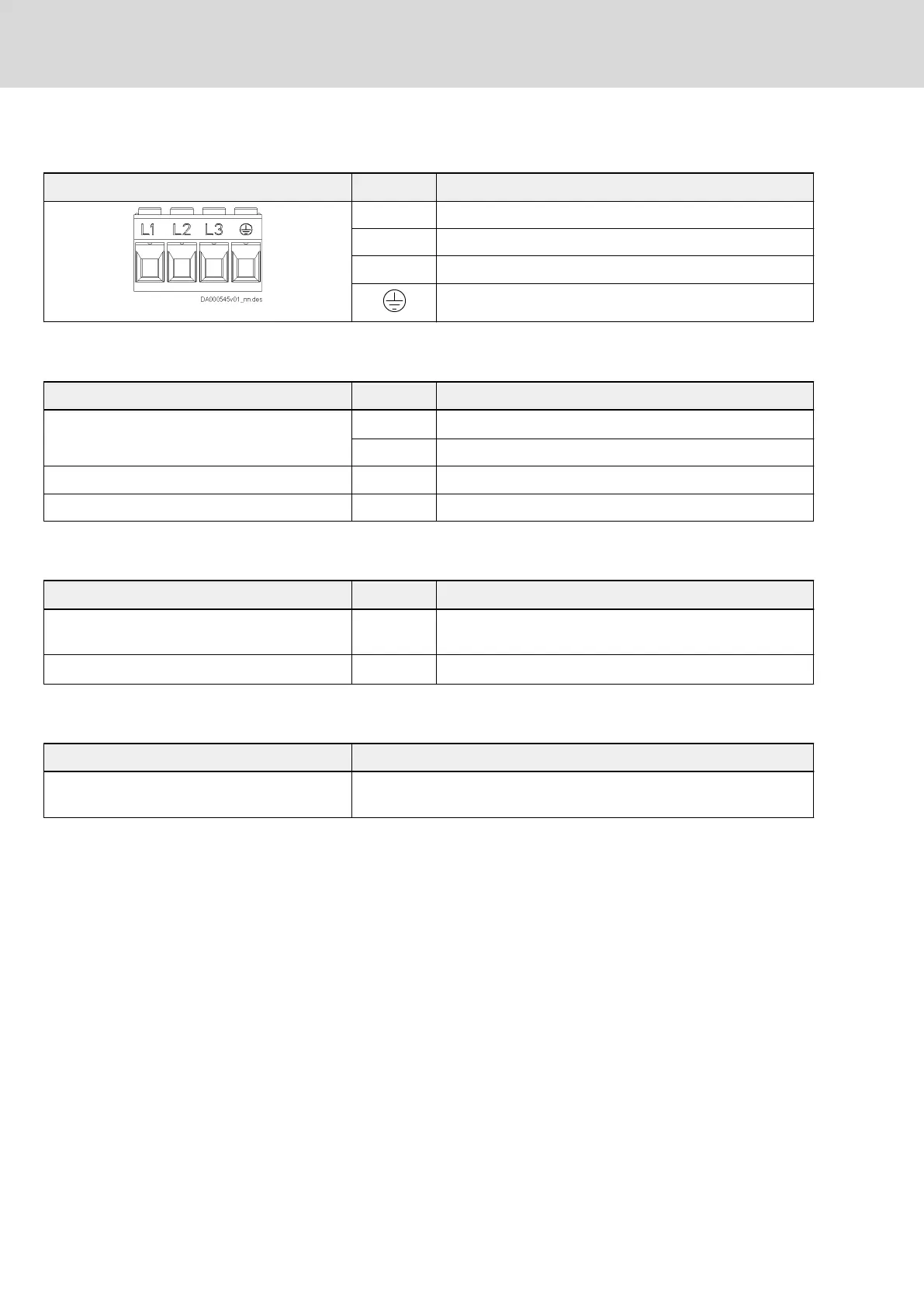

6.7.3 XD1, mains voltage
View Connection Function
L1 Input for supply with mains voltage
L2 Input for supply with mains voltage
L3 Input for supply with mains voltage
Equipment grounding conductor
Tab. 6-72: Pin assignment
Mechanical data
Screw terminal (connector) Unit max.
Connection cable
Stranded wire
mm
2
6
AWG 8
Stripped length mm 10
Tightening torque Nm 0.8
Tab. 6-73: Mechanical data
Electrical data
Screw terminal (connector) Unit Value
Occurring current load and minimum required
connection cross section
A See technical data (I
L_cont
, I
L_max
and A
LN
)
Occurring voltage load V See technical data (U
LN
)
Tab. 6-74: Electrical data
Cables
Description Value
Order type Cable cannot be ordered. Customer assembles the cable (HAS05.1-019
accessories required).
Tab. 6-75: Cables
208/407
Connection points
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
