5.5.2 Mechanics and mounting

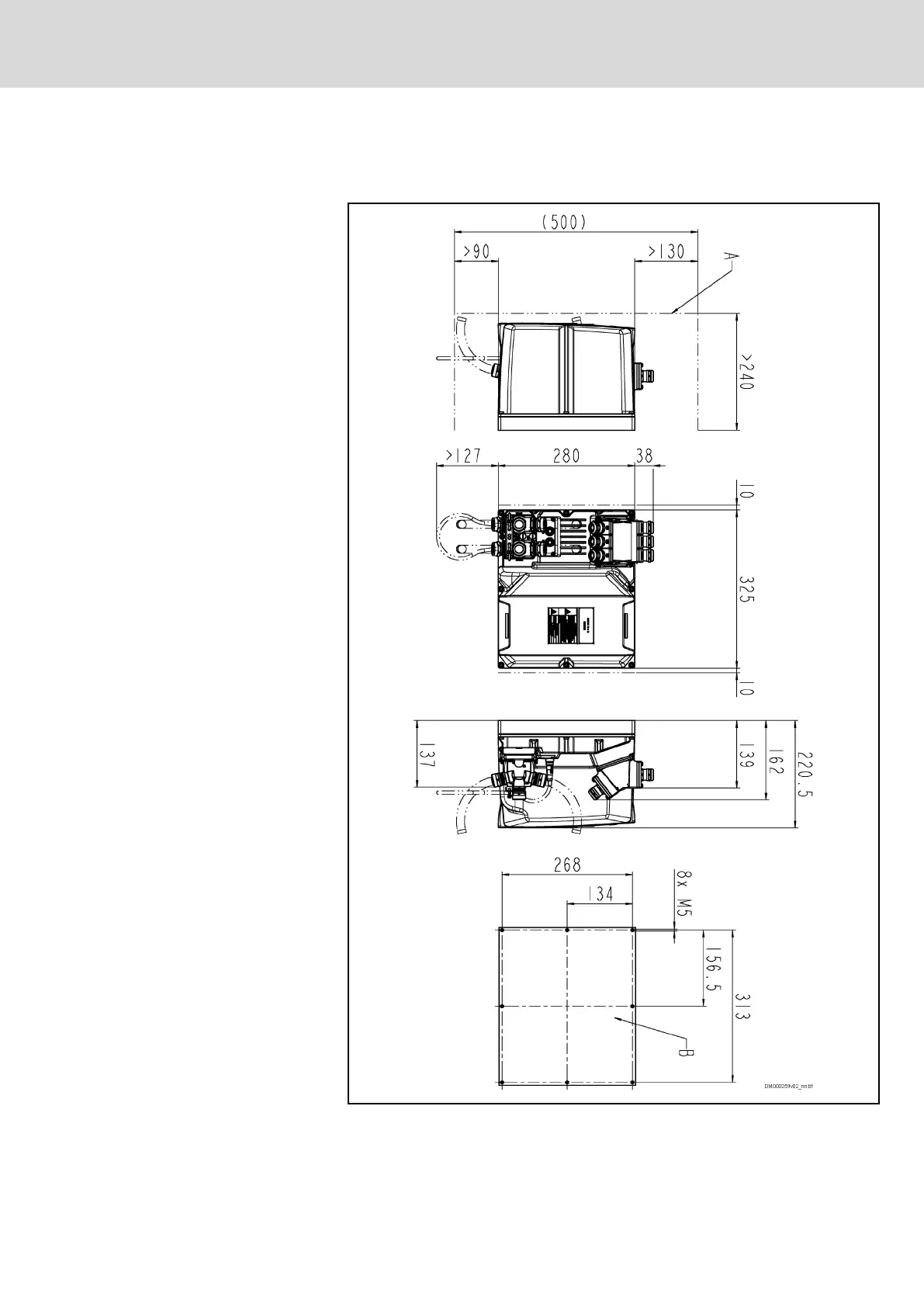

KMV03.1R-B/Ixxxx dimensional drawing (thermal interface)
A Minimum mounting clearance
B Boring dimensions
Fig. 5-24: KMV03.1R-B/Ixxxx (thermal interface), dimensions
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
91/407
Technical data of the components
R911335703_Edition 04 Bosch Rexroth AG
