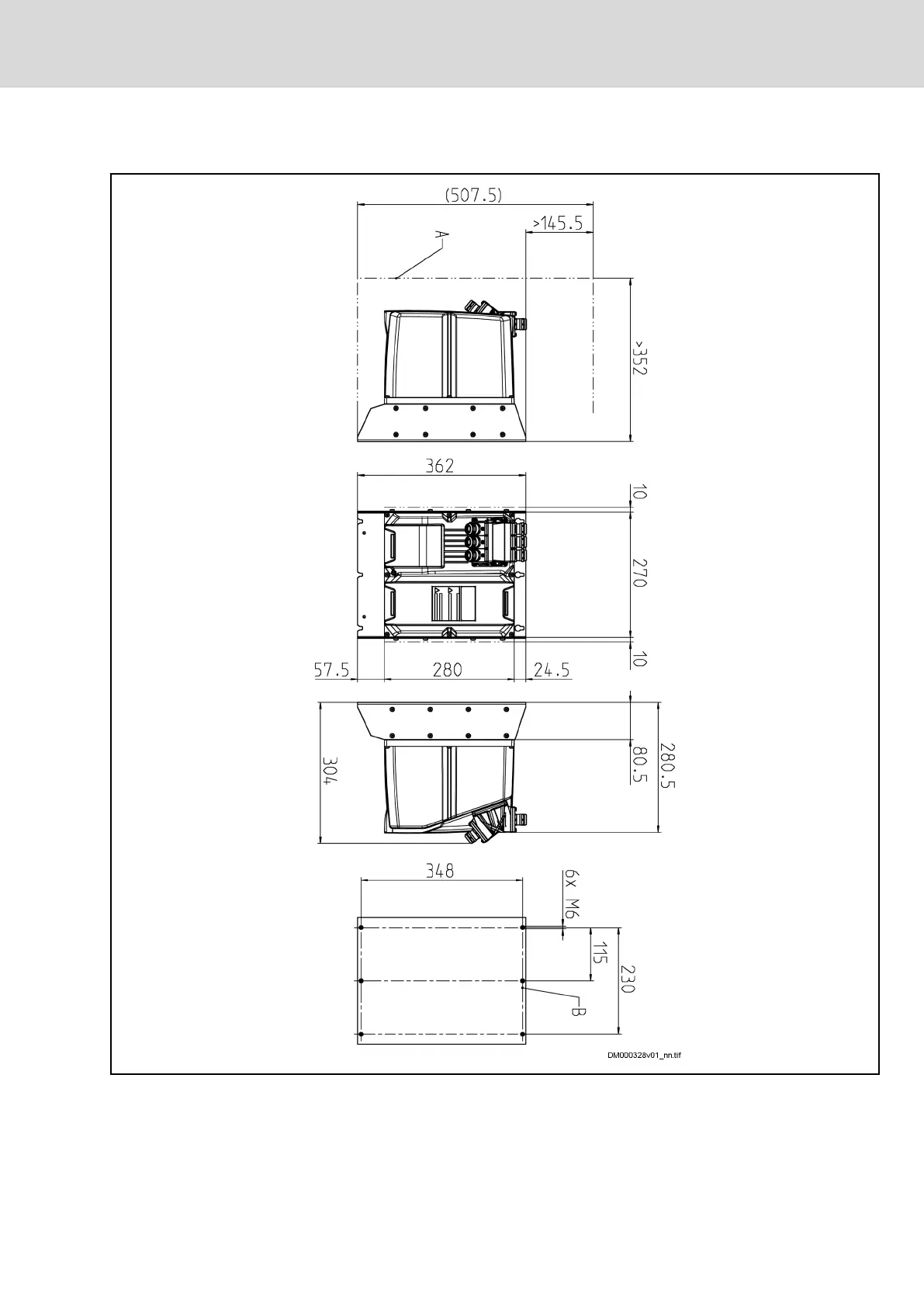

5.7.3 KNK03.1A-NR-Axxxx dimensional drawing (natural convection)
A Minimum mounting clearance
B Boring dimensions
Fig. 5-31: KNK03.1A-NR-Axxxx (natural convection), dimensions
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
107/407
Technical data of the components
R911335703_Edition 04 Bosch Rexroth AG
