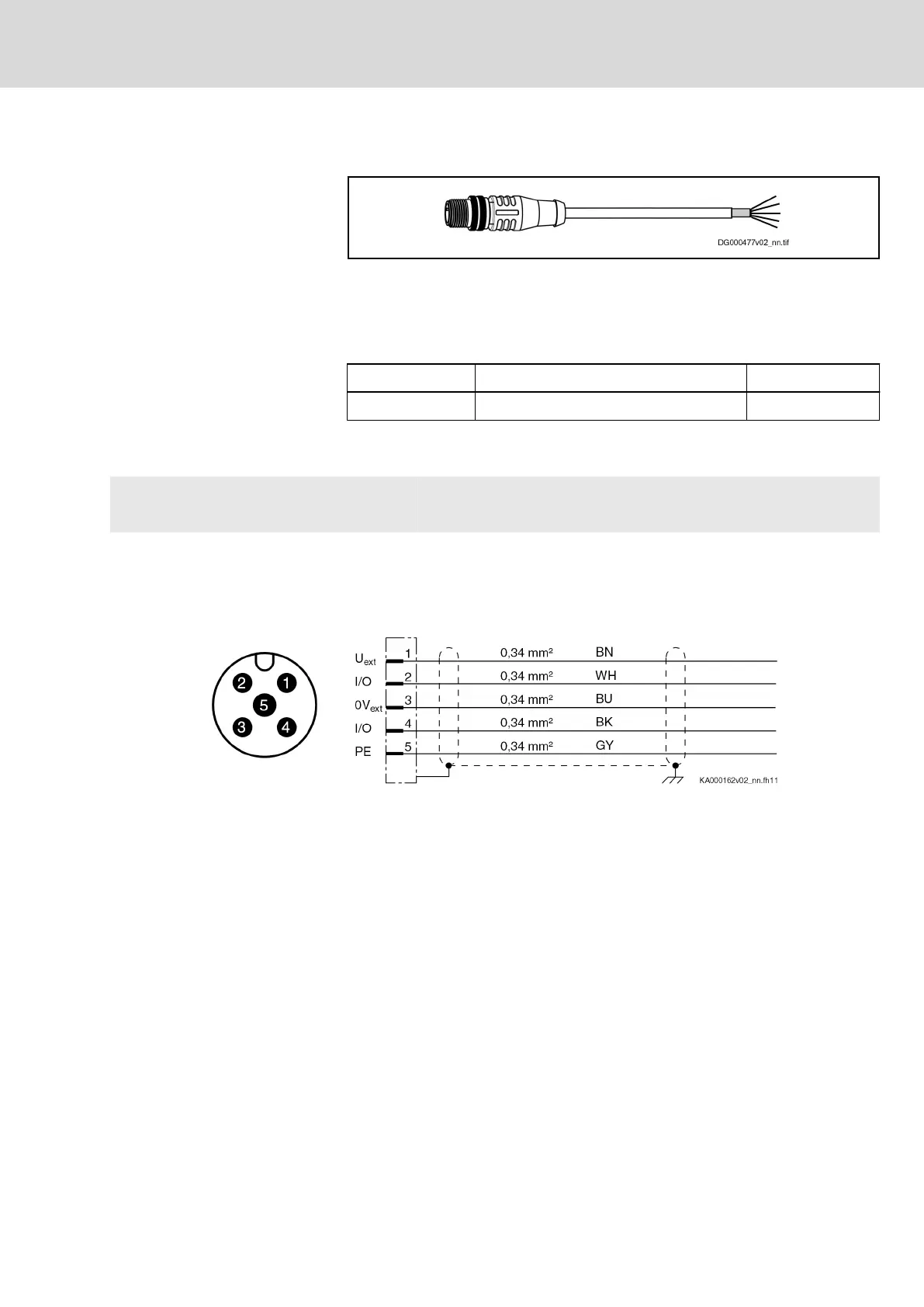

10.18 RKS0010, Interface Cable
Fig. 10-26: RKS0010
Assignment
Cable to connect digital I/Os to X37 or X38.
Length That Can Be Ordered, Or‐
der Code, Material Number
Length Order code Material number
3 m RKS0010 / 03,0 R911322843
Tab. 10-25: RKB0013
RKS0010
Plug-in connector Bulk cable Plug-in connector
M12, A‑coded, shielded n.s. Open ends
Interconnection diagram
Tab. 10-26: Parts RKS0010
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
331/407
Accessories
R911335703_Edition 04 Bosch Rexroth AG
