10.20 RLS0725, KMS03 motor power cable connector

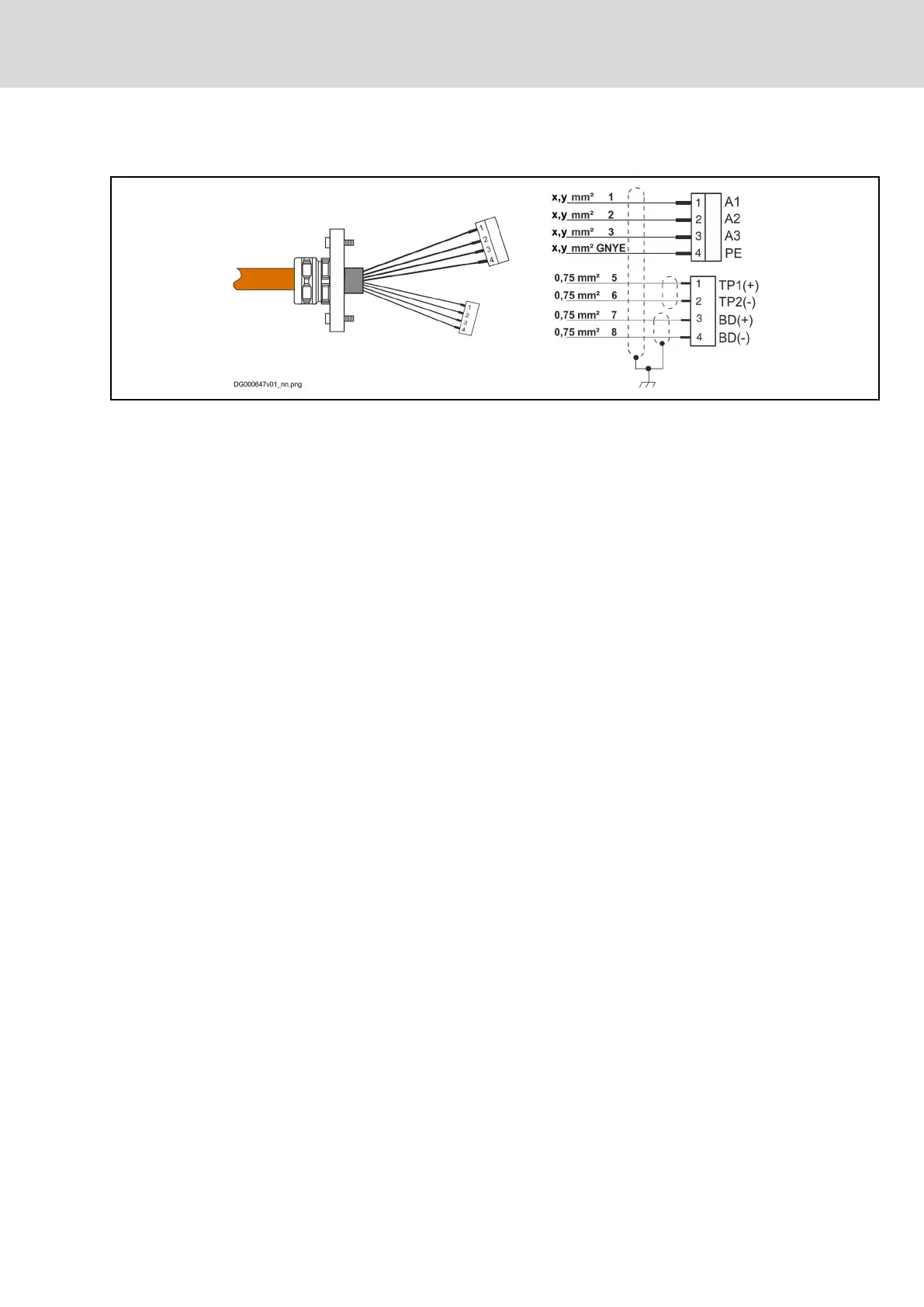

Fig. 10-27: RLS0725
MS2N (60K) ↔ KMS03
Motor power cable:
● M17, 1.0 mm
2
: RL2-009CB-NN-xxx,x
● M23, 1.0 mm
2
: RL2-029CB-NN-xxx,x
● M40, 1.5 mm
2
: RL2-049DB-NN-xxx,x
● M40, 2.5 mm
2
: RL2-049EB-NN-xxx,x
MS2N (100K) ↔ KMS03
Motor power cable:
● M17, 1.0 mm
2
: RL2-009CB-NN-xxx,x
● M23, 1.0 mm
2
: RL2-029CB-NN-xxx,x
● M23, 1.5 mm
2
: RL2-029DB-NN-xxx,x
● M40, 1.5 mm
2
: RL2-049DB-NN-xxx,x
● M40, 2.5 mm
2
: RL2-049EB-NN-xxx,x
● M58, 2.5 mm
2
: RL2-069EB-NN-xxx,x
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
333/407
Accessories
R911335703_Edition 04 Bosch Rexroth AG
